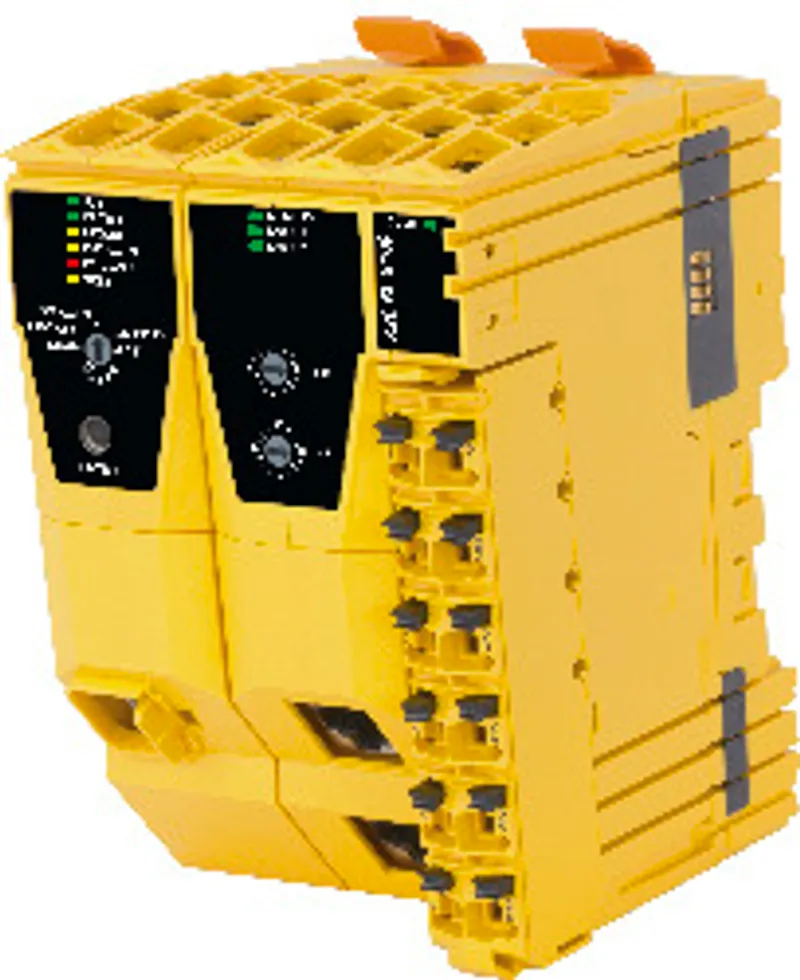

B&R X20SL8100 – Interfaces, POWERLINK

Name: B&R X20SL8100 – Interfaces, POWERLINK
Brand: B&R
SKU: X20SL8100

MPN: X20SL8100 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	CPUs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	190 kg

Shipping & availability

When can X20SL8100 be shipped?

X20SL8100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X20SL8100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X20SL8100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20SL8100, subject to availability and destination.

• openSAFETY manager for up to 100 SafeNODEs

• Flexibly programmable using Automation Studio / SafeDESIGNER

• Innovative management of safe machine options (SafeOPTION)

• Parameter and configuration management

The module is equipped with SafeLOGIC functionality that allows it to safely execute applications designed in SafeDESIGNER. The module can be used in safety-related applications up to PL e or SIL 3.

In addition, the module coordinates the safety-related communication of all modules involved in the application. In this context, the module also monitors the configuration of these modules and carries out autonomous parameter downloads to the modules whenever necessary. This guarantees a consistent and correct module configuration in the network from a safety standpoint in all scenarios involving module replacement and service. These services are performed by the SafeLOGIC controller.

Accessories

Required accessories (order separately)

X20MK0223

Accessories — X20 SafeKEY, 8 MB, for the X20SL81xx series, exclusively for mapp Safety, range of license functions determined via a package-based licensi…

Specifications

Short description

Interfaces	POWERLINK
System module	CPU

General information

Diagnostics – CPU function	Yes, using LED status indicator
Diagnostics – POWERLINK	Yes, using LED status indicator
Diagnostics – SafeKEY	Yes, using LED status indicator
Support – Dynamic node allocation (DNA)	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – Functional safety	cULus FSPC E361559; Energy and industrial systems; Certified for functional safety; ANSI UL 1998:2013
Certifications – Functional safety	IEC 61508, up to SIL 3 ; IEC 62061, up to SIL 3 ; ISO 13849-1, up to Cat. 4 / PL e ; IEC 61511, up to SIL 3
Certifications – Functional safety	EN 50156-1
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment; cULus E537419; Engine generator controller
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: A (0 to 45°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC21B ; Temperature: 5 - 45°C; Vibration: 0.7 g; EMC: Bridge and open deck
B&R ID code	0xDD61
Cooling	Fanless
Status indicators	CPU function, POWERLINK, SafeKEY
Power consumption	4.3 W
Additional power dissipation caused by actuators (resistive) [W]	-

Safety characteristics

Note	See section "Safety characteristics".

Limit values for SafeDESIGNER application

Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – FB instances	4096
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Marker memory	262,144 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Stack memory	32,768 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Memory for safe input data	6144 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Memory for safe output data	2048 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Memory for standard input data	1024 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Memory for standard output data	1024 bytes
Max. resources available for SafeDESIGNER info window entries " data-placement="top" data-html="true" data-container="body" data-content="For a parameter description, see section "Message window" in the SafeDESIGNER documentation."> – Marker count	16,382
Additional SafeDESIGNER limit values – Max. number of function block types	512
Additional SafeDESIGNER limit values – Max. number of force variables	64
Additional SafeDESIGNER limit values – Max. number of variable with variable status	1023

Input SL / BC / X2X Link power supply

Input voltage	24 VDC -15% / +20%
Input current	Max. 0.25 A
Fuse	-
Reverse polarity protection	Yes

Interfaces

Transfer – Physical layer	100BASE-TX
Transfer – Half-duplex	Yes
Transfer – Full-duplex	No
Transfer – Autonegotiation	Yes
Transfer – Auto-MDI/MDIX	Yes
Min. cycle time " data-placement="top" data-html="true" data-container="body" data-content="The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring."> – Fieldbus	200 µs
Fieldbus	POWERLINK controlled node
Variant	2x shielded RJ45 port (hub)
Line length	Max. 100 m between 2 nodes (segment length)
Transfer rate	100 Mbit/s

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 45°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	62.5 +0.2 mm
Dimensions – Height	99 mm
Dimensions – Depth	75 mm
Note	Order SafeKEY and SafeLOGIC range of functions using the X20MK configurator.; X20 end cover plate (right) included in delivery; 12-pin X20 terminal block, safety-keyed, included in delivery; SafeKEY cover included in delivery
Weight	190 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheets SafeIO and SafeLogic	PDF · 28 MB · 3.5.0 (09/02/2026) - EN
Information sheet SafeLOGIC	PDF · 553 KB · 2.00 (11/19/2013)
Integrated safety technology user's manual	PDF · 46 MB · 6.8.0 (09/02/2026) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20SL810x

ZIP · 2 MB · 1.10 (04/14/2021)

Certificates (19)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
64331_A1 BV Certificate of Compliance X20	PDF · 1 MB · 2026_05 (05/05/2026)
ABS Certificate of Product Design Assessment - X20 IO Series	PDF · 454 KB · 2.00 (01/13/2025)
CCS Type Approval Certificate - X20	PDF · 285 KB · 1.00 (06/28/2024)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
E537419 UL Certificate of Compliance X20	PDF · 153 KB · 2026-07 (07/27/2026)
EU Data Act - X20 SafePLC - Connected Product Information Notice	PDF · 92 KB · 1.0 (10/02/2025)
EU Declaration FS PLC X20	PDF · 210 KB · 2019/07 (09/23/2019)
EU Declaration of Conformity CE_Declaration_FS_X20	PDF · 420 KB · 1.00 (03/16/2026)
EU_Declaration_of_Conformity_X20_FuctionalSafety	PDF · 434 KB · 2026_09 (09/21/2026)
FS EN 50156 Zertifikat SafeLOGIC, SafeIO	PDF · 314 KB · 1.100 (11/20/2017)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System)	PDF · 320 KB · 2.0 (05/05/2025)
Lloyds Register (X20 only)	PDF · 884 KB · 1.30 (07/07/2025)
M6A 041745 0010 TÜV Süd FS Certificate SafeDESIGNER, SafeLOGIC, SafeIO	PDF · 2 MB · 1.10.46 (09/09/2026)
M6A 041745 0013 TÜV Süd FS Certificate mapp Safety	PDF · 2 MB · 6.4.3 / 1.40 (09/01/2026)
RINA Type Approval Certificate - X20 / Power Panel T30	PDF · 1 MB · 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20	PDF · 186 KB · 13.0 (05/04/2026)
UK Declaration FS PLC X20	PDF · 112 KB · 2022-07 (09/01/2022)
