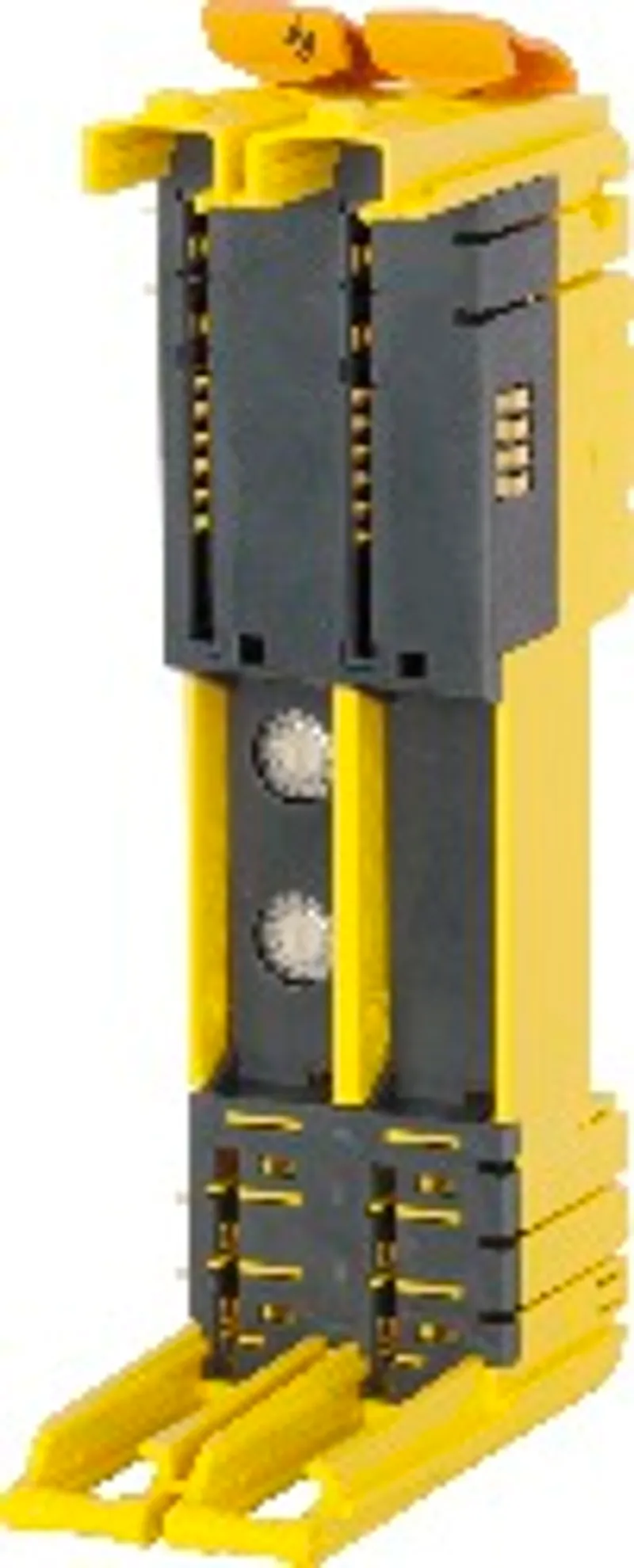

B&R X20BM36 – Bus module, bus module, for X20 SafeIO modules
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Bus modules |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20BM36 be shipped?
X20BM36 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20BM36 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20BM36 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20BM36, subject to availability and destination.
• Bus module for SafeIO modules
• The internal I/O power supply is continuous.
• Manual node number assignment
• Independent from the electronics module
• Manual and automatic addressing can be combined as desired.
The bus module is the base for all SafeIO modules. The internal I/O power supply is continuous. In addition, a unique address is defined with this bus module using a node number switch.
Specifications
Short description
| Bus module | Bus module, for X20 SafeIO modules, with node number switch, internal I/O power supply connected through |
General information
| Power consumption – Bus | 0.13 W |
| Power consumption – Internal I/O | - |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | In preparation |
| Certifications – KC | Yes |
| Additional power dissipation caused by actuators (resistive) [W] | - |
I/O power supply
| Nominal voltage | 24 VDC |
| Permissible contact load | 10 A |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level | 0 to 2000 m, no limitation |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch | 25 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)BMxx - Legacy | PDF · 1 MB · 1.141 (05/03/2019) - EN |
| Data sheet X20(c)BMxx - mapp Safety | PDF · 1 MB · 2.14 (12/16/2022) - EN |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D file STEP X20BMxx | ZIP · 32 KB · 1.00 (05/07/2013) |
| DFX File Bus module | ZIP · 5 KB · 1.00 (05/27/2013) |
| Dimensions PDF X20 Bus module | PDF · 46 KB · 1.00 (05/27/2013) |
Certificates (7)
| 2226379 CSA Certificate of Compliance X20 X67 | PDF · 205 KB · 2026_09 (09/21/2026) |
| E115267 UL Certificate of Compliance X20 | PDF · 3 MB · 2026_08_27 (08/27/2026) |
| E537419 UL Certificate of Compliance X20 | PDF · 153 KB · 2026-07 (07/27/2026) |
| EU Declaration of Conformity CE_Declaration_FS_X20 | PDF · 420 KB · 1.00 (03/16/2026) |
| EU_Declaration_of_Conformity_X20_FuctionalSafety | PDF · 434 KB · 2026_09 (09/21/2026) |
| TAA00000BJ DNV Type Approval Certificate X20 | PDF · 186 KB · 13.0 (05/04/2026) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
