B&R 0TB2105.9110 – The single-row 5-pin terminal block 0TB2105 is used as the…

Name: B&R 0TB2105.9110 – The single-row 5-pin terminal block 0TB2105 is used as the…
Brand: B&R
SKU: 0TB2105.9110

MPN: 0TB2105.9110 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Terminal blocks
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 0TB2105.9110 be shipped?

0TB2105.9110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB2105.9110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB2105.9110 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB2105.9110, subject to availability and destination.

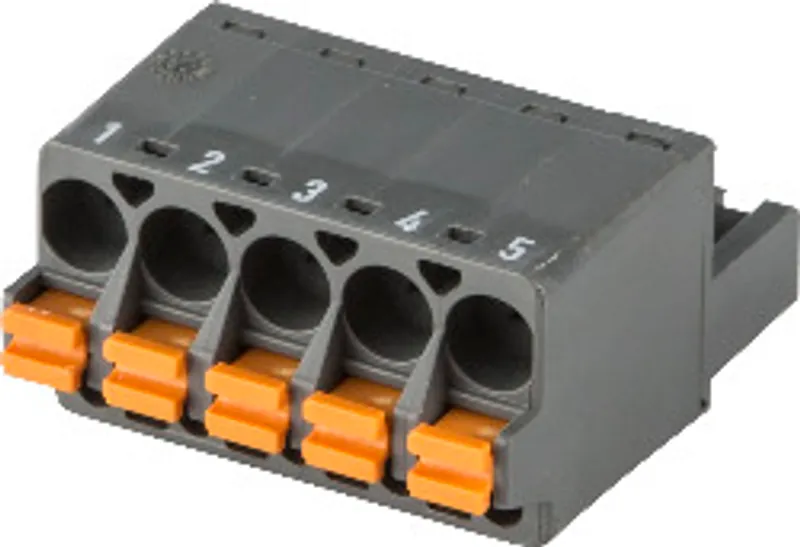

The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Nominal data per UL
Number of pins	5
Type of terminal block	Push-in terminal block variant " data-placement="top" data-html="true" data-container="body" data-content="The push-in terminal block cannot be arranged in series.">
Cable type	Only copper wires (no aluminum wires!)
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!">	10 A / contact
Contact resistance	≤5 mΩ
