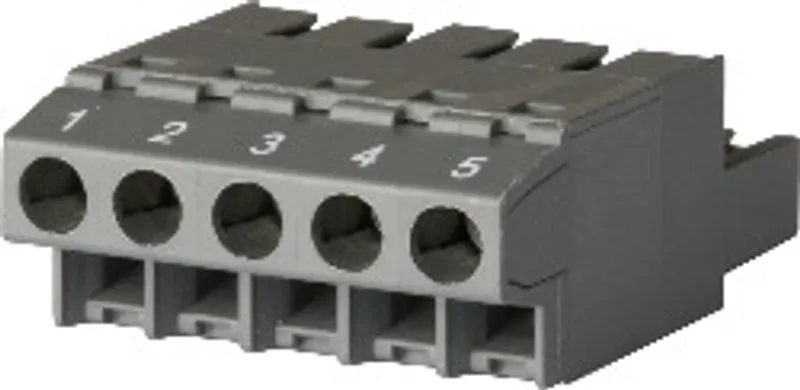

B&R 0TB2105.9010 – The single-row 5-pin terminal block 0TB2105 is used as the…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Terminal blocks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0TB2105.9010 be shipped?
0TB2105.9010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0TB2105.9010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0TB2105.9010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB2105.9010, subject to availability and destination.
The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E115267; Industrial control equipment |
Terminal block
| Connection cross section – AWG wire | 26 to 12 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 1.50 mm² |
| Connection cross section – Single-wire | 0.20 to 2.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 1.50 mm² |
| Connection cross section – With wire end sleeve | 0.20 to 1.50 mm² |
| Note | Nominal data per UL |
| Number of pins | 5 |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 5.08 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | 10 A / contact |
| Contact resistance | ≤5 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
CAD & dimension drawings
| 3D File DXF/STEP 0TB2105.9010 | ZIP · 53 KB · 1.00 (02/27/2018) |
More B&R parts
Available on requestB&R 0TB2105.4122 – Accessory terminal block, 5-pin, AX2, cage clamps 2.5 mm²
Available on requestB&R 0TB2105.4122-01 – Accessory terminal block, 5-pin, AX2
Available on requestB&R 0TB2105.4131 – Accessory terminal block, 5-pin, AX1Available on requestB&R 0TB2105.4132 – Accessory terminal block, 5-pin, AX2
Available on requestB&R 0TB2105.9021 – Accessory terminal block, 5-pin, DC
Available on requestB&R 0TB2105.9110 – The single-row 5-pin terminal block 0TB2105 is used as the…

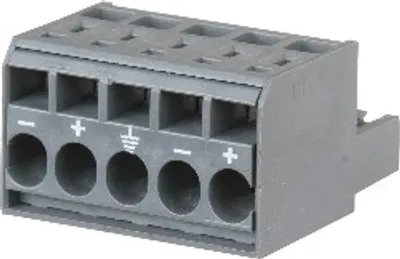

Available on requestB&R 0TB2105.9121 – Accessory terminal block, 5-pin, DC, cage clamps 2.5 mm²
