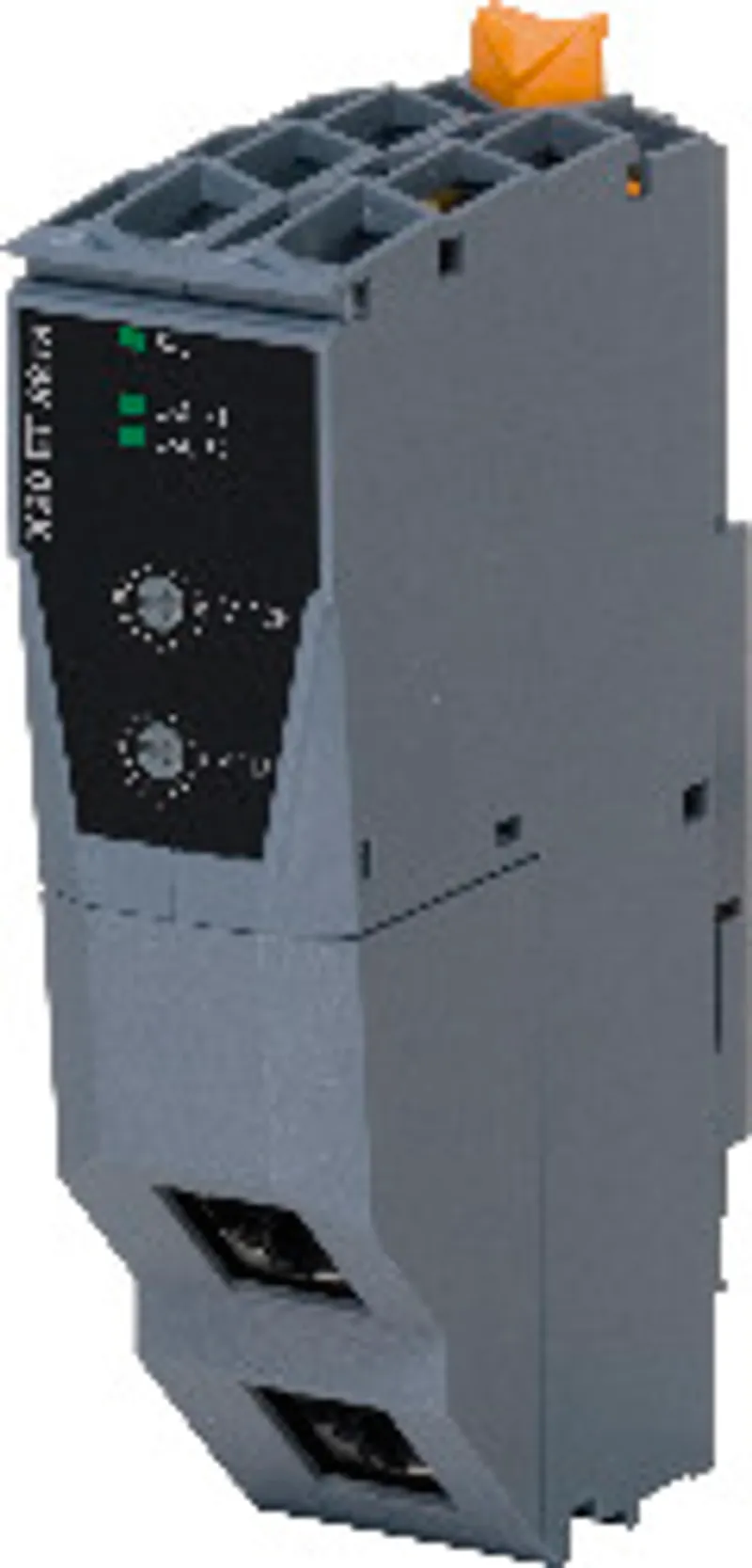

What is the B&R X20ET8819?
NetTime time stamp has a resolution of 20 ns
Recording and analysis of CRC and frame errors
Triggers can also be activated using external digital signals
Analysis of both half-duplex and full-duplex networks
Able to record two networks simultaneously
POWERLINK has proven itself in the field for years and rarely has problems during commissioning and production. Nonetheless, it is still possible for communication disturbances to occur due to damaged or poor quality cables. If an error occurs, localizing and correcting it is usually very easy thanks to the heterogeneous structure of this flat network type (all data is always visible throughout the network). What's problematic are errors that occur sporadically. This is where tools such as Omnipeek or Wireshark come in.
These tools (or more likely the standard PC technology being used) reach their limits, however, when dealing with machines that have short network cycles. Either not all frames can be recorded, or some telegrams are lost altogether. In these cases, what's needed is a special hardware tool that can work very quickly, record and save every bit of traffic and then pass it on to a laptop.
This module provides different operating modes. For example, it can work passively on the network, in which case the real-time behavior remains unchanged. The device listens in and selectively takes in data when certain defined trigger conditions are met. It can read all of the data, mark it with a timestamp, store it temporarily and ultimately pass it on to a PC. The data is then analyzed in the familiar PC environment.
Specifications
Short description
| Ethernet analysis tool | Ethernet analysis tool with up to 2 slots for hub expansion modules |
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Status indicators | Module status, bus function |
| Power consumption | 2 W |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | Yes |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Type | Ethernet analysis tool |
| Variant | 2x shielded RJ45 |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
Electrical properties
| Electrical isolation | POWERLINK (IF1, IF2) isolated from power supply |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Pitch – X20BB80 | 37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to two X20HB2880 or X20HB2881 hub expansion modules and one X20PS9400 power supply module are also always required for the Ethernet analysis tool.) |
| Pitch – X20BB81 | 62.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to two X20HB2880 or X20HB2881 hub expansion modules and one X20PS9400 power supply module are also always required for the Ethernet analysis tool.) |
| Pitch – X20BB82 | 87.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB8x. Up to two X20HB2880 or X20HB2881 hub expansion modules and one X20PS9400 power supply module are also always required for the Ethernet analysis tool.) |
| Note | Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 separately. ; Order 1x bus base X20BB8x separately. |
Accessories
Required accessories (order separately)
| X20PS9400 | System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc… |
| X20BB80 | System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar… |
| X20BB82 | System modules for expandable bus controllers — Bus base with 2 expansion slots The bus module has 2 expansion slots. The following modules are used on this module: Base module (BC, HB, e… |
| X20BB81 | System modules for expandable bus controllers — Bus base with one expansion slot The bus module has an expansion slot. The following modules are used on this module: Base module (BC, HB,… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (6)
