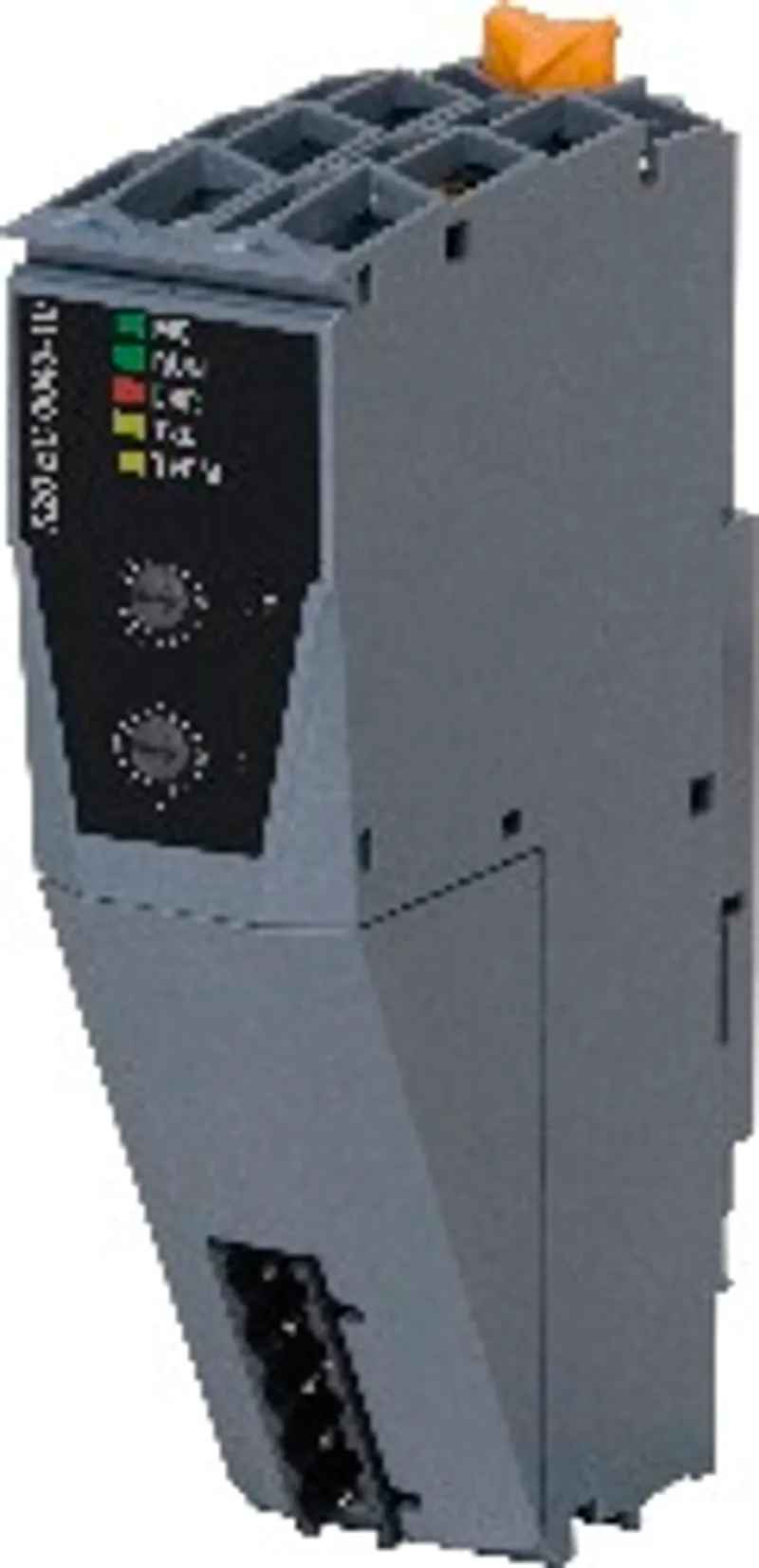

B&R X20BC0043-10

Bus controller, CANopen slave

MPN: X20BC0043-10
Category: Bus controllers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20BC0043-10?

Fieldbus: CANopen

Auto-configuration of I/O modules

I/O configuration via the fieldbus

Constant response times even with large amounts of data (max. 32 Rx and 32 Tx PDOs)

Configurable I/O cycle (0.5 to 4 ms)

Configurable transfer rate or automatic transfer rate detection

Heartbeat consumer and producer

Emergency producer

2x SDO server, NMT slave

Simple bootup (autostart)

Terminal access via serial interface on the X20PS9400

Integrated terminating resistor

Controller Area Network (CAN) is widespread in automation technology. CAN topology is based on a line structure and uses twisted wire pairs for data transfer. CANopen is a higher-layer protocol based on CAN. The standardized protocol offers very flexible configuration options.

This bus controller makes it possible to connect up to 253 X2X Link I/O modules to CANopen. A transition between IP20 and IP67 protection is possible by directly connecting X20, X67 or XV modules to one another at distances of up to 100 m each across control cabinet boundaries as required. All CANopen operating modes such as synchronous, event and polling are supported as well as PDO linking, life/node guarding, heartbeat, emergency objects and much more.

With multifunction modules, the bus controller supports only the default function model in the event of automatic configuration by the bus controller (see the respective module description).

Automation Studio V4.3 or later can be used to easily create configuration files (e.g. DCF files). All other function models are also supported by transferring configuration data to the bus controller (e.g. via the master environment with an SDO download).

Automation Studio can be downloaded at no cost from the B&R website ( www.br-automation.com ). The evaluation license is permitted to be used to create complete configurations for fieldbus bus controllers at no cost.

Specifications

Short description

Bus controller

CANopen slave

General information

Diagnostics – Module status	Yes, using LED status indicator and software
Diagnostics – Bus function	Yes, using LED status indicator and software
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Power consumption – Bus	1.5 W (rev. <H0: 2 W)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xA8B8
Status indicators	Module status, bus function, data transfer, terminating resistor

Interfaces

Min. cycle time – Fieldbus	No limitation (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Min. cycle time – X2X Link	500 μs (note: The minimum cycle time specifies how far the bus cycle can be reduced without communication errors occurring.)
Fieldbus	CANopen slave
Variant	5-pin male multipoint connector
Max. distance	1000 m
Transfer rate	Max. 1 Mbit/s
Default transfer rate	Automatic transfer rate detection or fixed setting
Synchronization between bus systems possible	No
Terminating resistor	Integrated in module

Electrical properties

Electrical isolation

CANopen isolated from I/O; CANopen not isolated from bus

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB2105 separately. ; Order 1x terminal block X20TB12 separately. ; Order 1x power supply module X20PS9400 or X20PS9402 separately. ; Order 1x bus base X20BB80 separately.
Pitch	37.5 +0.2 mm (note: Pitch is based on the width of bus base X20BB80. In addition, power supply module X20PS9400 or X20PS9402 is always required for the bus controller.)

Accessories

Required accessories (order separately)

X20PS9402	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Low-cost supply module for small X20 system; Feed and bus controller / X2X…
X20PS9400	System modules for bus controllers — Supply for the bus controller, X2X Link and internal I/O supply; Feed and bus controller / X2X Link supply electrically isolated; Redundanc…
X20BB80	System modules for bus controllers — Bus base The following modules are used on the bus module: Base module (BC, HB, etc.); Supply module The left and right end cover plates ar…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…
0TB2105.9110	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
0TB2105.9010	Terminal blocks — The single-row 5-pin terminal block 0TB2105 is used as the connection terminal for fieldbuses among other things.
