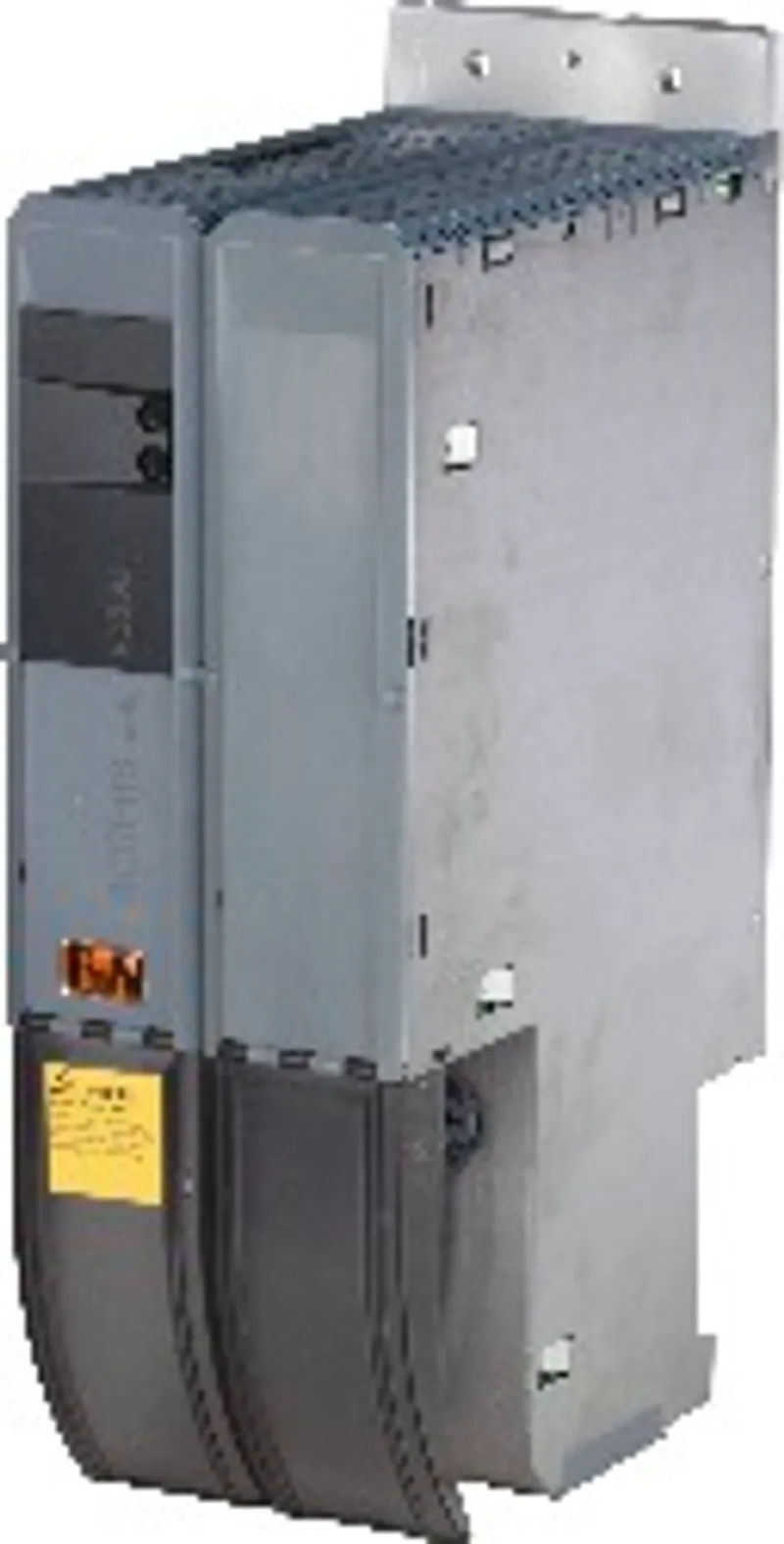

B&R 8B0K3630HW00.001-1

Serves to buffer the DC bus

MPN: 8B0K3630HW00.001-1
Category: Wall mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8B0K3630HW00.001-1?

Serves to buffer the DC bus

Seamless integration in the ACOPOSmulti drive system

Charging circuit

ACOPOSmulti capacitor module, 3630 µF, AS, wall mounting, charging circuit

Specifications

General information

Maximum number of modules depending on power supply module – 8B0P0xx0	In preparation
Maximum number of modules depending on power supply module – 8BVP0220	In preparation
Maximum number of modules depending on power supply module – 8BVP0440	In preparation
Maximum number of modules depending on power supply module – 8BVP0880	In preparation
Maximum number of modules depending on power supply module – 8BVP1650	In preparation
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cooling and mounting type	Wall mounting
Startup time (CR_OK In HIGH to CR_OK Out HIGH)	Typ. 500 ms
Cutoff delay (CR_OK In LOW to CR_OK Out LOW)	Typ. 3 ms

Mains connection

Switch-on interval – Mains input voltage 3x 400 VAC	In preparation
Switch-on interval – Mains input voltage 3x 480 VAC	In preparation

DC bus connection

Voltage – Minimum	235 VDC
Voltage – Nominal	750 VDC
Power dissipation at max. device power	In preparation
DC bus capacitance	3630 µF (note: Not permitted to be taken into account when determining the max. loadable DC bus capacitance of ACOPOSmulti drive systems!)
Execution	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC +1.6% / -20%
Input capacitance	28.2 µF
Max. power consumption	8 W
Execution	ACOPOSmulti backplane

Alarm contacts

Type – Alarm contact 1	Normally closed contact
Type – Alarm contact 2	Normally open contact
Electrical isolation – Alarm contact - ACOPOSmulti module	Yes
Electrical isolation – Alarm contact - Alarm contact	Yes
Protection – Overload-proof	No
Protection – Short-circuit proof	No
Quantity	2
Nominal voltage	30 VDC
Maximum current	1 A
Switching delay	Max. 5 ms (note: Switching delay after state change from CR_OK Out)
Max. number of switching cycles	100,000

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 500 m
Installation elevation above sea level – Maximum	4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.)
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C (note: Continuous operation at an ambient temperature of 40°C to max. 55°C is possible taking the specified reduction of continuous torque into account, but this results in premature aging of components.)
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Mechanical properties

Dimensions – Wall mounting	263 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Width	106.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Dimensions – Height	317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.)
Weight	6.4 kg
Module width	2

Accessories

Required accessories (order separately)

8BZ0K363000.001-1A

Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0K3630Hx00.001-1 modules: 1x 8TB2112.2010-00

Optional accessories (2)

8BXF001.0000-00	Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K)
8TB2112.2010-00	Terminal blocks — 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file STEP 8B0K3630HW00.001-1ZIP · 148 KB · 1.0 (05/31/2022)
