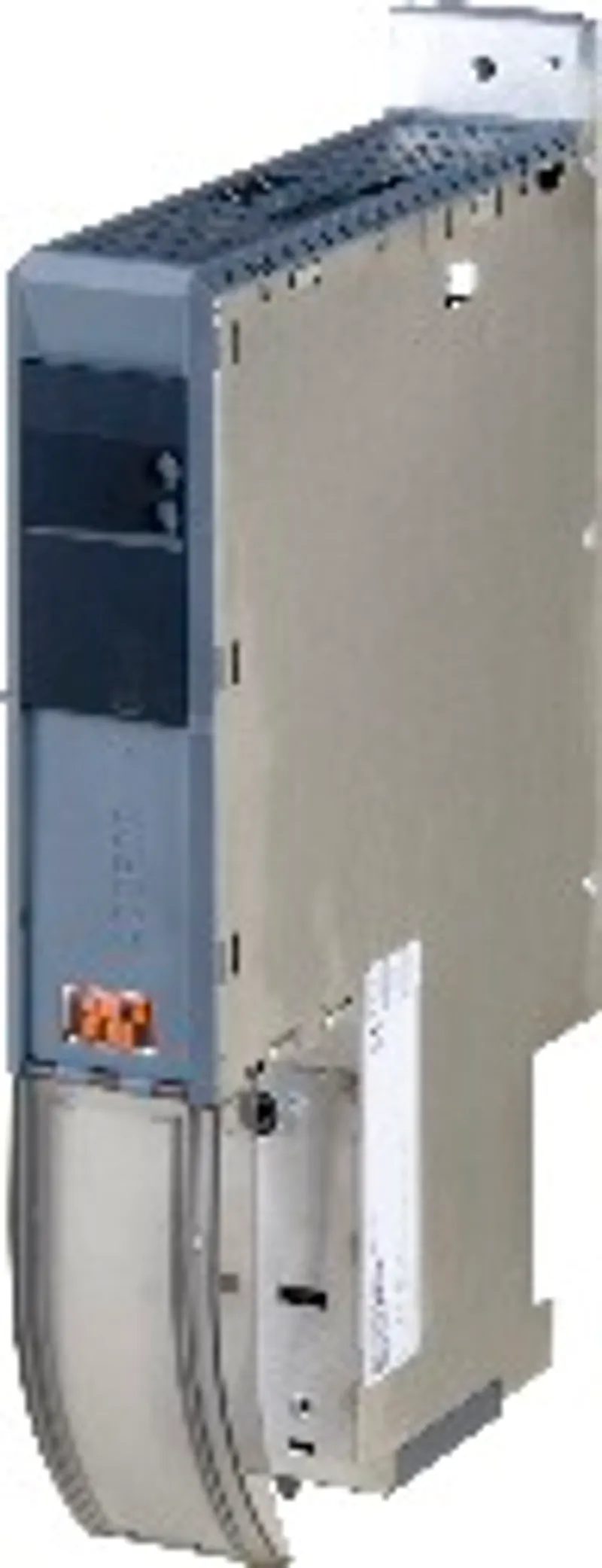

B&R 8B0K1650HC00.000-1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cold plate or feed-through mounting |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 8B0K1650HC00.000-1 be shipped?
8B0K1650HC00.000-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8B0K1650HC00.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8B0K1650HC00.000-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0K1650HC00.000-1, subject to availability and destination.
Serves to buffer the DC busSeamless integration in the ACOPOSmulti drive systemCharging circuit ACOPOSmulti capacitor module, 1650 µF, AS, cold plate or pass-through mounting
Specifications
Specifications
| Cooling and mounting type | Cold plate or pass-through mounting |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Not applicable |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Nominal | 5 to 40°C |
| Power dissipation at max. device power | In preparation |
| DC bus capacitance | 1650 µF |
| Variant | ACOPOSmulti backplane |
| Input voltage | 25 VDC +1.6% / -20% |
| Max. power consumption | 3 W |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Maximum | 55°C |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Operation | 5 to 85% |
| Width | 53 mm |
| Height | 317 mm |
| Cold plate | 212 mm |
| Pass-through mounting | 209 mm |
| Weight | Approx. 2.7 kg |
| Module width | 1 |
