B&R 8B0K3630HC00.001-1
Serves to buffer the DC bus
- MPN
- 8B0K3630HC00.001-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8B0K3630HC00.001-1?
Serves to buffer the DC bus
Seamless integration in the ACOPOSmulti drive system
Charging circuit

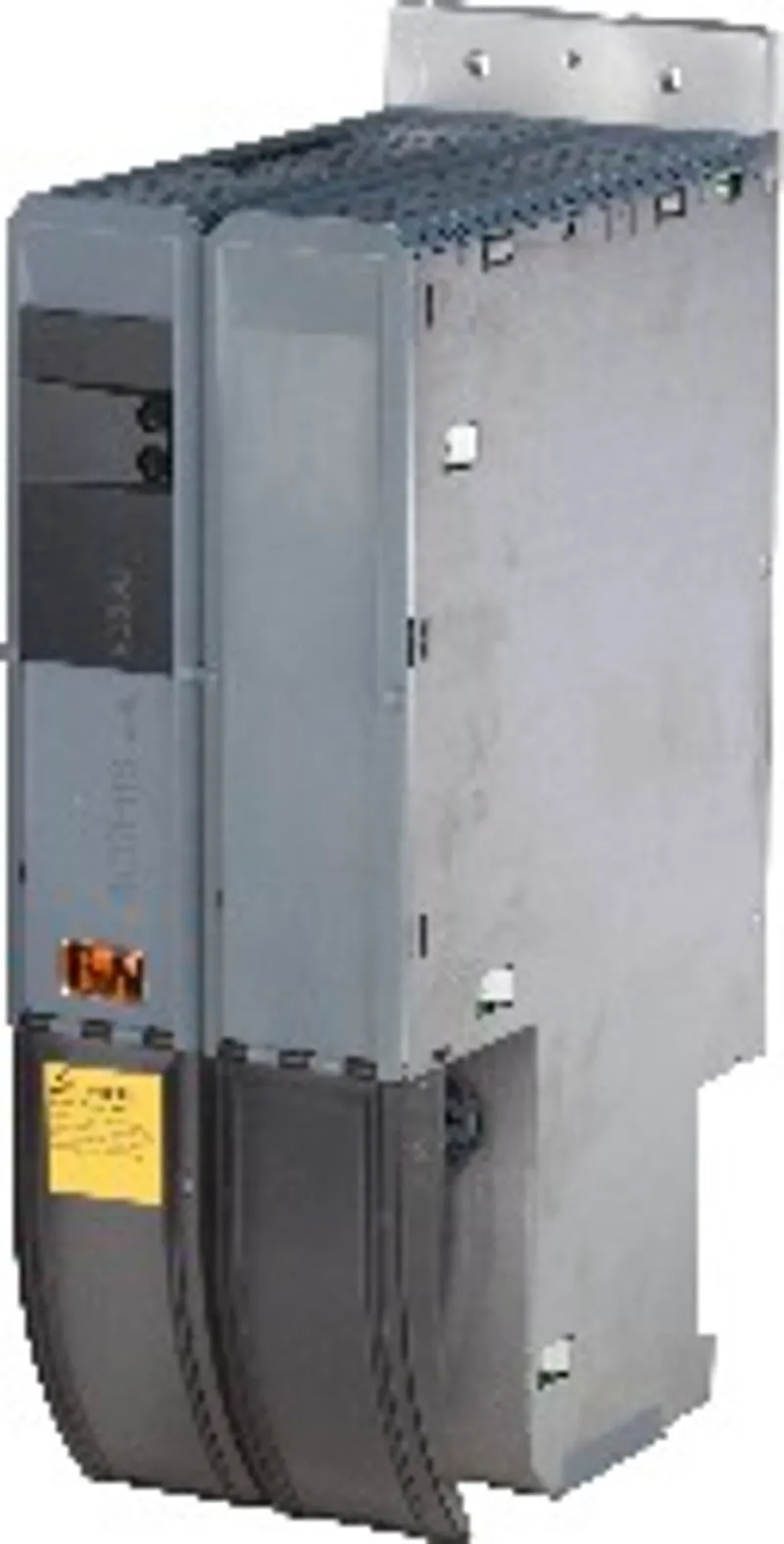

ACOPOSmulti capacitor module, 3630 µF, AS, cold plate or pass-through mounting, charging circuit
Specifications
General information
| Maximum number of modules depending on power supply module – 8B0P0xx0 | In preparation |
| Maximum number of modules depending on power supply module – 8BVP0220 | In preparation |
| Maximum number of modules depending on power supply module – 8BVP0440 | In preparation |
| Maximum number of modules depending on power supply module – 8BVP0880 | In preparation |
| Maximum number of modules depending on power supply module – 8BVP1650 | In preparation |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cooling and mounting type | Cold plate or pass-through mounting |
| Startup time (CR_OK In HIGH to CR_OK Out HIGH) | Typ. 500 ms |
| Cutoff delay (CR_OK In LOW to CR_OK Out LOW) | Typ. 3 ms |
Mains connection
| Switch-on interval – Mains input voltage 3x 400 VAC | In preparation |
| Switch-on interval – Mains input voltage 3x 480 VAC | In preparation |
DC bus connection
| Voltage – Minimum | 235 VDC |
| Voltage – Nominal | 750 VDC |
| Power dissipation at max. device power | In preparation |
| DC bus capacitance | 3630 µF (note: Not permitted to be taken into account when determining the max. loadable DC bus capacitance of ACOPOSmulti drive systems!) |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC +1.6% / -20% |
| Input capacitance | 28.2 µF |
| Max. power consumption | 8 W |
| Variant | ACOPOSmulti backplane |
Alarm contacts
| Type – Alarm contact 1 | Normally closed contact |
| Type – Alarm contact 2 | Normally open contact |
| Electrical isolation – Alarm contact - ACOPOSmulti module | Yes |
| Electrical isolation – Alarm contact - Alarm contact | Yes |
| Protection – Overload-proof | No |
| Protection – Short-circuit proof | No |
| Quantity | 2 |
| Nominal voltage | 30 VDC |
| Maximum current | 1 A |
| Switching delay | Max. 5 ms (note: Switching delay after state change from CR_OK Out) |
| Max. number of switching cycles | 100,000 |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum | 4000 m (note: Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account. Requirements that go beyond this must be arranged with B&R.) |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C (note: Continuous operation at an ambient temperature of 40°C to max. 55°C is possible taking the specified reduction of continuous torque into account, but this results in premature aging of components.) |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions – Cold plate | 212 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Pass-through mounting | 209 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Width | 106.5 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Dimensions – Height | 317 mm (note: These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation.) |
| Weight | 5.1 kg |
| Module width | 2 |
Accessories
Required accessories (order separately)
| 8BZ0K363000.001-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0K3630Hx00.001-1 modules: 1x 8TB2112.2010-00 |
Optional accessories (2)
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8TB2112.2010-00 | Terminal blocks — 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
