Home / B&R / Terminal blocks / B&R 8TB2112.2010-00 – 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm
Available on request

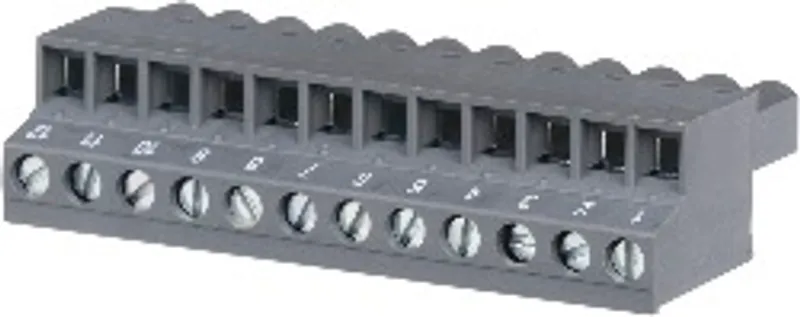

B&R 8TB2112.2010-00 – 12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm

MPN: 8TB2112.2010-00 · Brand: B&R
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryTerminal blocks
LifecycleActive
Warranty12-month (new) · 3-month (used/refurbished)
Weight35.2 kg
DatasheetManufacturer datasheet ↗

Shipping & availability

When can 8TB2112.2010-00 be shipped?

8TB2112.2010-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8TB2112.2010-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8TB2112.2010-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8TB2112.2010-00, subject to availability and destination.

12-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively

Specifications

Terminal block

Connection cross section – AWG wire30 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering0.25 to 2.5 mm²
Connection cross section – Single-wire0.2 to 2.5 mm²
Connection cross section – Fine-stranded wires0.2 to 1.5 mm²
Connection cross section – With wire end sleeve0.25 to 2.5 mm²
NoteLabel 1: Numbered consecutively; Coding 0: None; 1-row
Number of pins12
Type of terminal blockScrew clamp terminal block variant
Cable typeOnly copper wires (no aluminum wires!)
Coding0
Pitch5.08 mm
Wire stripping length10 mm
Tightening torque0.5 to 0.6 Nm
Tension>10 N (0.2 mm²); >50 N (2.5 mm²)

Electrical properties

Nominal voltage250 V (IEC) / 300 V (UL)
Nominal current12 A (IEC) / 15 A (UL)

Mechanical properties

Dimensions – Width61 mm
Dimensions – Height15 mm
Dimensions – Depth27.2 mm
Weight35.2 g

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 8TB2112.2010-00PDF · 131 KB · 1.3 (11/09/2018) - EN
ACOPOSmulti User´s ManualPDF · 309 MB · 1.30 (08/18/2025) - EN

CAD & dimension drawings

3D file STEP 8TB2112.2010-00ZIP · 389 KB · 1.0 (02/10/2014)
3D files STEP ACOPOSmulti terminalsZIP · 8 MB · 1.1 (02/18/2014)
