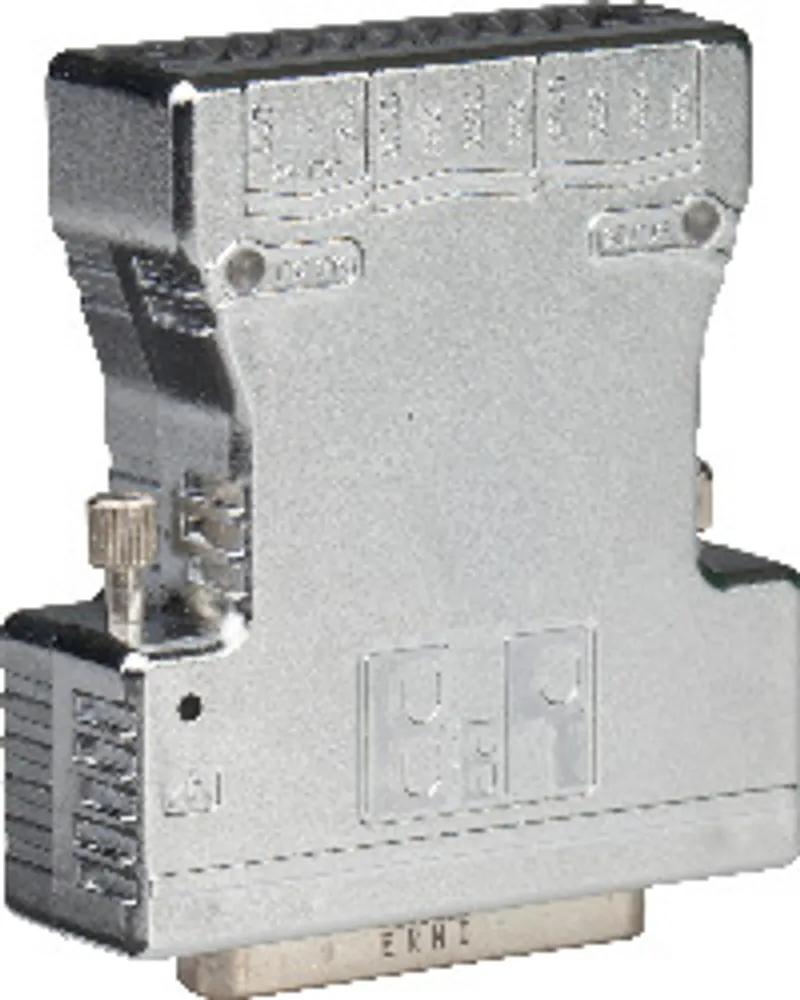

B&R 7XV116.50-11

Remote valve terminal connection, 16 digital outputs, 0.1 A

MPN: 7XV116.50-11
Category: XV116 valve connections

€422.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7XV116.50-11?

Remote valve terminal connection, 16 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pins 22, 23, 24, 25, X2X Link, electrically isolated, IP20 protection, order 1x terminal block 0TB1111 separately!

Specifications

General information

Diagnostics – Power supply	24 VDC OUT: Yes, using LED and software; 24 VDC X2X: Yes, using software
Diagnostics – X2X Link	Yes, using software
Diagnostics – Overload	Yes, using software (outputs)
Input capacitance – Module power supply	47 µF / 7.5 Ω
Input capacitance – I/O power supply	47 µF
Electrical isolation – Digital outputs - 24 VDC X2X, OUT power supply	No
Electrical isolation – X2X Link - 24 VDC X2X, OUT power supply	Yes
Electrical isolation – X2X Link - Digital outputs	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0x1CE5
Status LED	Yes (color / blink code); 24 VDC OUT power supply (DCOK LED) = Yes
Status indicators	Operating status and power supply
Power consumption	Max. 0.75 W
Remote valve terminal connection for 25-pin DSUB multi-pin connection	16 valves

Circuit

Bus connection	11-pin
GND pin	22, 23, 24, 25
Power supply	via bus connector

Interfaces

User interface – Execution	11-pin male multipoint connector
User interface – Type	X2X Link slave

Digital outputs

Switching delay – 0 → 1	Typ. 150 μs / max. 200 μs
Switching delay – 1 → 0	Typ. 175 μs / max. 250 μs
Switching voltage	24 VDC ±25%
Total nominal current	1.6 A
Output circuit	Source
Output protection	Protected against short circuit, overload and overtemperature
Type	High-side driver (source)
Max. output current	0.1 A
Max. switching frequency	100 Hz

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block 0TB1111.8110 separately.
Installation	25-pin DSUB, screw mounting, 4-40 UNC
Weight	56 g
Module dimensions including mounting plates	63 x 59 x 20 mm (H x W x D)
