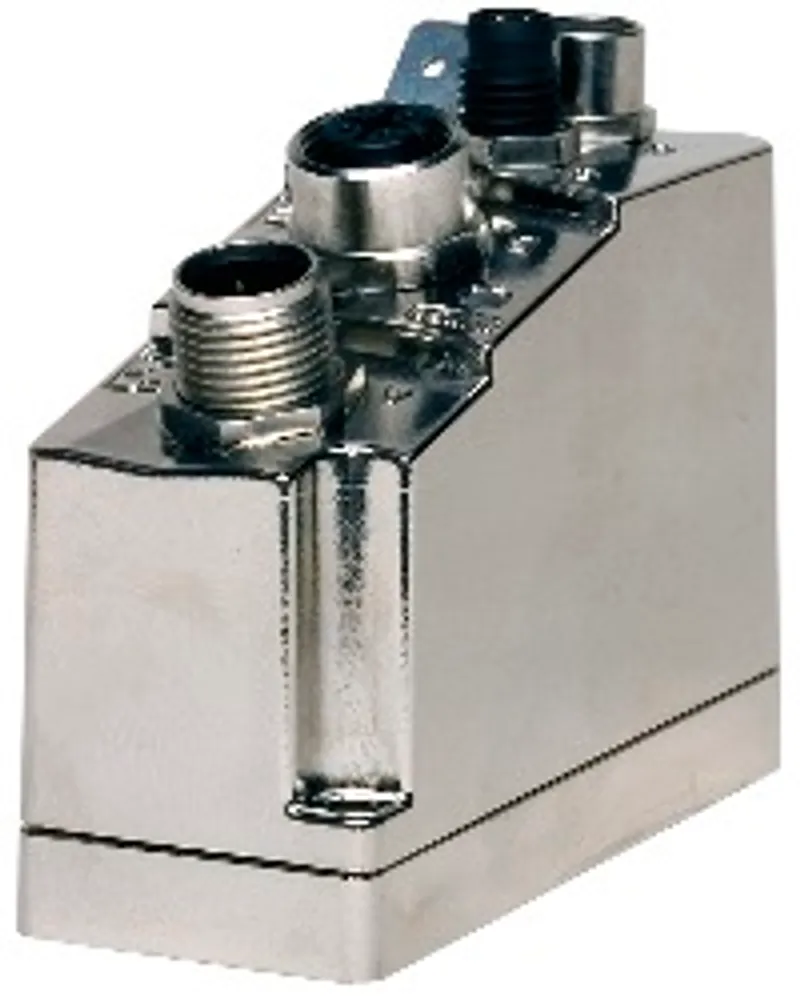

B&R 7XV108.50-51

Remote valve terminal connection, 8 digital outputs, 0.1 A

MPN: 7XV108.50-51
Category: XV108 valve connections

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7XV108.50-51?

Remote valve terminal connection, 8 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pin 22, 23, 24, 25, X2X Link, electrically isolated, IP67 protection

Specifications

General information

Diagnostics – Power supply	24 VDC OUT: Yes, using LED and software; 24 VDC X2X: Yes, using software
Diagnostics – X2X Link	Yes, using software
Diagnostics – Overload	Yes, using LED and software (outputs)
Power consumption – Internal I/O	Max. 1.5 W (without load)
Power consumption – X2X Link power supply	Max. 0.75 W
Electrical isolation – Digital outputs - 24 VDC X2X, OUT power supply	No
Electrical isolation – X2X Link - 24 VDC X2X, OUT power supply	Yes
Electrical isolation – X2X Link - Digital outputs	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0x1CEB
Status LED	Yes (color / blink code); 24 VDC OUT power supply (DCOK LED) = Yes (color / blink code)
Status indicators	Operating status and power supply
Remote valve terminal connection for 25-pin DSUB multi-pin connection	8 valves

Circuit

Bus connection	M12
GND pin	22, 23, 24, 25
Power supply	M8

Interfaces

User interface – Variant	M12
User interface – Type	X2X Link slave

Digital outputs

Switching delay – 0 → 1	Typ. 100 μs / max. 150 μs
Switching delay – 1 → 0	Typ. 125 μs / max. 200 μs
Switching voltage	24 VDC ±25%
Total nominal current	0.8 A
Output circuit	Source
Output protection	Protected against short circuit, overload and overtemperature
Type	High-side driver (source)
Max. output current	0.1 A
Max. switching frequency	100 Hz

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Degree of protection per EN 60529	IP67

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order male/female M12/M8 connectors separately
Installation	25-pin DSUB, screw mounting, 4-40 UNC
Weight	125 g
Module dimensions including mounting plates	62 x 70 x 30 mm (H x W x D)
