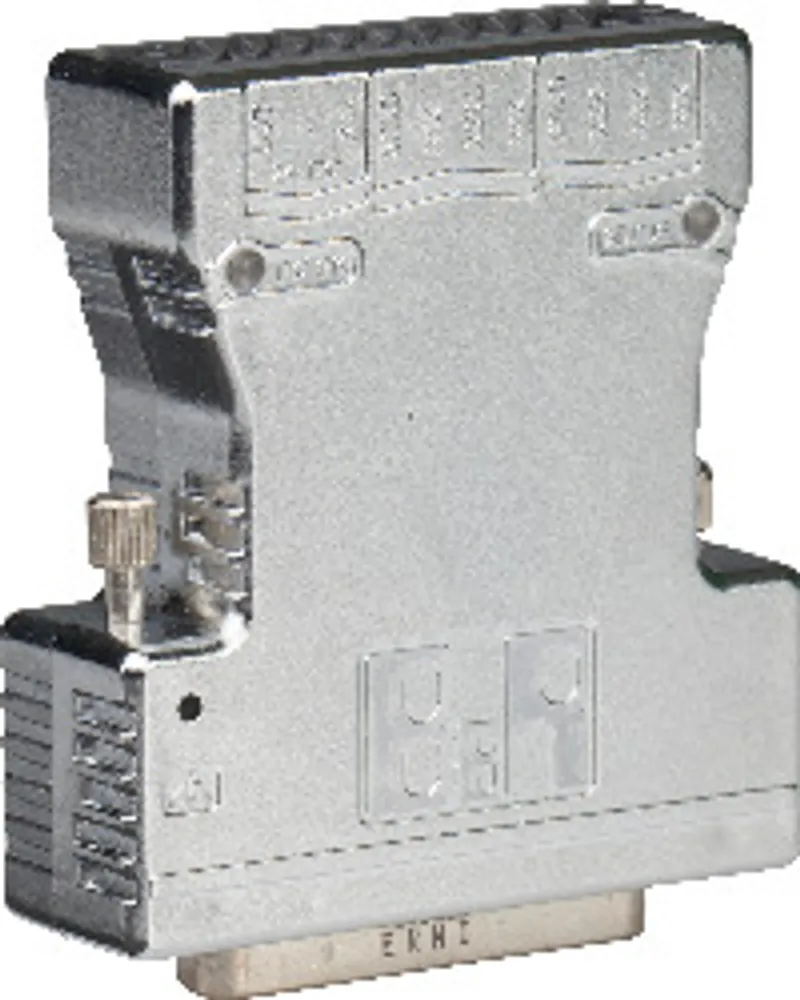

B&R 7XV116.50-01 – Remote valve terminal connection, 16 digital outputs, 0.1 A

MPN: 7XV116.50-01 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XV116 valve connections
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	56 kg

Shipping & availability

When can 7XV116.50-01 be shipped?

7XV116.50-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7XV116.50-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7XV116.50-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7XV116.50-01, subject to availability and destination.

Remote valve terminal connection, 16 digital outputs, 0.1 A, 24 VDC, for 25-pin DSUB multipin connector, GND pins 22, 23, 24, 25, X2X Link, electrically isolated, common 24 VDC power supply, order 1x terminal block 0TB710.91 separately!

Accessories

Required accessories (order separately)

0TB710.91	Terminal blocks — The single row 10-pin terminal block 0TB710 is used for making connections on an XV module.
0TB710.90	Terminal blocks — Accessory terminal block, 10-pin, screw clamp terminal block 1.5 mm²

Specifications

General information

Diagnostics – Power supply	24 VDC OUT: Yes, using LED and software; 24 VDC X2X: Yes, using software
Diagnostics – X2X Link	Yes, using software
Diagnostics – Overload	Yes, using software (outputs)
Input capacitance – Module power supply	220 µF
Electrical isolation – Digital outputs - 24 VDC X2X, OUT power supply	No
Electrical isolation – X2X Link - 24 VDC X2X, OUT power supply	Yes
Electrical isolation – X2X Link - Digital outputs	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0x1AC9
Status LED	Yes (color / blink code) ; 24 VDC OUT power supply (DCOK LED) = Yes
Status indicators	Operating status and power supply
Power consumption	Max. 0.75 W
Remote valve terminal connection for 25-pin DSUB multi-pin connection	16 valves

Circuit

Bus connection	10-pin
GND pin	22, 23, 24, 25
Power supply	via bus connector

Interfaces

User interface – Execution	10-pin male multipoint connector
User interface – Type	X2X Link slave

Digital outputs

Switching delay – 0 → 1	Typ. 150 μs / max. 200 μs
Switching delay – 1 → 0	Typ. 175 μs / max. 250 μs
Switching voltage	24 VDC ±25%
Total nominal current	1.6 A
Output circuit	Source
Output protection	Protected against short circuit, overload and overtemperature
Type	High-side driver (source)
Max. output current	0.1 A
Max. switching frequency	100 Hz

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB710 separately.
Installation	25-pin DSUB, screw mounting, 4-40 UNC
Weight	56 g
Module dimensions including mounting plates	63 x 59 x 20 mm (H x W x D)
