Home / B&R / Terminal blocks / B&R 0TB1111.8010 – The single-row 11-pin 0TB1111 screw clamp is used to…

Available on request

B&R 0TB1111.8010 – The single-row 11-pin 0TB1111 screw clamp is used to…

Name: B&R 0TB1111.8010 – The single-row 11-pin 0TB1111 screw clamp is used to…
Brand: B&R
SKU: 0TB1111.8010

MPN: 0TB1111.8010 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Terminal blocks
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 0TB1111.8010 be shipped?

0TB1111.8010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB1111.8010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB1111.8010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1111.8010, subject to availability and destination.

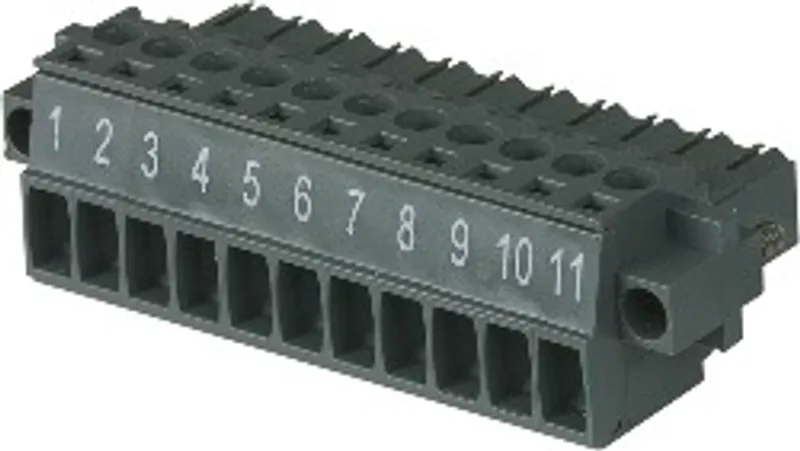

The single-row 11-pin 0TB1111 screw clamp is used to connect to various B&R modules.

Specifications

Terminal block

Connection cross section – AWG wire	28 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 1.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Protected against vibration by the screw flange ; Nominal data per UL
Number of pins	11
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm

Electrical properties

Nominal voltage	300 V
Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!">	10 A / contact
Contact resistance	≤4.2 mΩ
