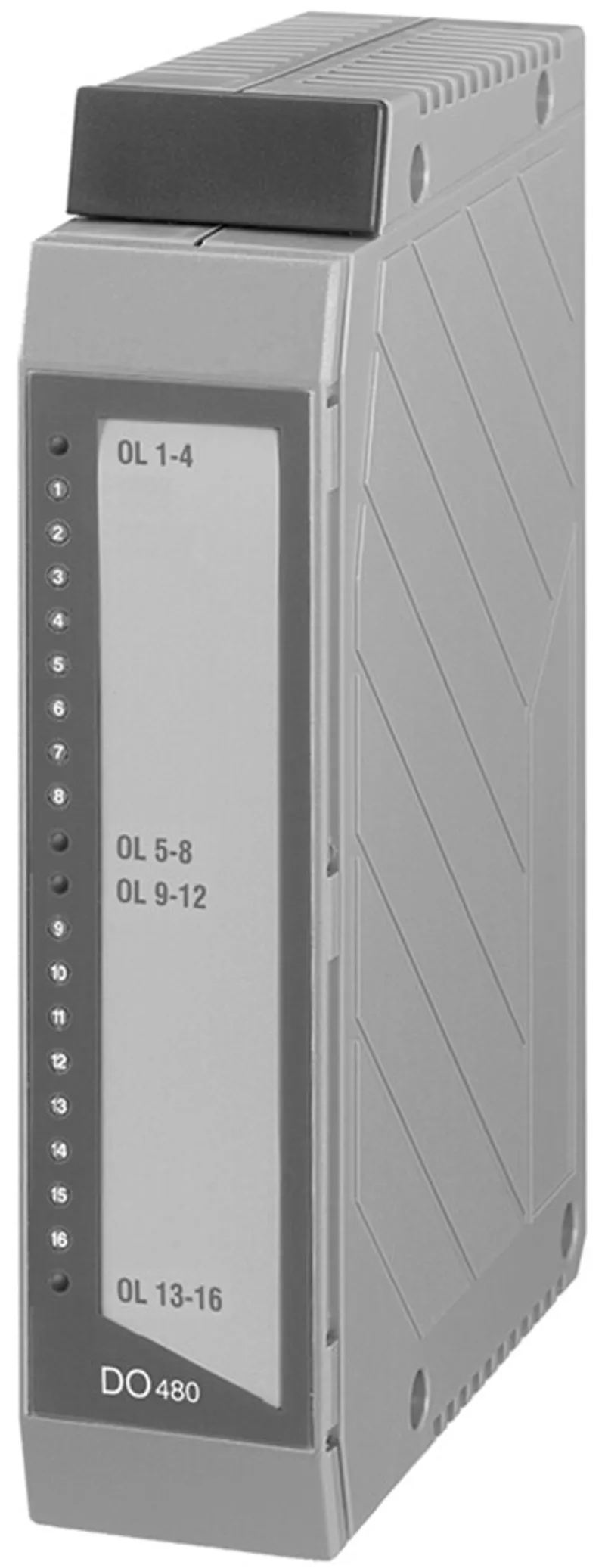

B&R 3DO480.6 – I/O module, 16 digital outputs 24 VDC in 2 groups

MPN: 3DO480.6 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3DO480.6 be shipped?

3DO480.6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3DO480.6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3DO480.6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3DO480.6, subject to availability and destination.

2005 digital output module, 16 transistor outputs 24 VDC, 2 A, 2 electrically isolated output groups, order 1x terminal block TB170 separately!

Accessories

Required accessories (order separately)

3TB170.91	Terminal blocks — 2005 terminal block, 20-pin, push-in terminal block
3TB170.9	Terminal blocks — 2005 terminal block, 20-pin, screw clamp terminal block

Specifications

Short description

I/O module

16 digital outputs 24 VDC in 2 groups

General information

Diagnostics – Outputs	Yes, using LED status indicator
Diagnostics – Operating state of outputs	Yes, using LED status indicator
Power consumption – 24 VDC	1.0 W
Power consumption – 5 VDC	1.5 W
Power consumption – Total	2.5 W
Electrical isolation – Group - Group	Yes
Electrical isolation – Channel - Channel	No (same group)
Electrical isolation – Channel - PLC	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Status indicators	I/O function per channel, operating state of the outputs

Digital outputs

Nominal voltage	24 VDC
Nominal output current	2.0 A
Total nominal current	24.0 A
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads, reverse polarity protection of the output power supply
Group rated voltage	12.0 A
Sensor power supply	External

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Dimensions – Width	System 2005 single-width
Can be installed on – Base unit	Yes
Can be installed on – Expansion unit	Yes
Note	Order 1x terminal block TB170 separately.
