Bosch Rexroth R911421642

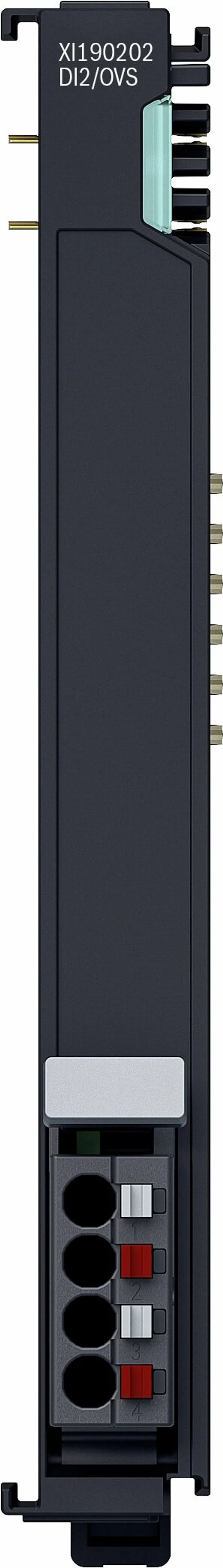

DIGITAL INPUT MODULE XI190202

MPN: R911421642
Category: XI1 Digital Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911421642?

The digital input module XI190202 is used to detect binary 24 V control signals in a ctrlX I/O station. The module is designed with 2 channels in 2-wire technology. The signal state is shown at the channel LED on the removable peripheral connector. The signals are sampled at an adjustable sampling rate (oversampling factor n) relative to the bus cycle time. The module provides n-bit process data for each bus cycle, which is transmitted in the subsequent bus cycle. The input reading is synchronized with other EtherCAT participants with high precision using a distributed clock. To suppress interference signals, the inputs are filtered with a 1µs filter.

The logic and peripheral supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Maximum power dissipation in the module [W]	1.34
Input filter	0.001 ms
Fuse protection (UOUT24 V)	Internal with a protective fuse
Channel LEDs	Per channel
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Max. current up per terminal point [A]	1
Max. net current Up module [A]	1
Input current [mA]	2.4
Signal voltage "0" [V]	-3-5
Signal voltage "1" [V]	11-30
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Nominal input voltage [V DC]	24
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.11
