DIGITAL OUTPUT MODULE XI250204

Name: DIGITAL OUTPUT MODULE XI250204
Brand: Bosch Rexroth
SKU: R911421645

MPN: R911421645 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XI2 Digital Outputs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911421645 be shipped?

R911421645 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911421645 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911421645 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911421645, subject to availability and destination.

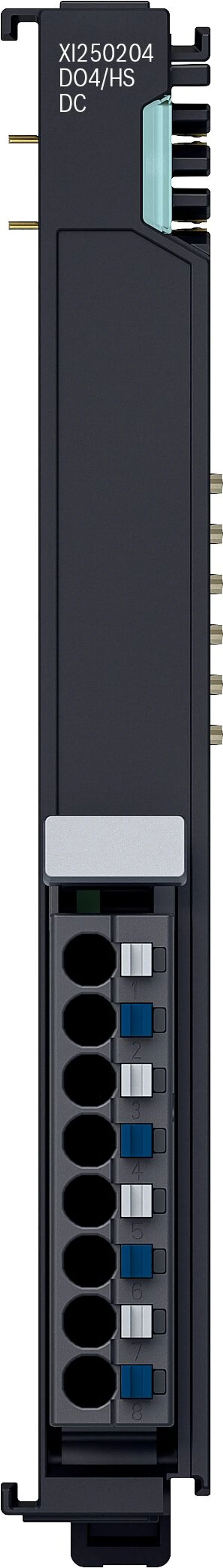

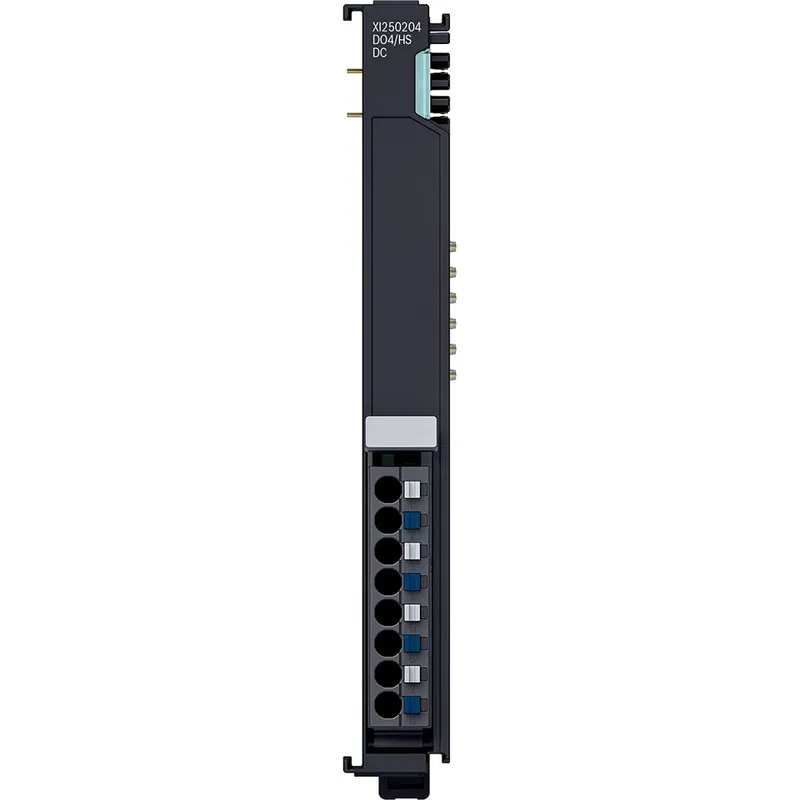

The digital output module XI250204 is used to output binary 24 V control signals in a ctrlX I/O station. The module has 4 channels in a 2-wire technique. The short-circuit-proof push-pull output switches actively to 24 V or 0 V and has a low output delay. The signals are output DC-synchronously. The signal state is shown at the channel LED on the removable peripheral connector. The digital outputs are fed via the 24 V supply from UP. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique
Number of channels	4
Max. output current per channel [A]	0.5
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, output data in the process data image	12 Bytes
Bit width, input data in the process data image (including fill bits)	6 bytes
Maximum current fed into one GND Output Pin [A]	0.5
Maximum current fed into all GND Output Pins of the module [A]	2
Maximum power dissipation in the module [W]	1.805
Inductive switch-off energy	Max. 150 mJ
Nominal load [Ohm]	48
Channel LEDs	Per channel
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Rise time (TRise)	0.33 µs
Fall time (TFALL)	0.3 µs
Feedback voltage resistance	Not resistant to feedback, external measures required
Current requirement UL	35 mA
Net current module outputs [A]	2
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Nominal output voltage [V DC]	24
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	Granular switch-off with automatic restart
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.11
