Bosch Rexroth R911421640

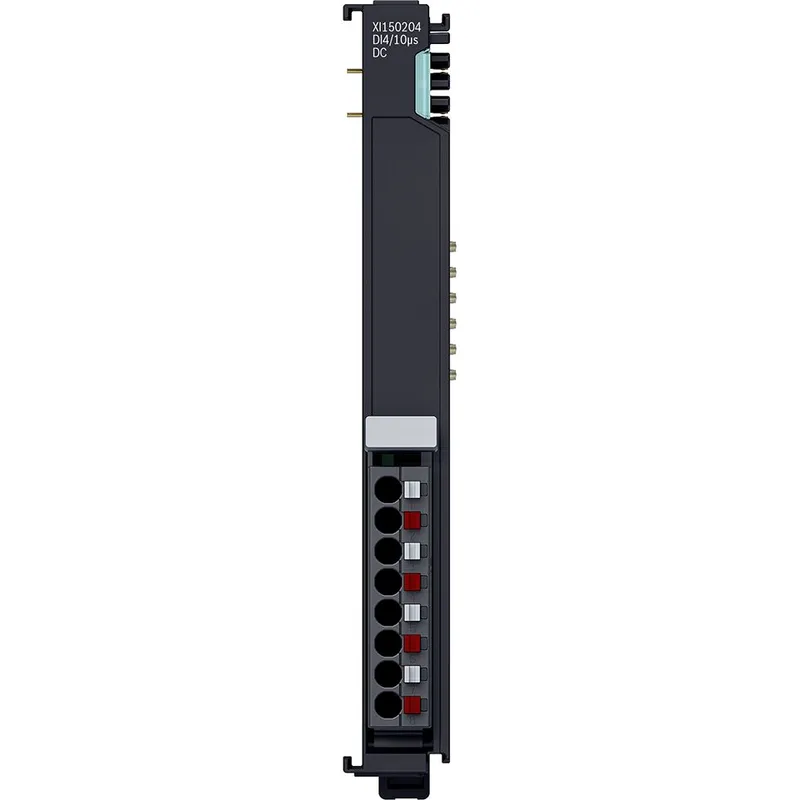

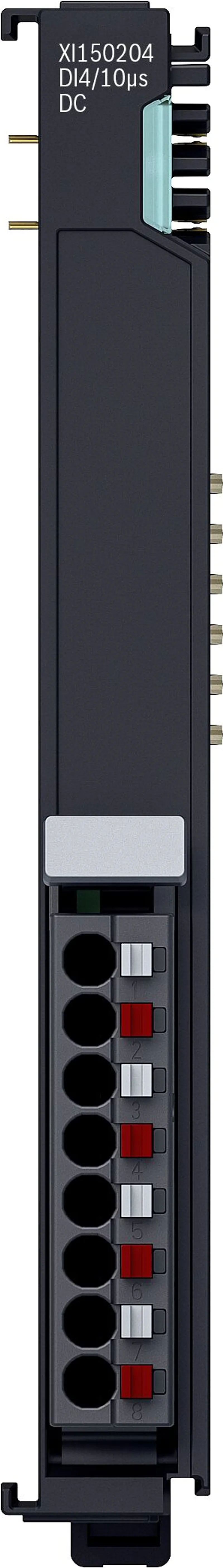

DIGITAL INPUT MODULE XI150204

MPN: R911421640
Category: XI1 Digital Inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911421640?

The digital input module XI150204 is used to detect binary 24 V control signals in a ctrlX I/O station. The module has four channels in a 2-wire technique. The fast input filter of 10 µs results in short delays during detection. The inputs are detected DC-synchronously. The signal state is shown at the channel LED on the removable peripheral connector.

The logic and peripheral supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique
Number of channels	4
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, input data in the process data image (including fill bits)	1 byte
Maximum power dissipation in the module [W]	1.34
Input filter	0.01 ms
Inverse polarity protection up to [V]	30
Fuse protection (UOUT24 V)	Internal with a protective fuse
Channel LEDs	Per channel
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Current requirement UL	28 mA
Current requirement Up	20 mA
Max. current up per terminal point [A]	1
Max. net current Up module [A]	2
Input current [mA]	2.4
Signal voltage "0" [V]	-3-5
Signal voltage "1" [V]	11-30
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Nominal input voltage [V DC]	24
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.11
