Bosch Rexroth R911421016

COMMUNICATION MODULE XI522001

MPN: R911421016
Category: XI5 Communication Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911421016?

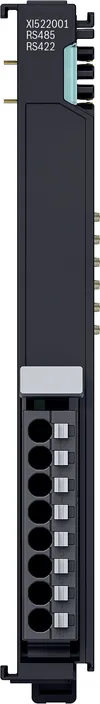

The XI522001 communication module allows to connect devices with an RS485 or RS422 interface in a ctrlX I/O station. The serial communication works independently of the superordinate bus system in full- or half-duplex mode with up to 250 kBaud. Receive buffer and transmit buffer, each with 511 bytes, enable the rapid transmission and reception of larger cohesive data.

The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique, shielded, twisted in pairs
Number of channels	1
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Bit width, output data in the process data image	32 Bytes
Bit width, input data in the process data image (including fill bits)	36 bytes
Maximum power dissipation in the module [W]	1.32
Fuse protection (UOUT24 V)	Auto switch-off at overload
Channel LEDs	Display data transfer for RX and TX
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Current requirement UL	40 mA
Current requirement Up	20 mA + load
Max. current up per terminal point [A]	0.5
Max. net current Up module [A]	0.5
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Signal type	ANSI/TIA/EIA-485-A & ANSI/TIA/EIA-422-B
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.11
