XI5 Communication Modules Parts
Compare XI5 Communication Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum power dissipation in the module [W] | Current requirement UL | Current requirement Up | Signal type | Weight [kg] |
|---|---|---|---|---|---|

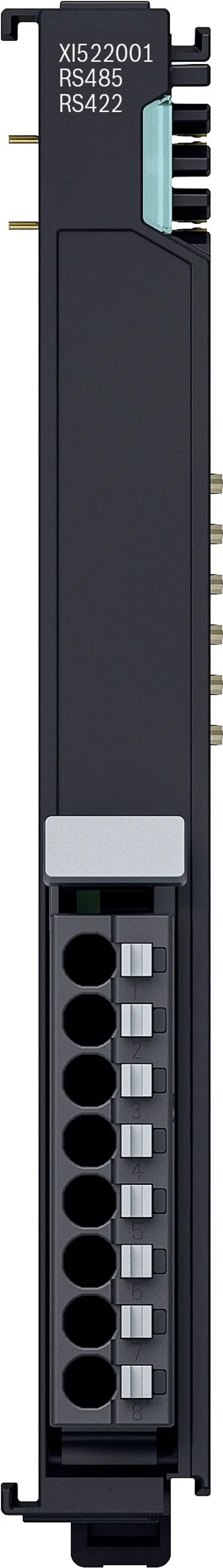

| R911421016 | 1.32 | 40 mA | 20 mA + load | ANSI/TIA/EIA-485-A & ANSI/TIA/EIA-422-B | 0.11 |

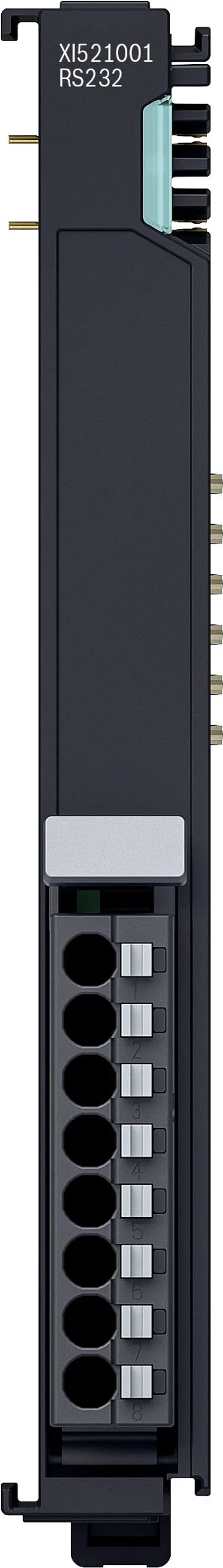

| R911421015 | 1.32 | 40 mA | 20 mA + load | ANSI EIA/TIA-232-F | 0.11 |
| R911423593 | 2.5 | 36 mA | 215 mA | Meter bus (M-Bus) | 0.12 |
Common to all listed parts
| Connection type | Push-in |
| Number of channels | 1 |
| Width [mm] | 12 |
| Height [mm] | 105 |
| Depth [mm] | 99 |
| International protection code | IP20 |
| Protection class | III |
| Backplane-Bus | Standard-EtherCAT über LVDS |
