INTERFACE MODULE XI824116

MPN: R911406122
Category: XI8 System Modules

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R911406122?

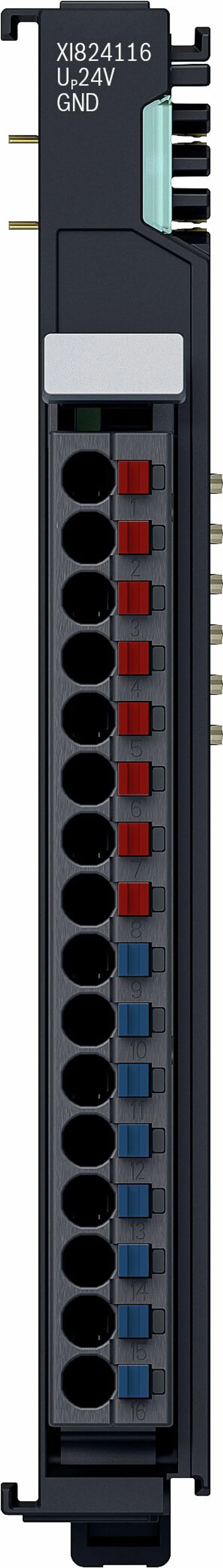

The potential distribution module XI824116 is used to discharge 24 V and GND from the periphery circuit (UP). The module is equipped with 8 connection points without state display per potential on a removable periphery connector and is not part of the local bus.

The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Number of channels	16
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Maximum current fed into one GND Output Pin [A]	1
Maximum current fed into all GND Output Pins of the module [A]	4
Maximum power dissipation in the module [W]	0.52
Fuse protection (UOUT24 V)	Internal with a protective fuse
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Current requirement Up	4 A
Max. current up per terminal point [A]	1
Max. net current Up module [A]	4
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.12
