INTERFACE MODULE XI841000

Name: INTERFACE MODULE XI841000
Brand: Bosch Rexroth
SKU: R911406126

MPN: R911406126 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XI8 System Modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911406126 be shipped?

R911406126 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911406126 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911406126 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911406126, subject to availability and destination.

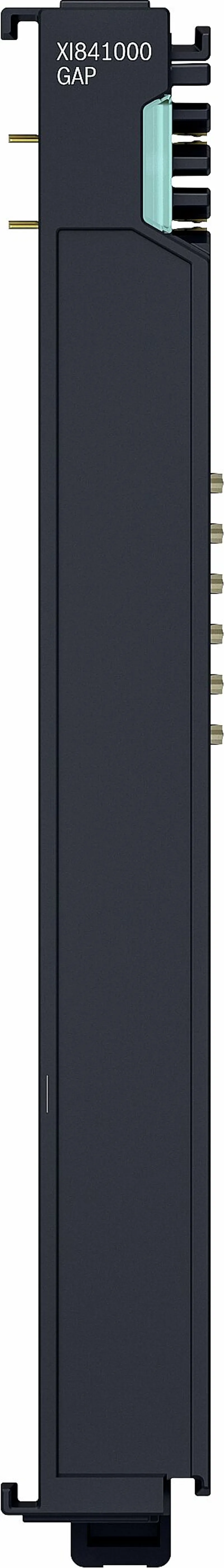

The empty housing module XI841000 is used as placeholder for 12 mm modules within a ctrlX I/O station. The module is designed without state display and without removable periphery plug and is not a device in the local bus. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Width [mm]	12
Height [mm]	105
Depth [mm]	85
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
EMC resistance	EN 61000-6-2 and EN 61000-6-4
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Current requirement Up	4 A
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +50 °C; 3,000 m to 4,000 m: -25 °C to +45 °C; 4,000 m to 5,000 m: -25 °C to +40 °C; Up to 2,000 m: -25 °C to +55 °C
Maximum operating altitude [m]	5000
Contamination level	2, no condensation
Weight [kg]	0.1
