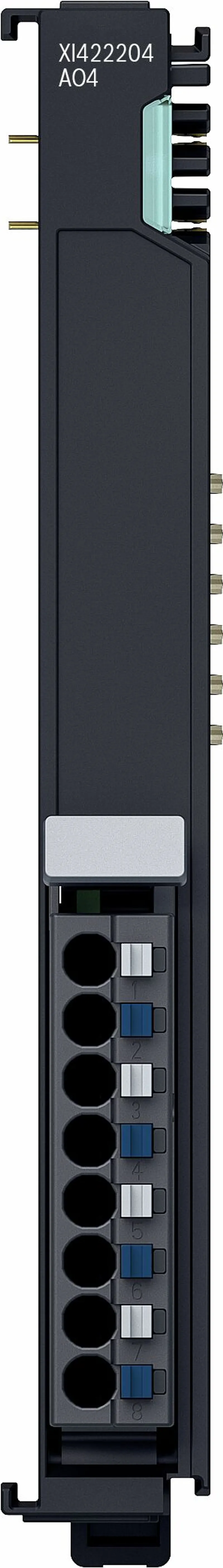

ANALOG OUTPUT MODULE XI422204

Name: ANALOG OUTPUT MODULE XI422204
Brand: Bosch Rexroth
SKU: R911406117

MPN: R911406117 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	XI4 Analog Outputs
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R911406117 be shipped?

R911406117 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R911406117 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R911406117 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R911406117, subject to availability and destination.

The analog output module XI422204 creates output signals in the range from -10 to +10 V in a ctrlX I/O station. The output signal is output galvanically isolated from the system level with a resolution of 16 bits. The four output channels have a common mass potential. The output stages are fed via the 24 V supply from UP. <br><br>The logic and peripheral voltage supply as well as the EtherCAT-based module communication are routed through the module.

Specifications

Connection type	Push-in
Connectivity technology	2-wire technique bipolar, shielded, twisted in pairs
Number of channels	4
Max. output current per channel [A]	0.002
Voltage supply	UP via jumper contacts
Width [mm]	12
Height [mm]	105
Depth [mm]	99
International protection code	IP20
Protection class	III
Backplane-Bus	Standard-EtherCAT über LVDS
Process data update [µs]	250
Resolution D/A	16 Bit
EMC resistance	EN 61000-6-2 and EN 61000-6-4 Class A - Industrial area
Accuracy	typ. ± 0.1% of the end value of the measuring range (MBE) max. ± 0.25% of MBE (depending on load, aging and temperature drift)
Bit width, output data in the process data image	8 bytes (can be set channel-granularly)
Bit width, input data in the process data image (including fill bits)	10 bytes in the standard representation 2 bytes in the "compact" representation (Can be set channel-granularly)
A/D conversion time	290 µs
Maximum power dissipation in the module [W]	2.45
Post-assembly position	Vertical, on a horizontal support rail
Electrical isolation	1200 V DC UP to UL, 707 V DC UP/UL to FE, both tested for 60 s;(not evaluated by UL)
Current requirement UL	max. 40 mA
Current requirement Up	max. 55 mA
Net current module outputs [A]	0.008
Nominal voltage (UL/UP)	DC 24 V (19.2 V to 30 V, including tolerance and residual ripple) PELV/SELV (safety extra-low voltage)
Overvoltage category	2
Output signal	-10-10 V
Output load voltage [kΩ]	≥5
Signal type	bipolar
Conductor cross-section	AWG: 24 ... 16; Flexible: 0.2-1.5 mm²; rigid: 0.2-1.5 mm²
Overload protection	Yes
Permissible air humidity (storage) [%]	10-95
Permissible air humidity (transport) [%]	10-95
Ambient temperature (storage and transport) [°C]	-40-70
Ambient temperature during operation	2,000 m to 3,000 m: -25 °C to +40 °C; Up to 2000 m: -25°C to +45°C
Maximum operating altitude [m]	3000
Contamination level	2, no condensation
Weight [kg]	0.12
