Cam roller guide rails Parts
Compare Cam roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Mass m (kg/m) [kg/m] | Dimension 2nd grade area moment, y-axis ly [mm⁴] | Dimension 2nd grade area moment, z-axis lz [mm⁴] | Dimension section modulus, y-axis Wy [mm³] | Dimension section modulus, z-axis Wz [mm³] |
|---|---|---|---|---|---|

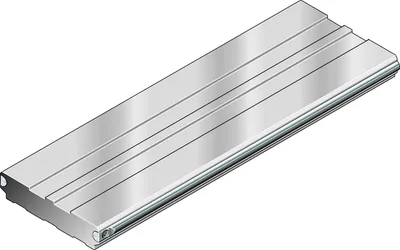

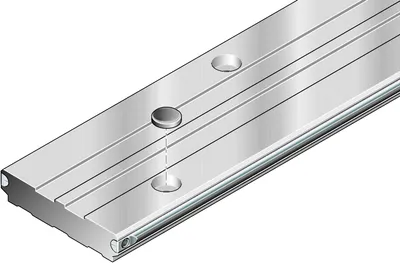

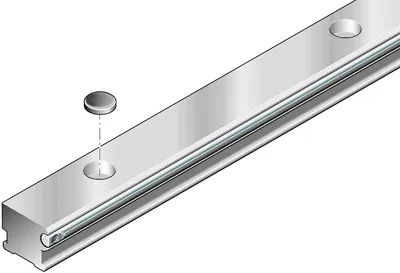

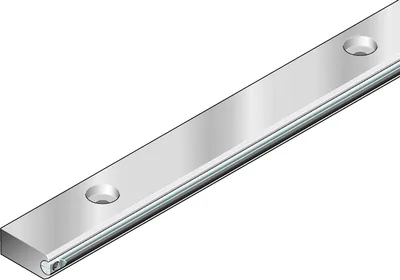

| R192715231 | 7.8 | 119636 | 2378777 | 2099 | 41733 |
| R192705231 | 7.8 | 119636 | 2378777 | 2099 | 41733 |
| R192545231 | 3.5 | 105926 | 111856 | 5985 | 5251 |
| R192645231 | 2.3 | 18142 | 68209 | 2016 | 3202 |
| R192445231 | 3.1 | 20750 | 91104 | 2306 | 3961 |
| R192145231 | 4.4 | 117945 | 148971 | 6701 | 6477 |
| R192525231 | 3.5 | 105926 | 111856 | 5985 | 5251 |
| R192625231 | 2.3 | 18142 | 68209 | 2016 | 3202 |
| R192425231 | 3.1 | 20750 | 91104 | 2306 | 3961 |
| R192125231 | 4.4 | 117945 | 148971 | 6701 | 6477 |

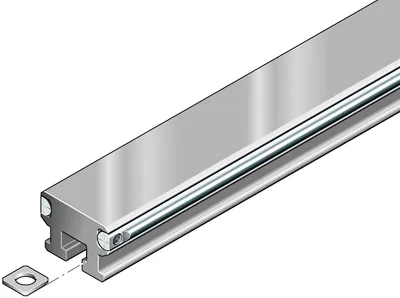

| R192205231 | 3.6 | 82725 | 140984 | 4596 | 6130 |

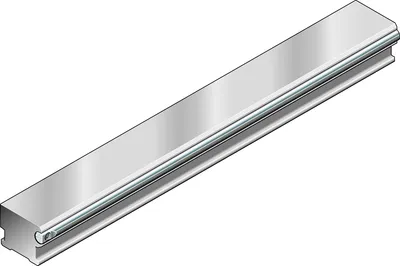

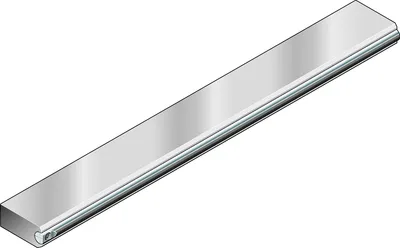

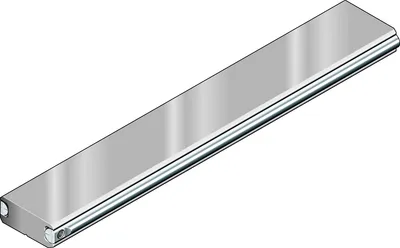

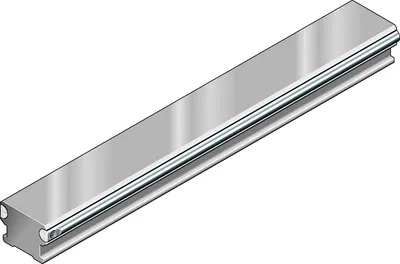

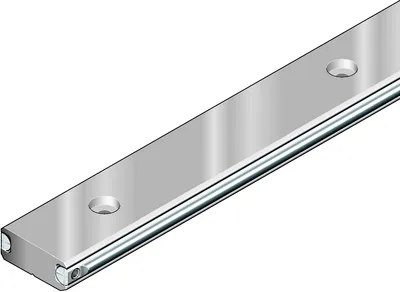

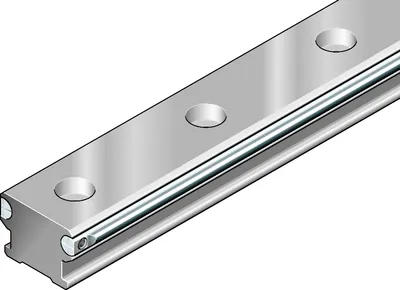

| R192505231 | 3.5 | 105926 | 111856 | 5985 | 5251 |
| R192605231 | 2.3 | 18142 | 68209 | 2016 | 3202 |
| R192405231 | 3.1 | 20750 | 91104 | 2306 | 3961 |
| R192105231 | 4.4 | 117945 | 148971 | 6701 | 6477 |
| R192515231 | 3.5 | 105926 | 111856 | 5985 | 5251 |
| R192615231 | 2.3 | 18142 | 68209 | 2016 | 3202 |
| R192415231 | 3.1 | 20750 | 91104 | 2306 | 3961 |
| R192115231 | 4.4 | 117945 | 148971 | 6701 | 6477 |

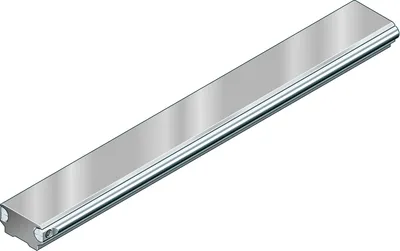

| R192104231 | 2.68 | 19628 | 78534 | 1722 | 4363 |
| R192114231 | 2.68 | 19628 | 78534 | 1722 | 4363 |
| R192523231 | 1.3 | 13182 | 14724 | 1255 | 1115 |
| R192623231 | 0.8 | 1913 | 8841 | 383 | 665 |
| R192423231 | 1.1 | 2163 | 11412 | 433 | 804 |
Common to all listed parts
| Version | Cam roller guide |
| Note: maximum length Lmax | Guide tracks up to 3500 mm are made of one-piece precision steel shafts. |
| Operating temperature (min. … max.) | -20 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n• T‒ 4 mm |
| Maximum operating temperature [°C] | +80 |
| Minimum operating temperature [°C] | -20 |
| Dimension L [mm] | 3500 |
