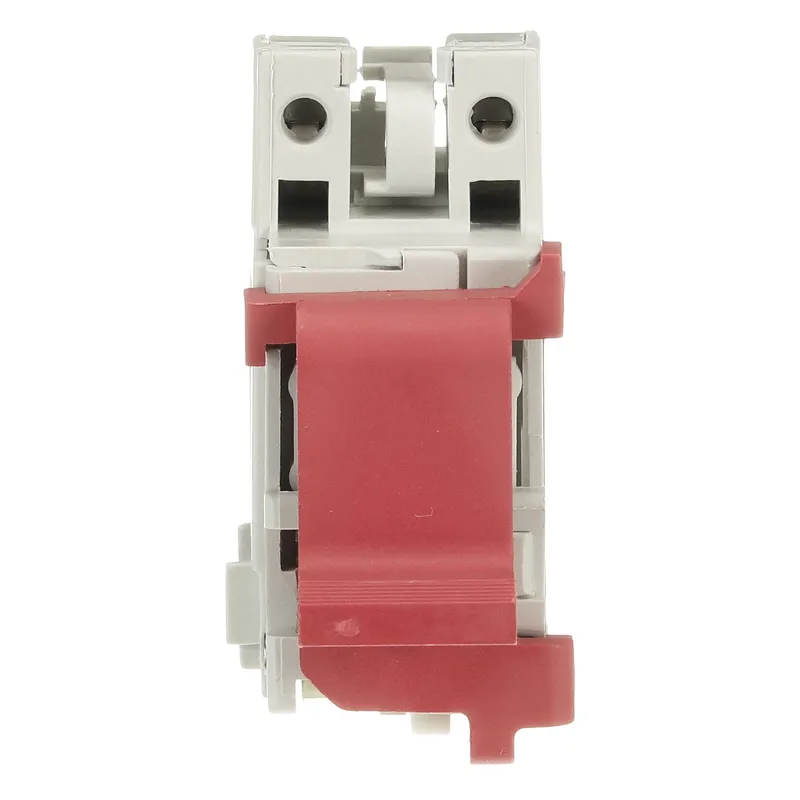

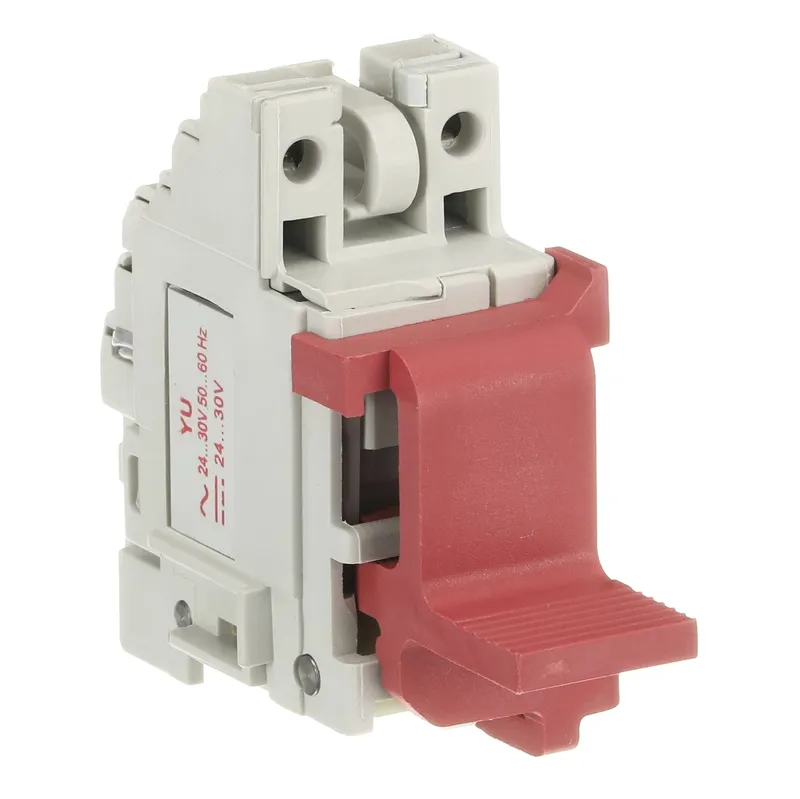

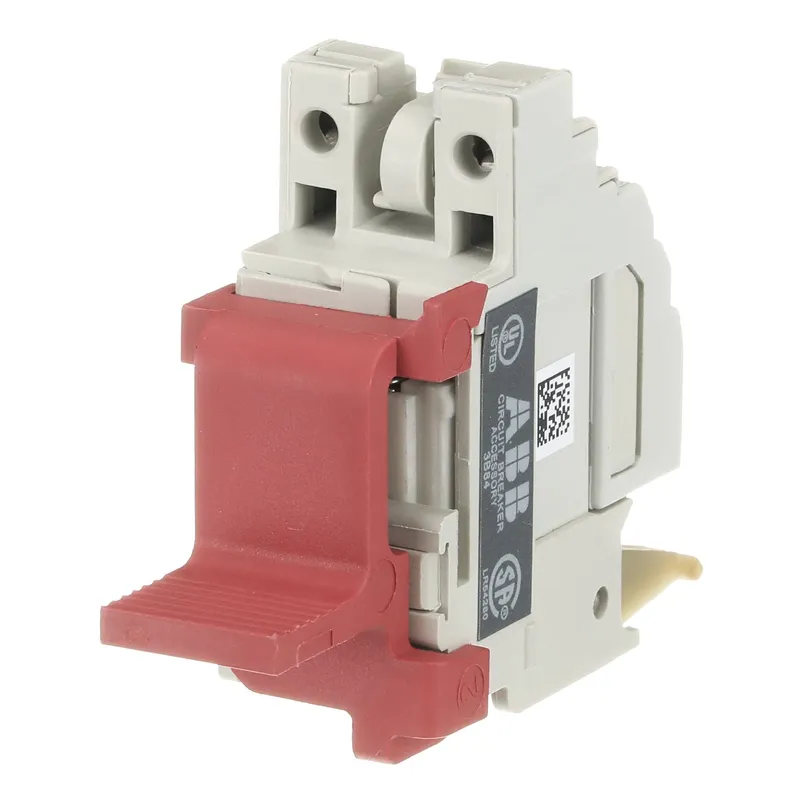

UVR XT1..XT4 24-30 Vac/dc
MPN: 1SDA066389R1 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | IRC5 Single |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.11 kg |
Shipping & availability
When can 1SDA066389R1 be shipped?
1SDA066389R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SDA066389R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SDA066389R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA066389R1, subject to availability and destination.
UNDERVOLTAGE RELEASE 24...30V AC-DC XT1..XT4
Specifications
ABB EcoSolutions
| Environmental Product Declaration - EPD | 9AKK108470A3430, 9AKK108470A7420 |
Material Compliance
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Environmental
| Environmental Information | 9AKK108467A6707 |
Ordering
| Order Code US and Canada | KXTAUVR1 |
| E-Number (Finland) | 3638717 |
| E-Number (Norway) | 4381347 |
| EAN | 8015644692506 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Weight | 0.109 kg kg |
Container Information
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm mm |
| Package Level 1 Height | 60 mm mm |
| Package Level 1 Depth / Length | 140 mm mm |
| Package Level 1 Gross Weight | 0.115 kg kg |
| Package Level 1 EAN | 8015644692506 |
Additional Information
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT1, XT2, XT3, XT4 |
| Suitable for Product Class | SACE Tmax XT |
Technical
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Order Multiple | 1 piece |
| Rated Voltage (Ur) | 24 ... 30 V AC, 24 ... 30 V DC V |
| Standards | IEC60947-2, UL489 |
Certificates and Declarations
| Data Sheet, Technical Information | 1SDC210100D0206, 1SDC210099D0206 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0502 |
External Classifications and Standards
| ETIM 9 | EC001022 - Under voltage coil |
| ETIM 10 | EC001022 - Under voltage coil |
| IDEA Granular Category Code (IGCC) | 4148 >> Under voltage coil |
| Object Classification Code | Q |
| UNSPSC | 39121010 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| eClass | V11.1 : 27370417 |
