Inductive Positioning Systems Parts
Compare Inductive Positioning Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Measuring range | Resolution | MTTFd | Dimensions: Length |
|---|---|---|---|---|---|
| PMI40-F90-3EP-IO-V15 | 231920 | 0 ... 40 mm | 50 µm | 365 a | 60.3 mm |

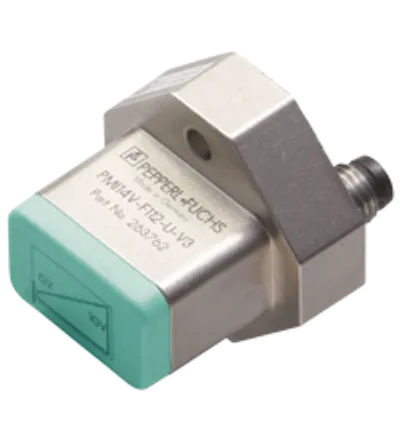

| PMI14V-F112-U-V3 | 263762 | 0 ... 14 mm | 33 µm | 490 a | 35 mm |
| PMI14V-F112-2EPE2-IO-V15 | 263764 | 0 ... 14 mm | 33 µm | 490 a | 35 mm |

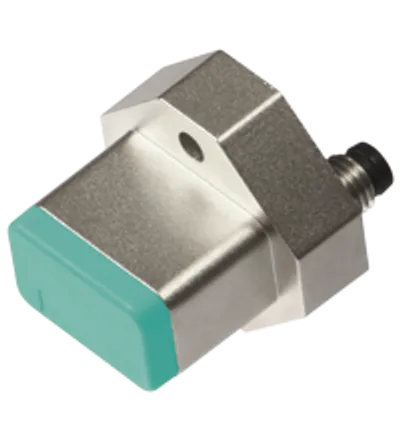

| PMI14V-F112-2EP-IO-V31 | 263759 | 0 ... 14 mm | 33 µm | 490 a | 35 mm |
| PMI14V-F112-2EPE2-IO | 263758 | 0 ... 14 mm | 33 µm | 490 a | 35 mm |
| PMI810-F110-IU-V1 | 197524 | 0 ... 810 mm | 950 µm | 127 a | 867 mm |
| PMI360-F110-IU-V1 | 191141 | 0 ... 360 mm | 360 µm | 241 a | 417 mm |
| PMI210-F110-IU-V1 | 191142 | 0 ... 210 mm | 210 µm | 337 a | 267 mm |

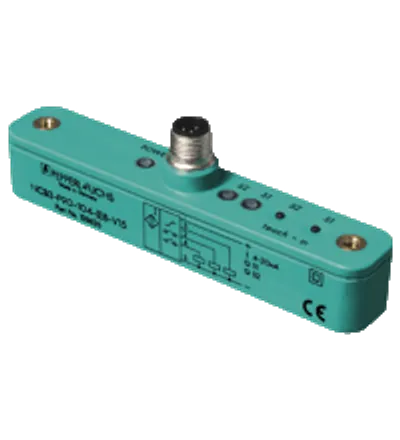

| PMI120-F90-IE8-V15 | 191139 | 0 ... 120 mm | 125 µm | 270 a | 142 mm |
| PMI104-F90-IE8-V15 | 191138 | 0 ... 104 mm | 125 µm | 280 a | 126 mm |
| PMI80-F90-IE8-V15 | 191137 | 0 ... 80 mm | 125 µm | 300 a | 102 mm |

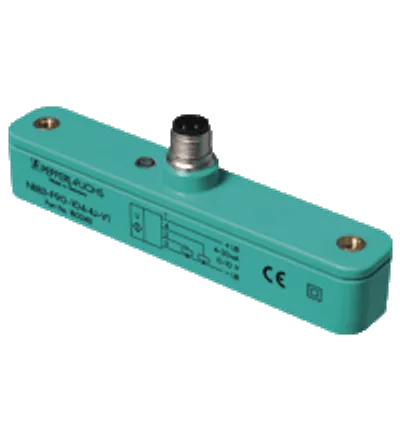

| PMI120-F90-IU-V1 | 191136 | 0 ... 120 mm | 125 µm | — | 142 mm |
| PMI104-F90-IU-V1 | 191135 | 0 ... 104 mm | 125 µm | 320 a | 126 mm |
| PMI80-F90-IU-V1 | 191134 | 0 ... 80 mm | 125 µm | 419 a | 102 mm |
| PMI510-F110-IU-V1 | 205697 | 0 ... 510 mm | 550 µm | 183 a | 567 mm |
| PMI360DV-F130-3E2-V15 | 215314 | max. 360° min. 5° | 0.2 ° | 450 a | 120 mm |
| PMI360DV-F130-IU2E2-V15 | 215316 | max. 360° min. 45° | 0.2 ° | 450 a | 120 mm |

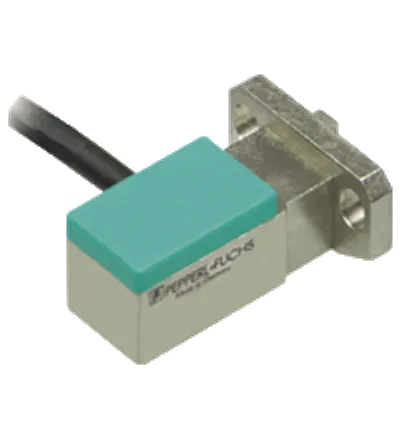

| PMI14V-F166-U-1M-V15-Y215628 | 215628 | 0 ... 14 mm | 33 µm | — | 40 mm |
| PMI14V-F166-U-1M-Y215627 | 215627 | 0 ... 14 mm | 33 µm | — | 40 mm |
| PMI14V-F112-U-IO-V31 | 263760 | 0 ... 14 mm | 33 µm | 490 a | 35 mm |

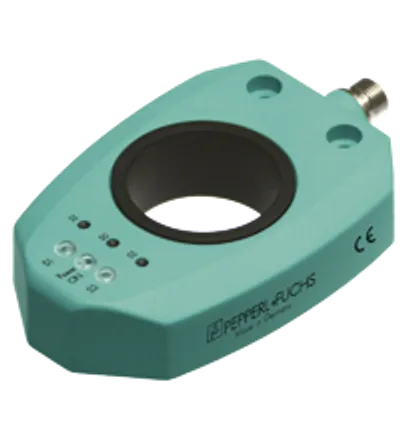

| PMI360D-F130-IE8-V15 | 199092 | 360° | 0.4° | 265 a | 120 mm |

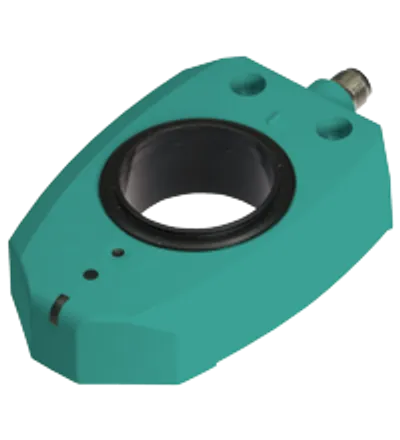

| PMI360DV-F130-IU-V15 | 215315 | max. 360° min. 45° | 0.2 ° | 450 a | 120 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Reverse polarity protection | reverse polarity protected |
