Inductive Positioning Systems Parts
Compare Inductive Positioning Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Measuring range | MTTFd | Connection type | Dimensions: Length |
|---|---|---|---|---|---|

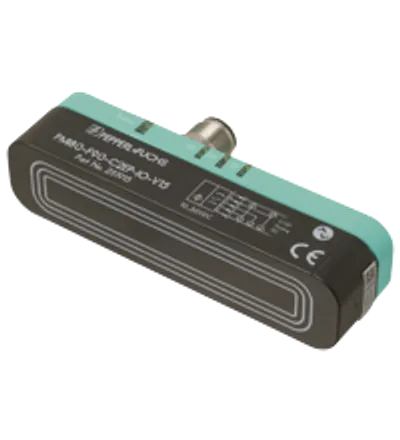

| PMI80-F90-IU-IO-V15 | 315192 | 0 ... 80 mm | 311 a | 5-pin, M12 x 1 connector | 95.1 mm |
| PMI120-F90-IU-IO-V15 | 315195 | 0 ... 120 mm | 271 a | 5-pin, M12 x 1 connector | 135.2 mm |

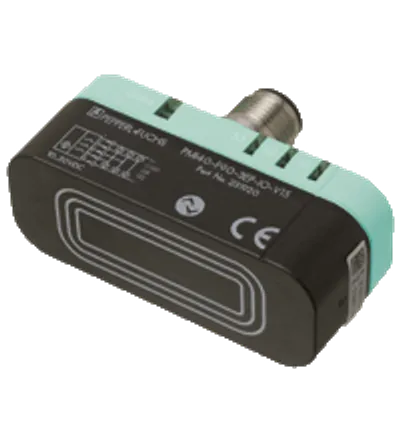

| PMI40-F90-IU-IO-V15 | 315189 | 0 ... 40 mm | 365 a | 5-pin, M12 x 1 connector | 60.3 mm |
| PMI80-F90-IU2EP-IO-V15 | 315193 | 0 ... 80 mm | 311 a | 5-pin, M12 x 1 connector | 95.1 mm |
| PMI40-F90-IU2EP-IO-V15 | 315190 | 0 ... 40 mm | 365 a | 5-pin, M12 x 1 connector | 60.3 mm |
| PMI120-F90-IU2EP-IO-V15 | 315196 | 0 ... 120 mm | 271 a | 5-pin, M12 x 1 connector | 135.2 mm |
| PMI120-F90-IU2EP-IO-V15-Y | 70177117 | 0 ... 120 mm | 271 a | 5-pin, M12 x 1 connector | 135.2 mm |
| PMI15V-F112-EP-IO-V1 | 70147892 | 0 ... 15 mm | 830 a | 5-pin, M12 x 1 connector | 35 mm |
| PMI15V-F166-EP-IO-1M-Y70105596 | 70105596 | 0 ... 15 mm | 830 a | cable | 39 mm |
| PMI15V-F166-EP-IO-1M-V1 | 70105594 | 0 ... 15 mm | 830 a | fixed cable with plug | 39 mm |
| PMI15V-F166-EP-IO | 70105595 | 0 ... 15 mm | 830 a | cable | 39 mm |
| PMI14V-F112-U-200MM-V3 | 316175 | 0 ... 14 mm | — | — | 35 mm |
| PMI14V-F112-U-IO-2M-V31 | 70126735 | 0 ... 14 mm | 490 a | Cable connector | 35 mm |
| PMI40-F90-U-V15 | 70103268 | 0 ... 40 mm | 365 a | 5-pin, M12 x 1 connector | 60.3 mm |
| PMI14V-F112-2EPE2-IO-Y70104219 | 70104219 | 0 ... 14 mm | 490 a | 2 m PUR cable , screened | 35 mm |

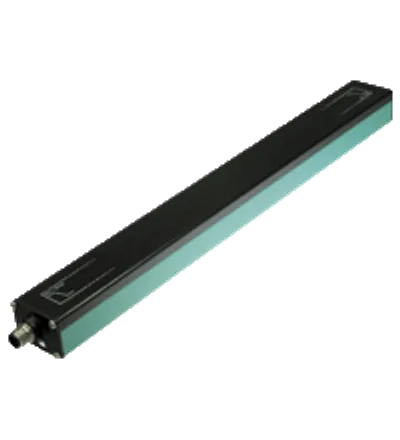

| PMI210-F110-2U-V1-Y70137901 | 70137901 | 0 ... 210 mm | 337 a | 4-pin, M12 x 1 connector | 267 mm |

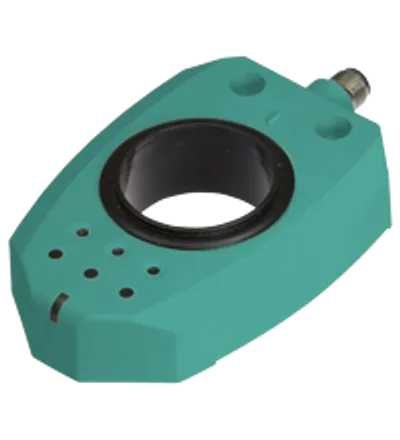

| PMI90DV-F130-I2E2-V15 | 239077 | max. 180° min. 90° | 234 a | 5-pin, M12 x 1 connector | 120 mm |
| PMI14V-F166-U | 238619 | 0 ... 14 mm | 830 a | 5 x 0.14 mm2 , screened 2 m PUR cable | 39 mm |
| PMI14V-F112-U-IO | 263757 | 0 ... 14 mm | 490 a | 2 m PUR cable , screened | 35 mm |
| PMI14V-F166-2E2-1M-V15 | 263348 | 0 ... 14 mm | 880 a | — | 39 mm |
| PMI14V-F166-U-1M-V15 | 263347 | 0 ... 14 mm | 830 a | — | 39 mm |
| PMI14V-F166-2E2 | 238881 | 0 ... 14 mm | 880 a | 5 x 0.14 mm2 , screened 2 m PUR cable | 39 mm |
| PMI120-F90-3EP-IO-V15 | 231922 | 0 ... 120 mm | 271 a | 5-pin, M12 x 1 connector | 135.2 mm |
| PMI80-F90-3EP-IO-V15 | 231921 | 0 ... 80 mm | 311 a | 5-pin, M12 x 1 connector | 95.1 mm |
Common to all listed parts
| Reverse polarity protection | reverse polarity protected |
| Material: Target | mild steel, e. g. 1.0037, SR235JR (formerly St37-2) |
