Optical Linear Positioning Systems Parts
Compare Optical Linear Positioning Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Mass |
|---|---|---|
| P-PROG-R4-USB-Set | 70211445 | — |

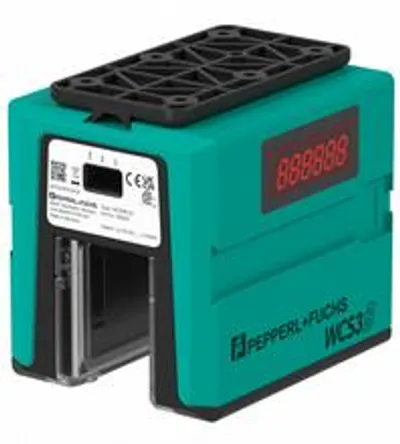

| WCS3B-LS267D | 199290-0043 | — |

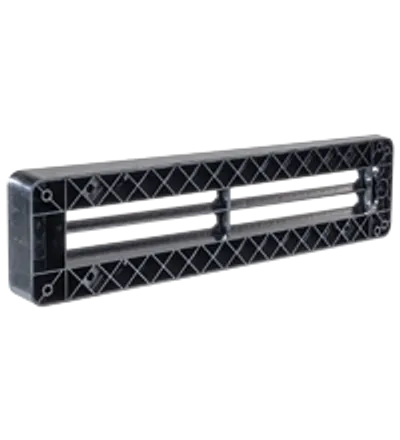

| ShieldScan Spacer Wedge | 70169399 | 77.1 g |

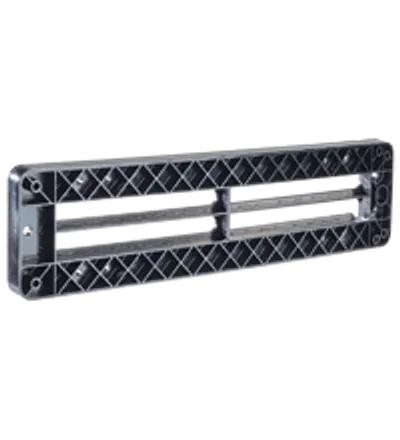

| ShieldScan Spacer Plate | 70166600 | 58.2 g |

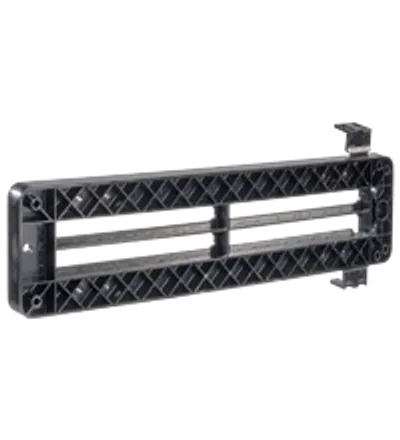

| ShieldScan Glas Door Set | 70137094 | 59.8 g |

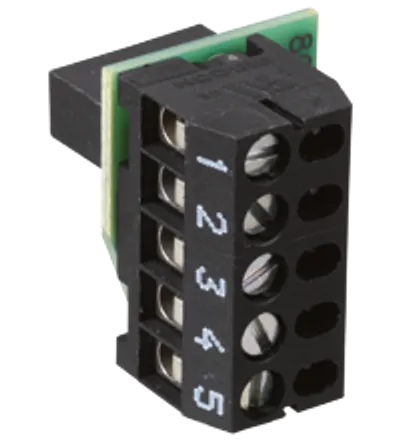

| ShieldScan Cable Adapt SSR/NPN | 70126025 | approx. 4 g |
| PXV*-CA25-* | 299652 | 6.3 g / m |

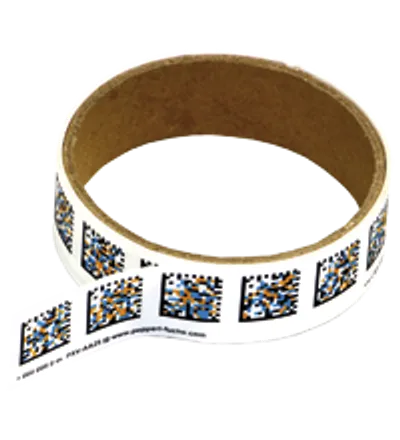

| PXV*-AA25-* | 299651 | 6.3 g / m |

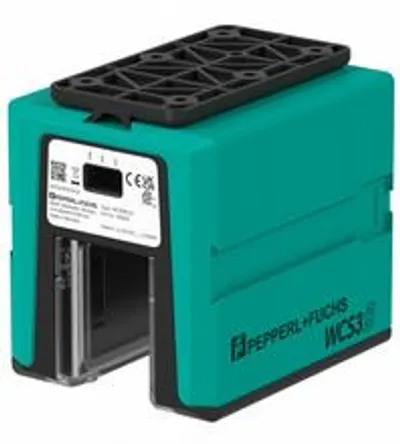

| WCS3B-LS311HS | 199290-0039 | 500 g |

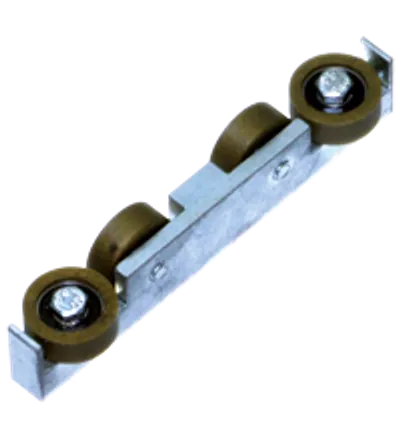

| WCS2-GT-WD-M1 | 185187 | 256 g |
| WCS2-GT-WD-P1 | 184321 | 256 g |

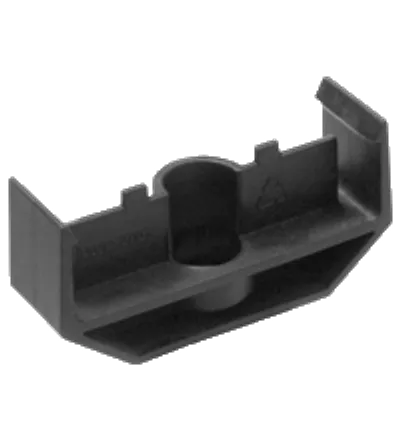

| WCS2-MH | 184641 | 20 g |

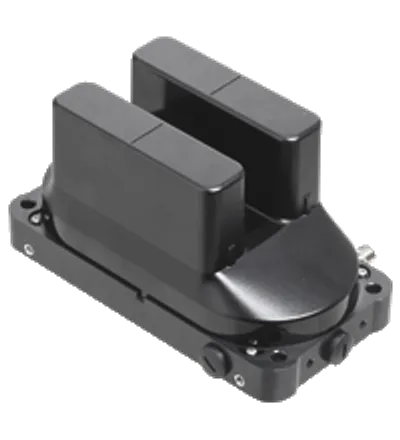

| WCS3B-LS221H-OR | 199290-0046 | 1000 g |

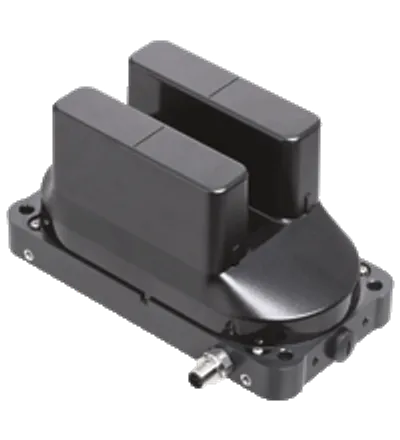

| WCS3B-LS221H-OL | 199290-0047 | 1000 g |
| WCS3B-LS311 | 199290-0026 | 500 g |

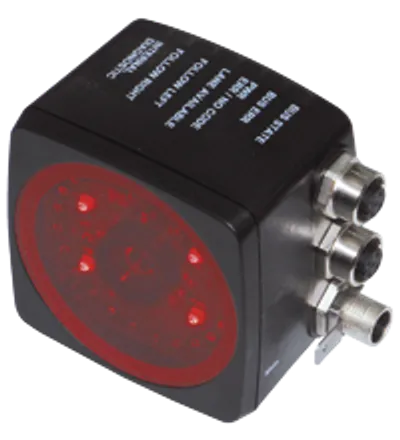

| PXV100I-F200-B25-V1D | 293431-100010 | approx. 200 g |

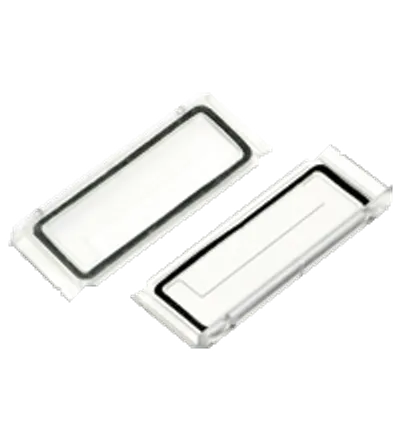

| WCS2-PL2 | 198619 | 35 g |

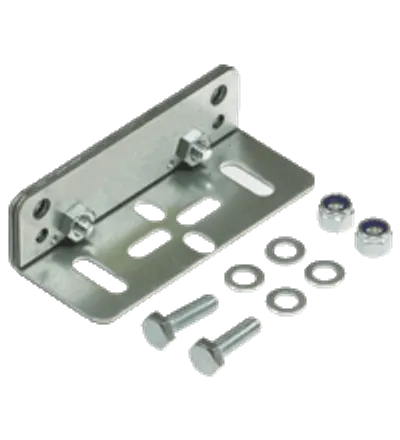

| WCS-MB1 | 184098 | 125 g (without fastening screws) |

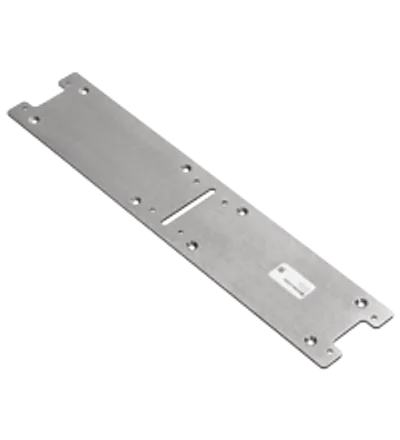

| WCS3-MV1-O | 70187912 | — |

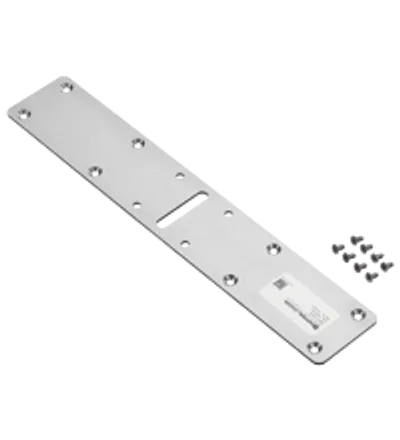

| WCS3-MV1 | 70187911 | — |

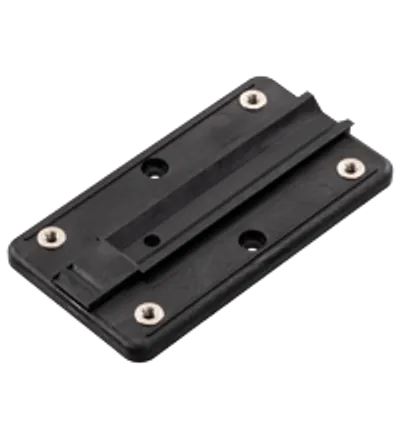

| WCS-MP1-M4 | 70187909 | 35 g |

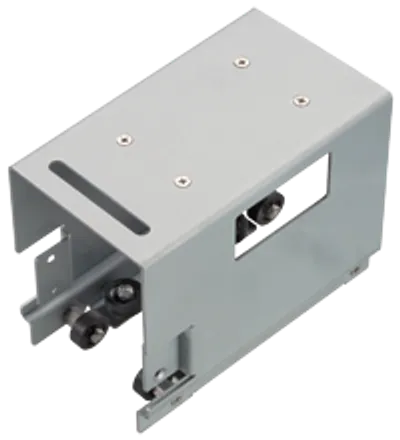

| WCS3-GT09-P1 | 70187910 | 1250 g |

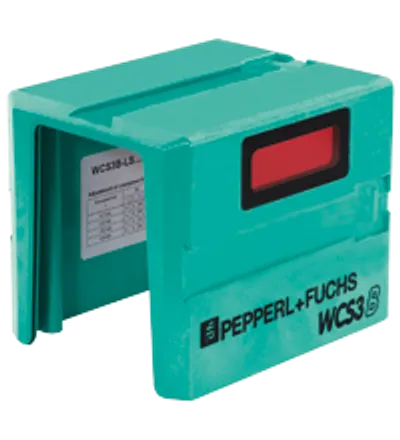

| WCS3B-HSG-GN-D | 262227 | 161 g |

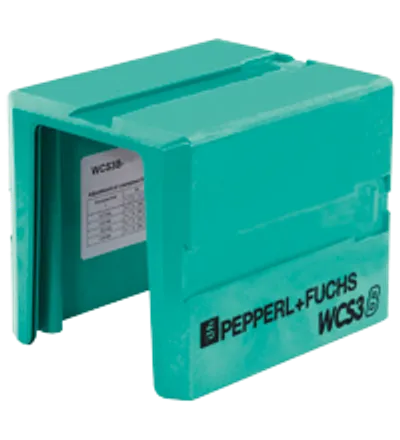

| WCS3B-HSG-GN | 210615 | 161 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
