Optical Linear Positioning Systems Parts
Compare Optical Linear Positioning Systems
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Mass |
|---|---|---|

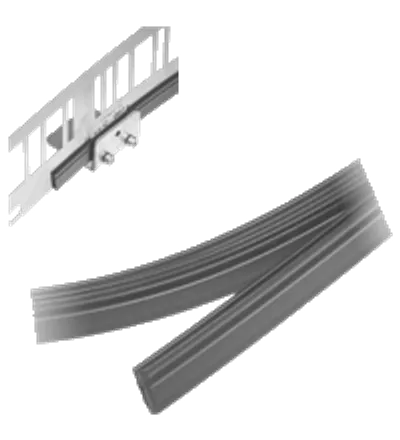

| WCS-SP2-50M | 70182155 | 100 g / m |
| WCS-SP2-10M | 70182154 | 100 g / m |

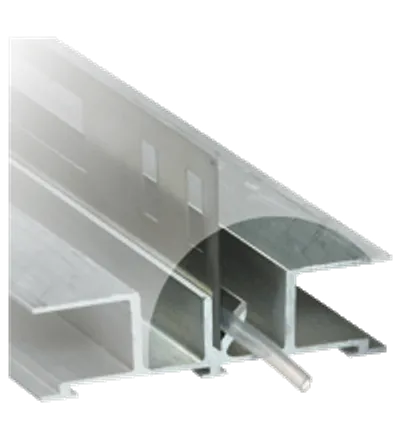

| WCS-MF1-xxx | 70136342 | 5 g / m |

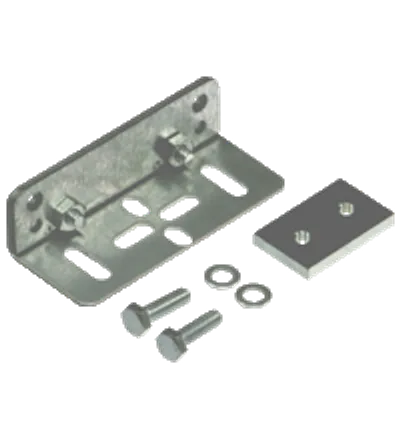

| WCS-MB2-UNI | 909270 | 125 g (without fastening screws) |

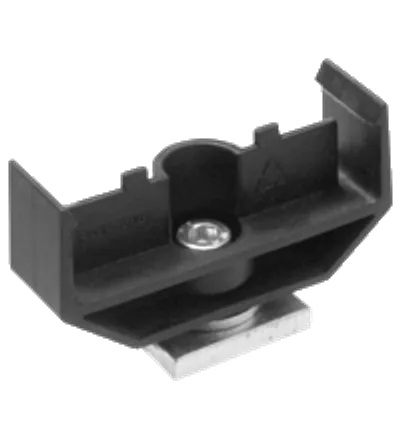

| WCS2-MH2-UNI | 909224 | 20 g |

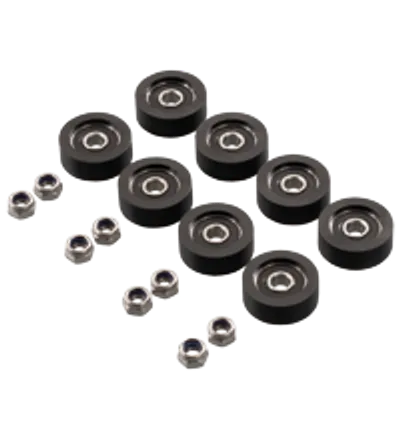

| WCS3-GT-WL-P-SET | 70187913 | 7 g |

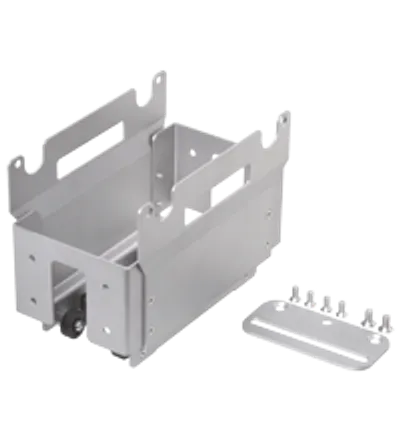

| WCS3-GT09-P1-O | 314553 | 1000 g |

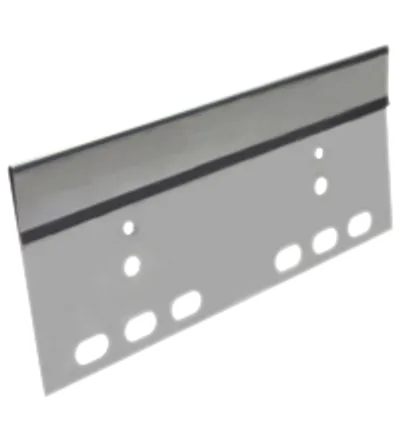

| WCS3-CS70-E | 311314 | 710 g |

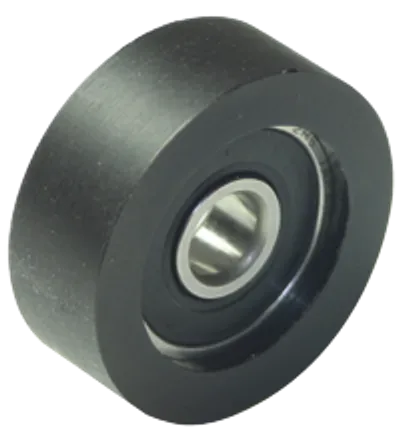

| WCS-GT-WL-P | 311861 | 7 g |

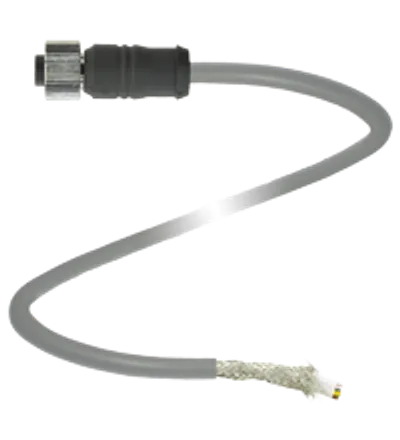

| V19-G-25M-PUR-A5S-WCS | 70123631 | 1588.06 g |

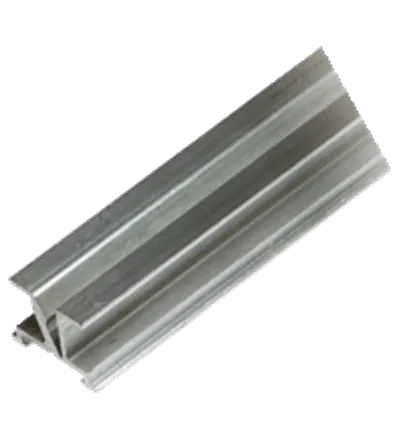

| WCS3-PS1-2M | 189278 | 450 g / m |

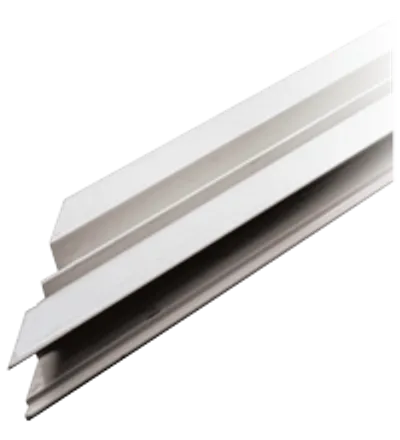

| WCS2-PS1-C-2,5M | 279999 | 1000 g / m |

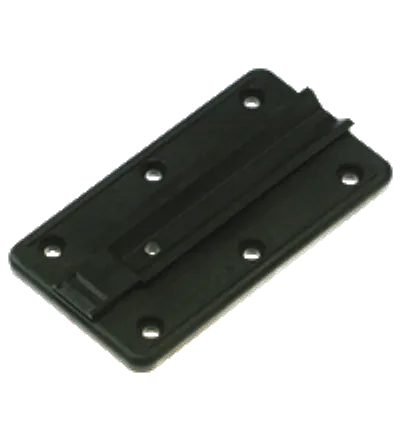

| WCS-MP1 | 197128 | 35 g |

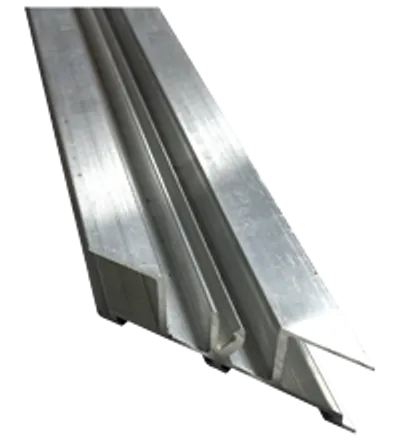

| WCS2-PS1-2,5M | 189277 | 1000 g / m |

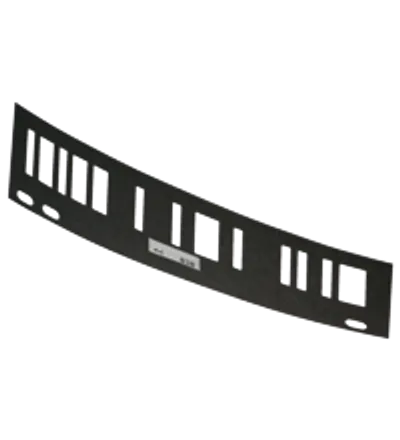

| WCS3-ID70-L1 | 184761 | approx. 10 g |

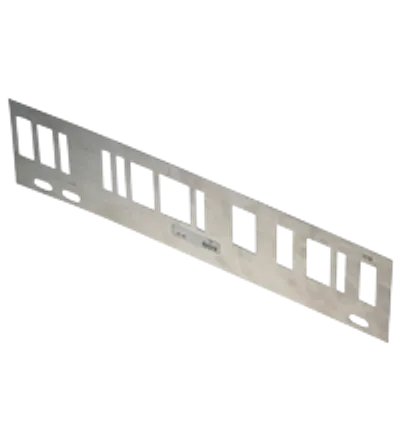

| WCS3-ID70-M1 | 184073 | approx. 60 g |

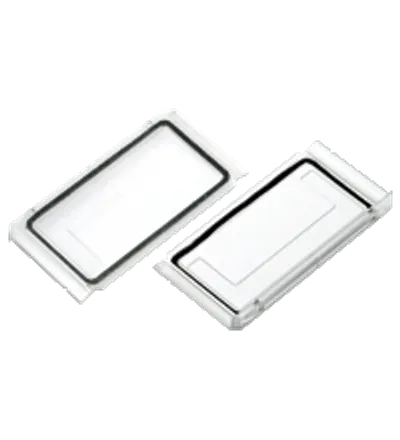

| WCS3B-PL2 | 305274 | 40 g |

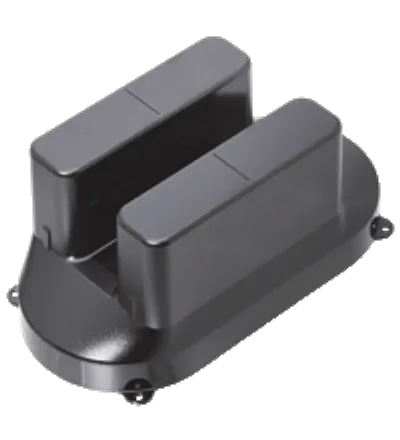

| WCS3B-OPC | 302907 | 200 g |

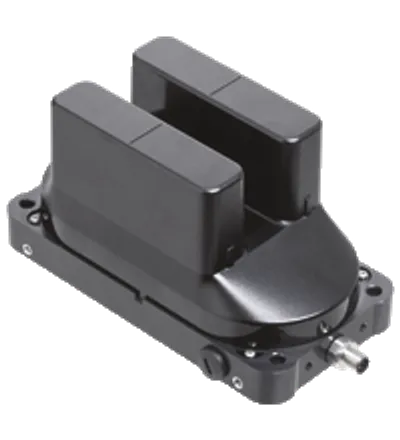

| WCS3B-OPH | 302906 | 750 g |

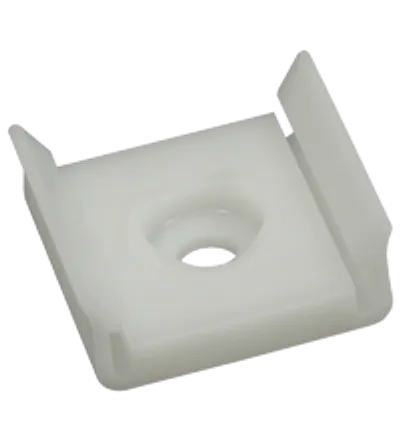

| WCS3-MH | 184711 | 20 g |

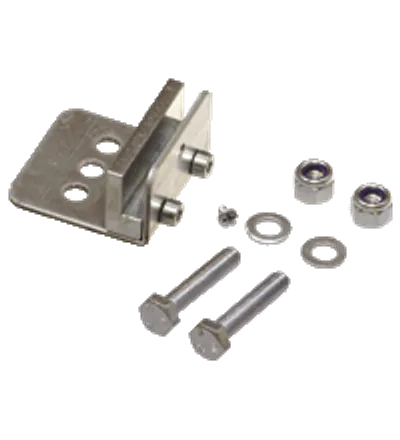

| WCS-MB1-B | 184100 | 85 g (without fastening screws) |

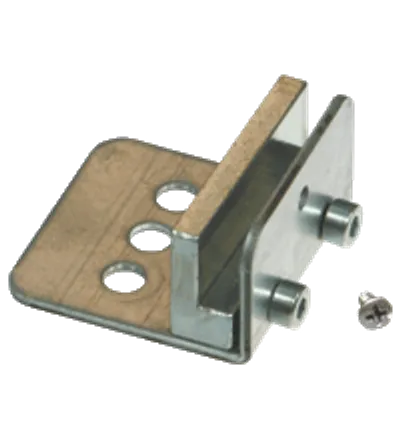

| WCS-MB-B | 184237 | 85 g |

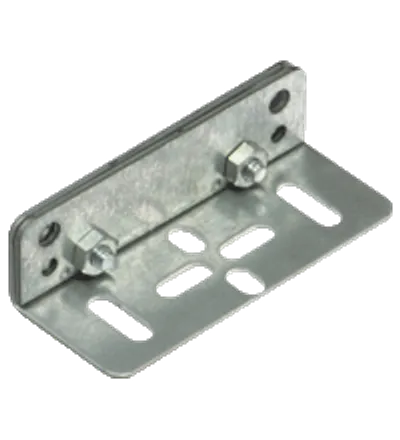

| WCS-MB | 184236 | 125 g |

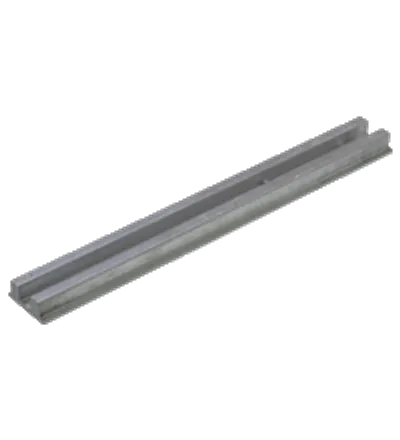

| WCS3-MC1 | 184074 | 100 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
