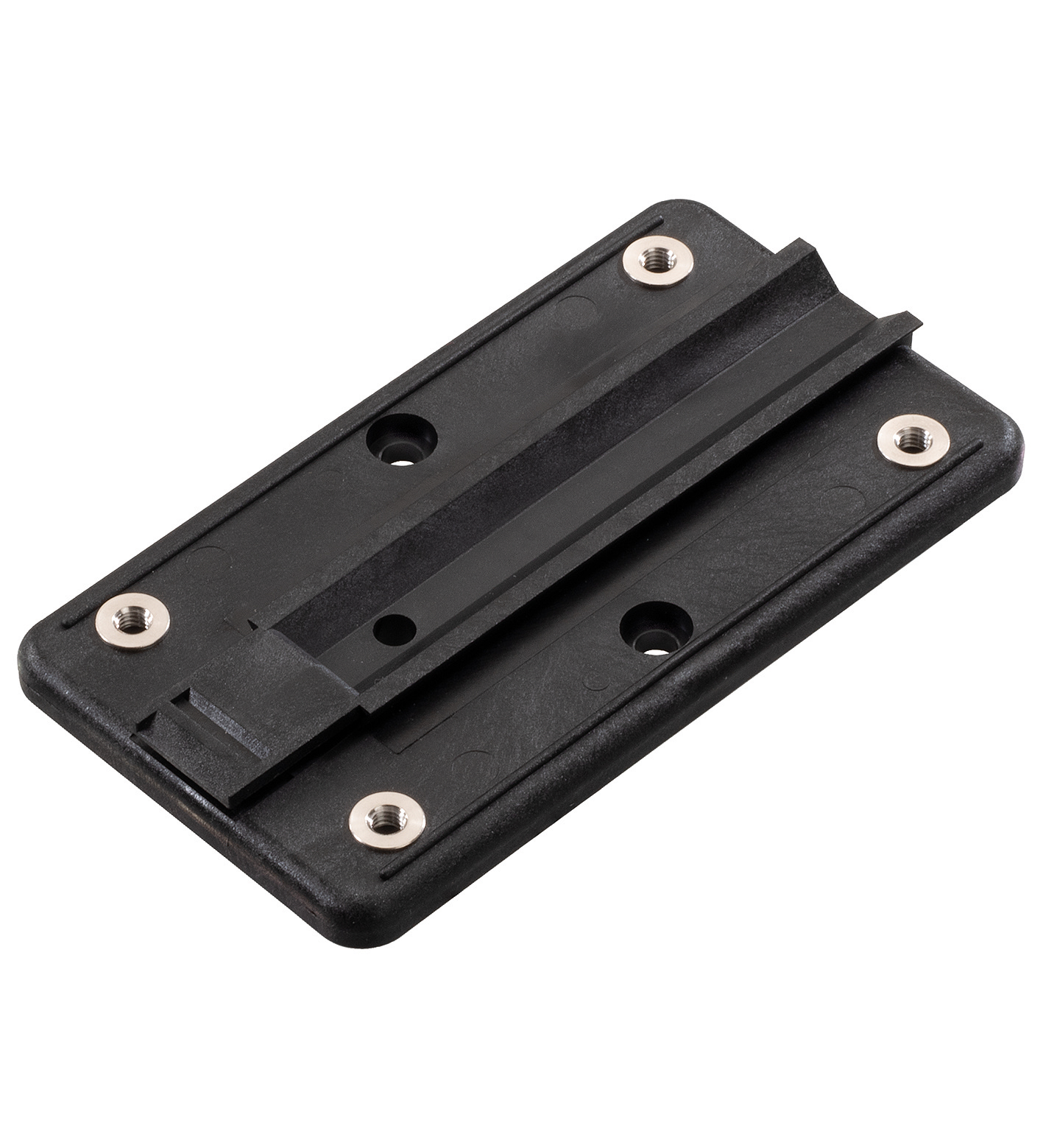

Pepperl Fuchs WCS-MP1-M4
Mounting plate
- MPN
- WCS-MP1-M4
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs WCS-MP1-M4?
Universal mounting plate for all reading heads WCS2... and WCS3...
Mounting Plate with M4 insert nut, Universal mounting plate for all reading heads WCS2... and WCS3...
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70187909 |
| Installation | Mounting plate with dovetail guide for WCS-write heads. Mounting is by using M4 screws which are screwed into the insert nuts of the mounting plate. |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Mechanical specifications
| Material | PA 6 GF35 Grivory |
| Mass | 35 g |
| Dimensions | (W x H x D) 105 mm 58 mm 9.5 mm |
