Optical Linear Positioning Systems Parts

Showing 145–165 of 165 parts

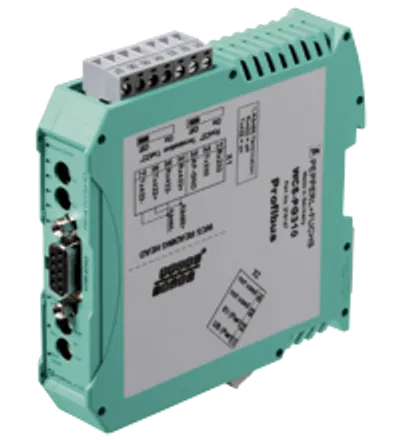

Pepperl Fuchs WCS-PG310 – WCS interface module
Pepperl Fuchs
WCS-PG310

WCS interface module

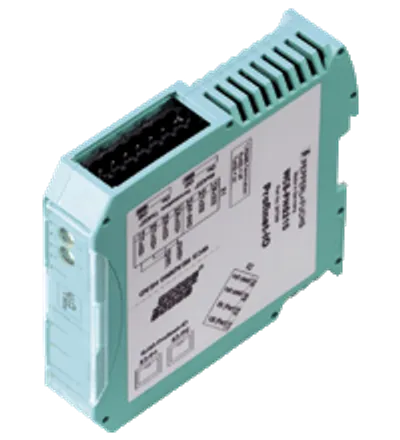

Pepperl Fuchs WCS-PNG210 – WCS interface module
Pepperl Fuchs
WCS-PNG210

WCS interface module

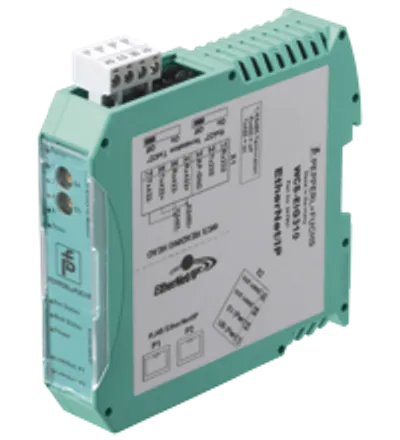

Pepperl Fuchs WCS-EIG310 – WCS interface module
Pepperl Fuchs
WCS-EIG310

WCS interface module

Compare Optical Linear Positioning Systems

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)MTTFdInterface typeEmitted interferenceMass
WCS3B-LS211199290-0006236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS146199290-0004236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS121199290-0003236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS111199290-0001236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS410199290-0029110 aCANopen , galvanically isolatedDIN EN 61000-6-4500 g
WCS-PG310276147180 aPROFIBUS DP V1EN 55011, cl. A: 2007approx. 130 g
WCS3B-LS510262006172 a100 BASE-TXEN 61000-6-4:2007+A1:2011500 g
WCS-PNG210247049180 aEthernet; 100 BASE-TXEN 55011, cl. A: 2007approx. 150 g
WCS-EIG310247901180 aEthernetEN 55011, cl. A: 2007approx. 140 g
WCS3B-LS610262007172 a100 BASE-TXEN 61000-6-4:2007+A1:2011500 g
WCS2B-LS221200779-000866 aRS 485 interfaceDIN EN 61000-6-4500 g
WCS3B-LS311D199290-0027182 aSSI interfaceDIN EN 61000-6-4500 g
WCS3B-LS310D199290-0030182 aSSI interfaceDIN EN 61000-6-4500 g
WCS3B-LS246199290-0017236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS221D199290-0011204 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3B-LS221199290-0010236 aRS 485 interfaceDIN EN 61000-6-4 , DIN EN 12015500 g
WCS3-CS70-M1-S******-L******70135878———240 g / m
WCS3-CS70-L*-S******-L******70135877———40 g / m
WCS2-CS*-M1-S******-L******70135876———175 g / m
WCS2-CS*-L1-S******-L******70135037———30 g / m
WCS2B-HSG-GN213769———161 g

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
