SENTRON 3NP5 Fuse Switch Disconnectors up to 630 A Parts

Siemens 3NP5260-0EB26 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A

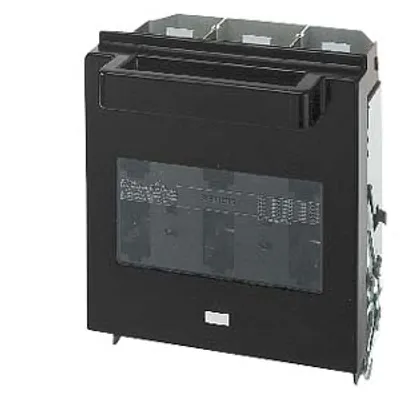

Siemens 3NP5360-0CA00 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH2, 400 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH2, 400 A

Siemens 3NP5260-0EB86 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A

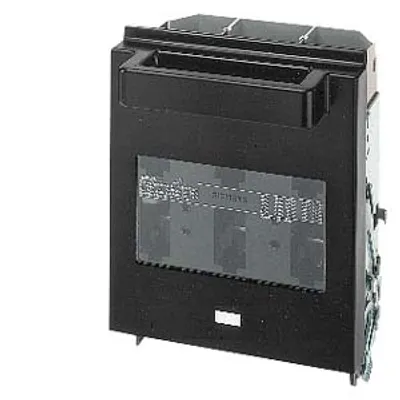

Siemens 3NP5260-0CA00 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A

Siemens 3NP5065-1EG86 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5065-1EG26 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5060-0EB86 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

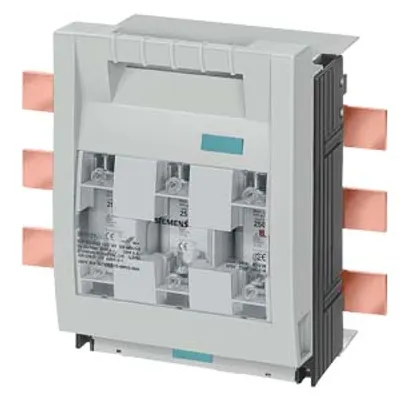

Siemens 3NP5065-1CG00 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

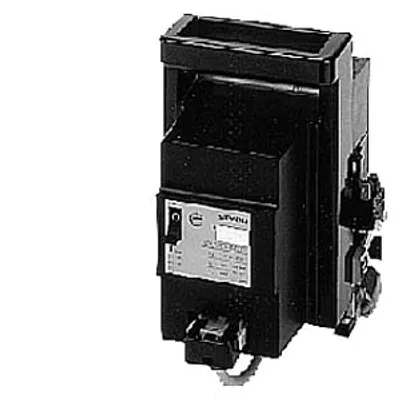

Siemens 3NP5065-1EF86 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5065-1EF26 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5065-1CG10 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5065-1CF10 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

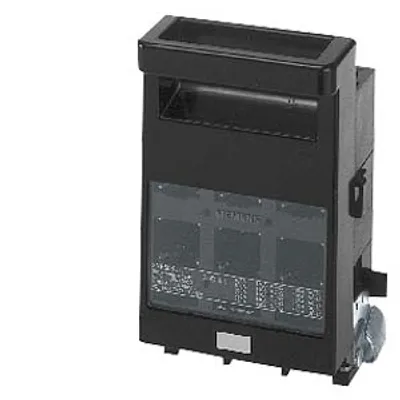

Siemens 3NP5065-1CF00 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Siemens 3NP5060-0CA00 – SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, for assembly and installation on mounting plate

Siemens

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A

Compare SENTRON 3NP5 Fuse Switch Disconnectors up to 630 A

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of disconnecting link	size of fuse link	operational current rated value	depth	Net Weight
3NP5260-0EB26	NH0, NH1	NH0, NH1	250 A	176 mm	6.007 kg
3NP5360-0CA00	NH1, NH2	NH1, NH2	400 A	192 mm	6.365 kg
3NP5260-0EB86	NH0, NH1	NH0, NH1	250 A	176 mm	6.04 kg
3NP5260-0CA00	NH0, NH1	NH0, NH1	250 A	176 mm	5.249 kg
3NP5065-1EG86	NH000, NH00	NH000, NH00	160 A	187.5 mm	2.591 kg
3NP5065-1EG26	NH000, NH00	NH000, NH00	160 A	187.5 mm	2.689 kg
3NP5060-0EB86	NH000, NH00	NH000, NH00	160 A	161.5 mm	2.255 kg
3NP5065-1CG00	NH000, NH00	NH000, NH00	160 A	115.5 mm	2.065 kg
3NP5065-1EF86	NH000, NH00	NH000, NH00	160 A	187.5 mm	2.584 kg
3NP5065-1EF26	NH000, NH00	NH000, NH00	160 A	187.5 mm	2.522 kg
3NP5065-1CG10	NH000, NH00	NH000, NH00	160 A	115.5 mm	2.032 kg
3NP5065-1CF10	NH000, NH00	NH000, NH00	160 A	115.5 mm	2.13 kg
3NP5065-1CF00	NH000, NH00	NH000, NH00	160 A	115.5 mm	2.021 kg
3NP5060-0CA00	NH000, NH00	NH000, NH00	160 A	97.5 mm	1.552 kg

Common to all listed parts

product designation	3NP5 fuse switch disconnector
design of the actuating element	Cover handle
design of the load switch strip form	No
number of poles	3
fuse system	LV HRC fuse
insulation voltage rated value	690 V
surge voltage resistance rated value	6 kV
operating voltage — at AC rated value maximum	690 V
