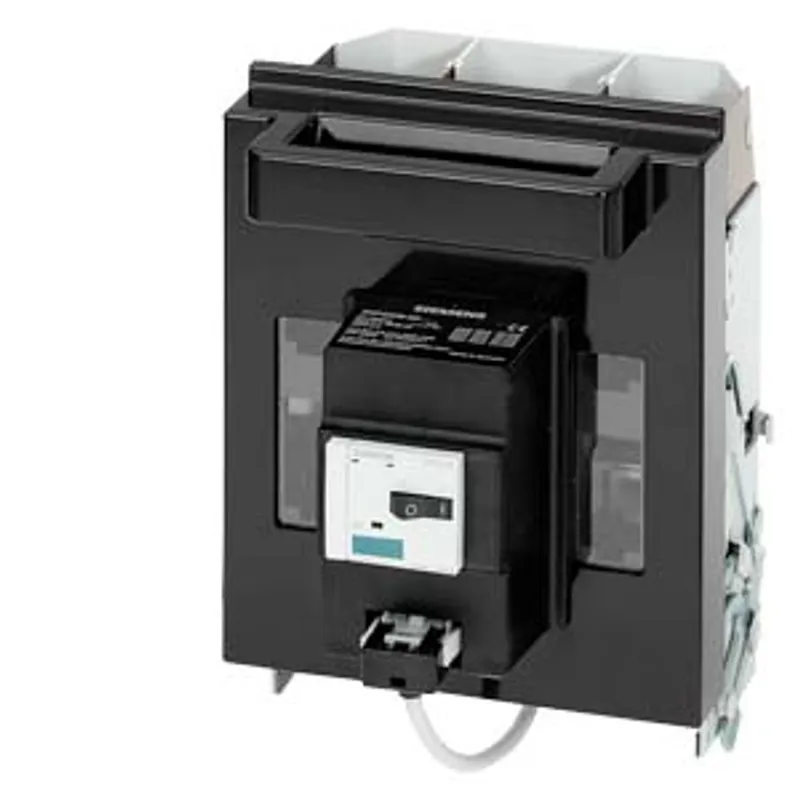

Siemens 3NP5260-0EB86
SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate
- MPN
- 3NP5260-0EB86
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 3NP5260-0EB86?

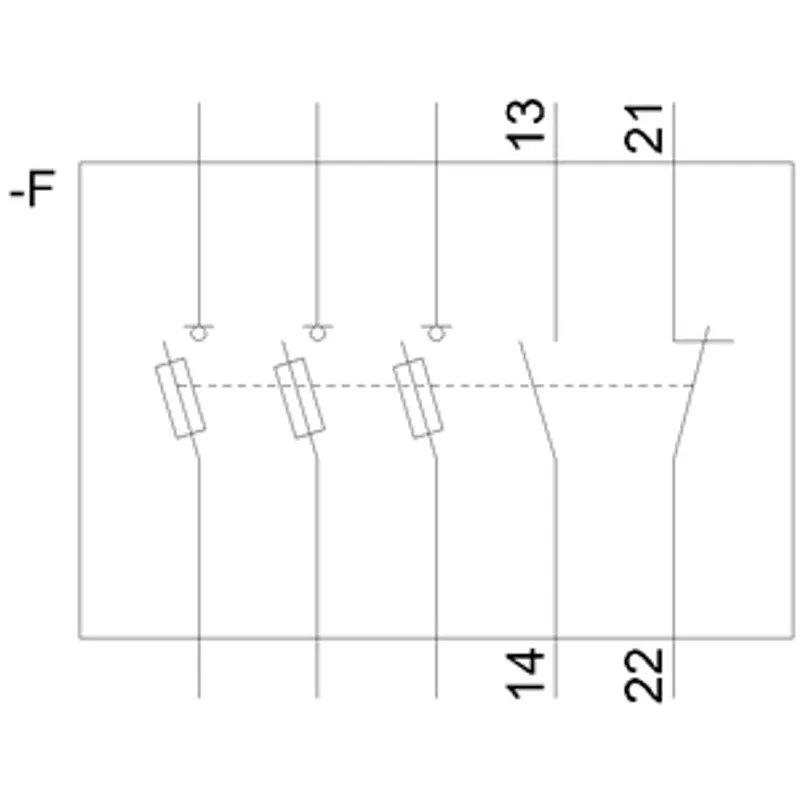

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate, with High-speed closing, Clamp terminal, Fuse monitoring: through 3VU, Auxiliary switch at Switch disconnector: 1 NO+1 NC, Auxiliary switch at the Fuse monitoring: 1 NO+1 NC
Specifications
Model
| product brand name | SENTRON |
| product designation | 3NP5 fuse switch disconnector |
| design of the product | auxiliary switch at the switch disconnector: 1 NO + 1 NC, auxiliary switch at the fuse monitoring device: 1 NO + 1 NC |
| design of the safety monitoring | by 3VU |
| design of the actuating element | Cover handle |
| design of the load switch strip form | No |
General technical data
| number of poles | 3 |
| size of disconnecting link | NH0, NH1 |
| size of fuse link | NH0, NH1 |
| mounting type | Fixed mounting |
| fuse system | LV HRC fuse |
Voltage
| insulation voltage rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| operating voltage — at AC rated value maximum | 690 V |
| operating voltage — at DC rated value | 440 V |
Protection class
| protection class IP on the front | IP00 |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 2.66 W |
Main circuit
| operational current rated value | 250 A |
Suitability
| suitability for use main switch | No |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
Product function
| product function fuse monitoring | Yes |
Short circuit
| maximum short-circuit current breaking capacity (Icu) at 400 V rated value | 2.5 kA |
Connections
| type of electrical connection | 35 - 120 mm² |
| type of electrical connection — for main current circuit | terminal clamp |
Mechanical Design
| height | 300 mm |
| width | 207 mm |
| depth | 176 mm |
| fastening method | Mounting plate |
| fastening method — floor mounting | Yes |
| fastening method — rail mounting | No |
| Net Weight | 6.04 kg |
Environmental conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 55 °C |
| ambient temperature during storage — minimum | -50 °C |
| ambient temperature during storage — maximum | 80 °C |
