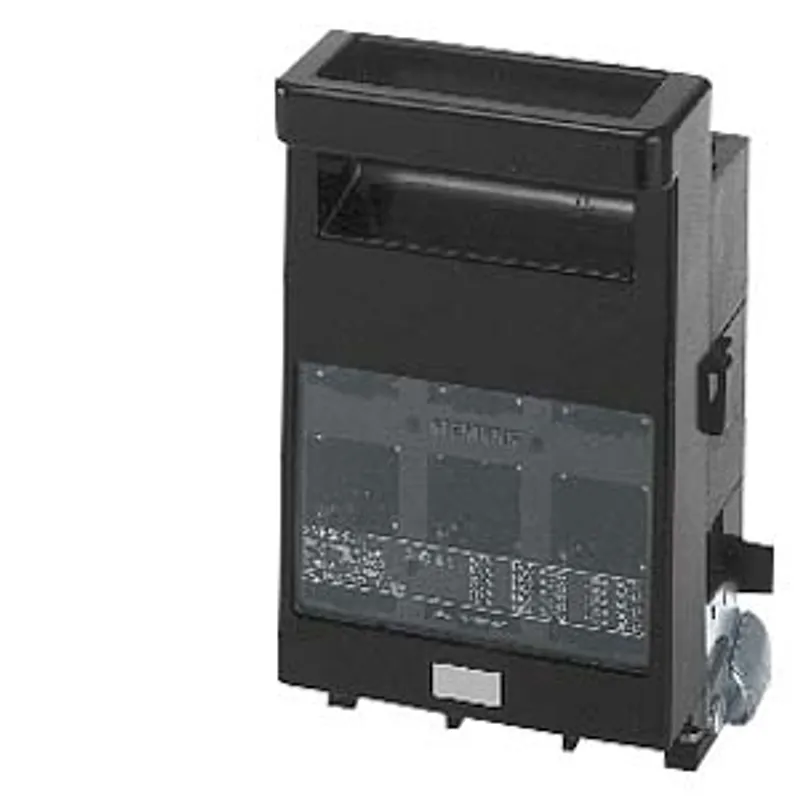

Siemens 3NP5065-1CG10

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

MPN: 3NP5065-1CG10
Category: SENTRON 3NP5 Fuse Switch Disconnectors up to 630 A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3NP5065-1CG10?

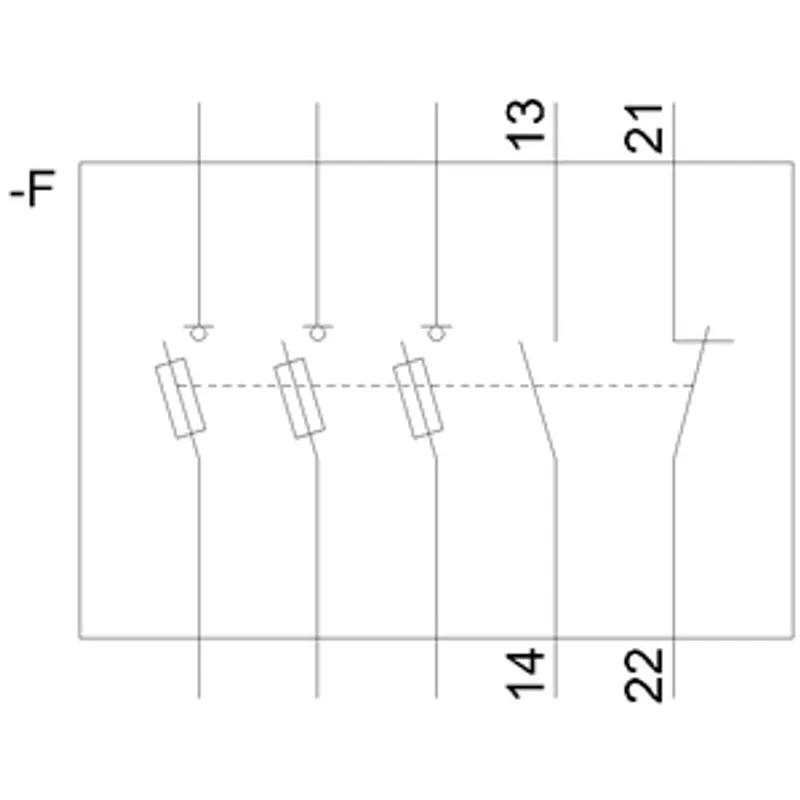

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm, with high-speed closing, Clamp terminal, Auxiliary switch at Switch disconnector: 1 NO+1 NC

Specifications

Model

product brand name	SENTRON
product designation	3NP5 fuse switch disconnector
design of the product	auxiliary switch at the switch disconnector: 1 NO + 1 NC
design of the actuating element	Cover handle
design of the load switch strip form	No

General technical data

number of poles	3
size of disconnecting link	NH000, NH00
size of fuse link	NH000, NH00
mounting type	Plug-in
fuse system	LV HRC fuse

Voltage

insulation voltage rated value	690 V
surge voltage resistance rated value	6 kV
operating voltage — at AC rated value maximum	690 V
operating voltage — at DC rated value	440 V

Protection class

protection class IP on the front

IP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole

2.66 W

Main circuit

operational current rated value

160 A

Suitability

suitability for use main switch	No
suitability for use switch disconnector	Yes
suitability for use EMERGENCY OFF switch	No

Product function

product function fuse monitoring

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value

1.6 kA

Connections

type of electrical connection	1 conductor 2.5 - 50 mm², 2 conductors 1x2.5 - 50 mm² a. 1x2.5 - 35 mm²
type of electrical connection — for main current circuit	terminal clamp

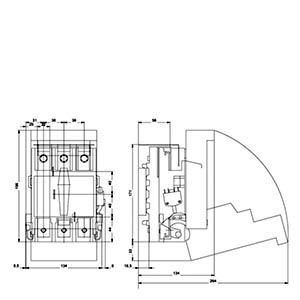

Mechanical Design

height	196 mm
width	134 mm
depth	115.5 mm
fastening method	Busbar
fastening method — floor mounting	No
fastening method — rail mounting	Yes
busbar center-to-center spacing	40 mm
Net Weight	2.032 kg

Environmental conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage — minimum	-50 °C
ambient temperature during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NP5065-1CG10PDF
