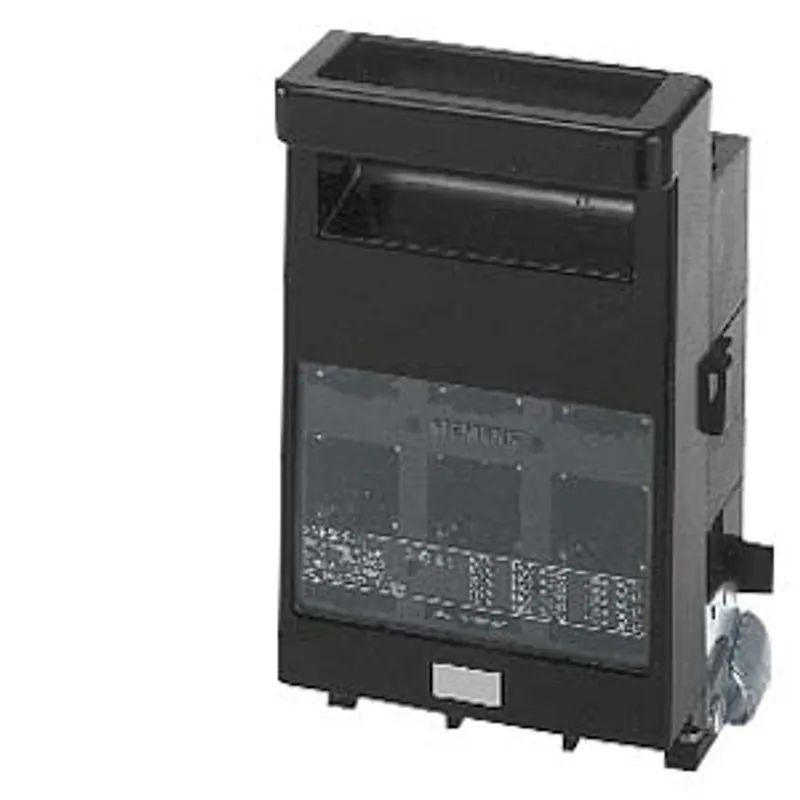

Siemens 3NP5065-1CF00

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm

MPN: 3NP5065-1CF00
Category: SENTRON 3NP5 Fuse Switch Disconnectors up to 630 A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3NP5065-1CF00?

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH00, 160 A, with Adapter for Busbar system 8US 40 mm, with high-speed closing, screw terminal

Specifications

Model

product brand name	SENTRON
product designation	3NP5 fuse switch disconnector
design of the actuating element	Cover handle
design of the load switch strip form	No

General technical data

number of poles	3
size of disconnecting link	NH000, NH00
size of fuse link	NH000, NH00
mounting type	Plug-in
fuse system	LV HRC fuse

Voltage

insulation voltage rated value	690 V
surge voltage resistance rated value	6 kV
operating voltage — at AC rated value maximum	690 V
operating voltage — at DC rated value	440 V

Protection class

protection class IP on the front

IP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole

2.66 W

Main circuit

operational current rated value

160 A

Suitability

suitability for use main switch	No
suitability for use switch disconnector	Yes
suitability for use EMERGENCY OFF switch	No

Product function

product function fuse monitoring

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value

1.6 kA

Connections

type of electrical connection	2.5 - 150 mm² DIN 46 234 a. up to 95 mm² DIN 46 235
type of electrical connection — for main current circuit	screw-type terminals

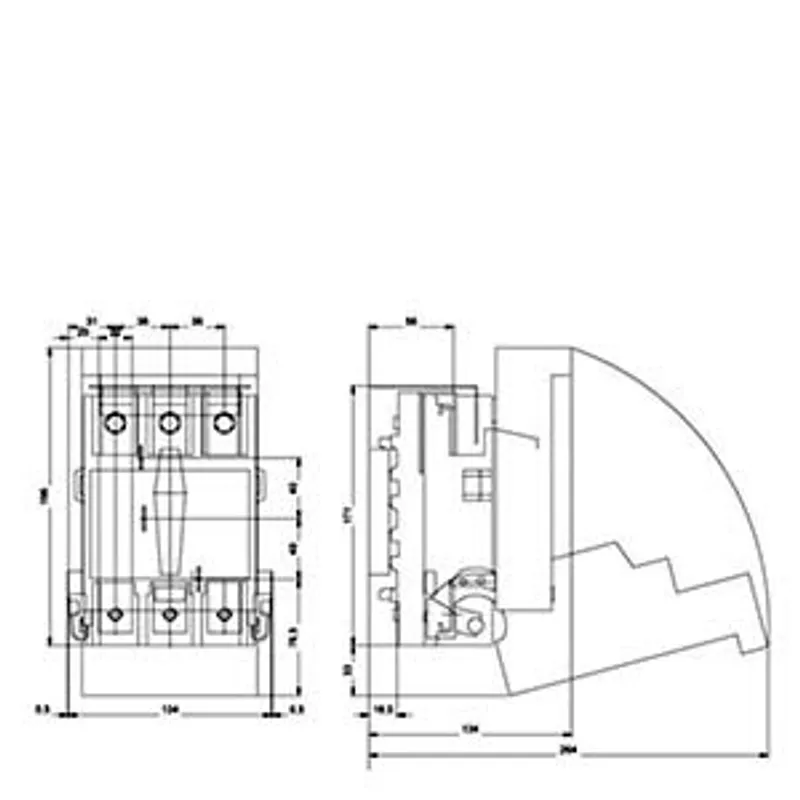

Mechanical Design

height	196 mm
width	134 mm
depth	115.5 mm
fastening method	Busbar
fastening method — floor mounting	No
fastening method — rail mounting	Yes
busbar center-to-center spacing	40 mm
Net Weight	2.021 kg

Environmental conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage — minimum	-50 °C
ambient temperature during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NP5065-1CF00PDF
