Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] — with conventional rated thermal current per pole | power loss [W] — with conventional rated thermal current per device | width | depth | Net Weight |
|---|---|---|---|---|---|
| 3KD4444-0PE40-0 | 17.2 W | 68.8 W | 242.5 mm | 95 mm | 3.559 kg |

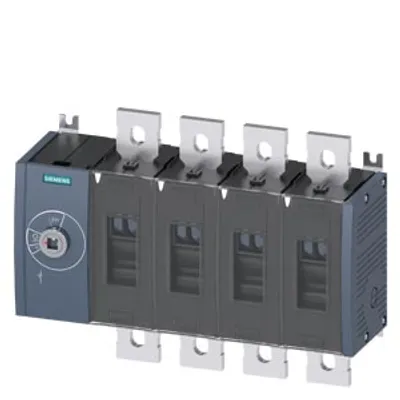

| 3KD4440-0QE10-0 | 12 W | 48 W | 320 mm | 110 mm | 9.17 kg |

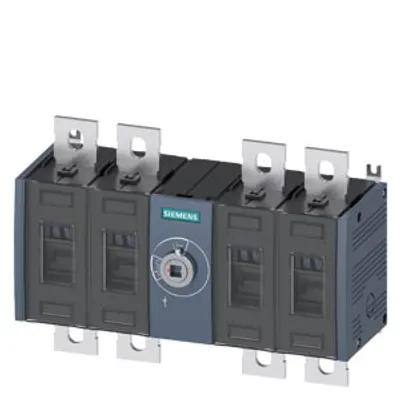

| 3KD4240-0PE20-0 | 14 W | 56 W | 234 mm | 94 mm | 3.516 kg |

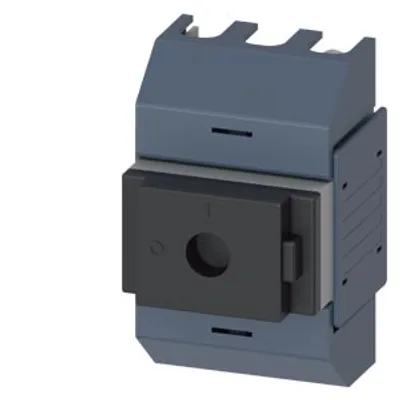

| 3KD0230-2KG20-3 | 1.2 W | 1.2 W | 63 mm | 73 mm | 338 g |

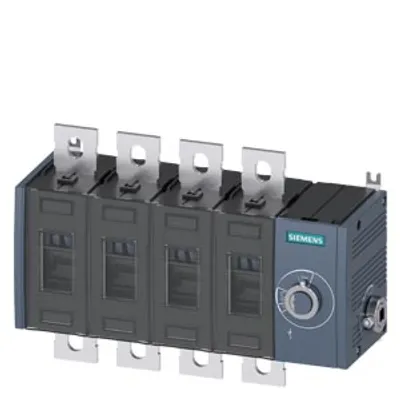

| 3KD3844-0PE40-0 | 6 W | 24 W | 242.5 mm | 95 mm | 3.623 kg |

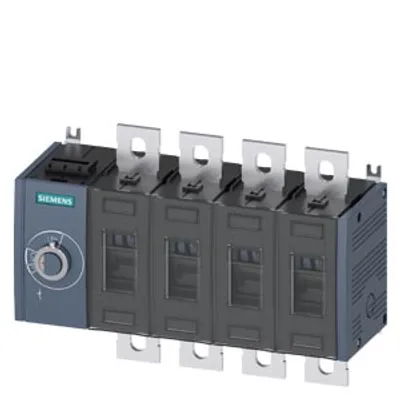

| 3KD3844-0PE10-0 | 6 W | 24 W | 242.5 mm | 95 mm | 3.63 kg |

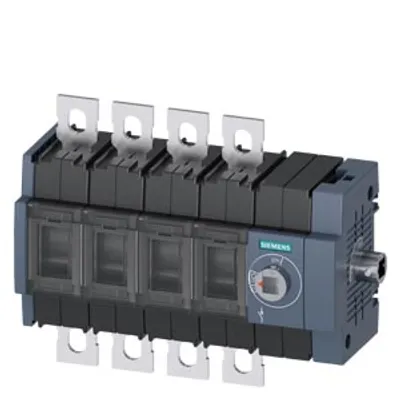

| 3KD3844-0NE40-0 | 8.2 W | 32.8 W | 157.3 mm | 70 mm | 1.321 kg |

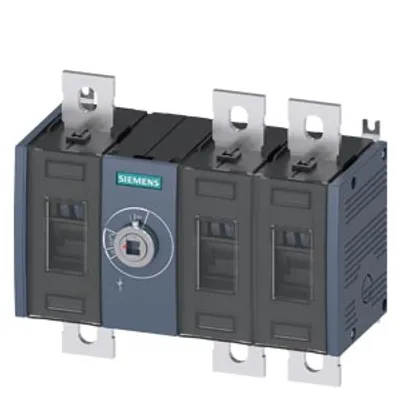

| 3KD3830-0PE20-0 | 6 W | 18 W | 190 mm | 94 mm | 2.834 kg |
| 3KD3830-0PE10-0 | 6 W | 18 W | 190 mm | 94 mm | 2.82 kg |

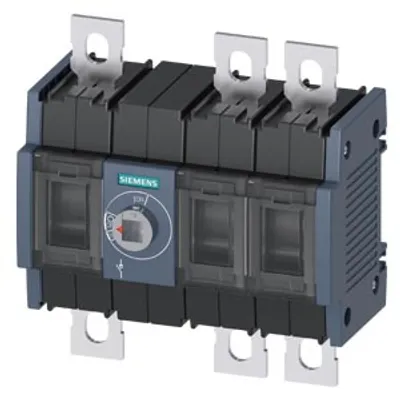

| 3KD3830-0NE20-0 | 8.2 W | 24.6 W | 121 mm | 68 mm | 1.013 kg |

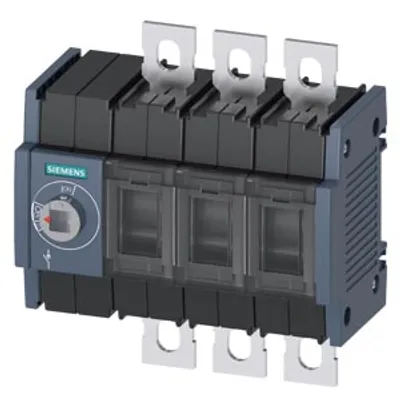

| 3KD3830-0NE10-0 | 8.2 W | 24.6 W | 121 mm | 68 mm | 1.012 kg |
| 3KD4840-0QE10-0 | 25 W | 100 W | 320 mm | 110 mm | 9.18 kg |
| 3KD4830-0QE10-0 | 25 W | 75 W | 260 mm | 110 mm | 7.312 kg |

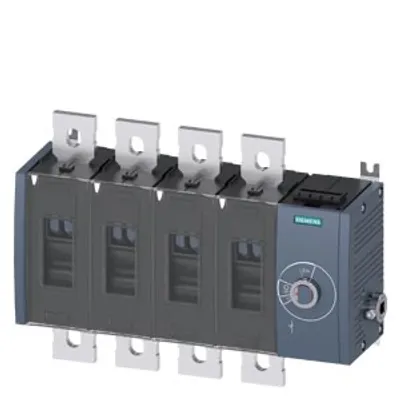

| 3KD5044-0QE40-0 | 35 W | 140 W | 331 mm | 112 mm | 9.188 kg |

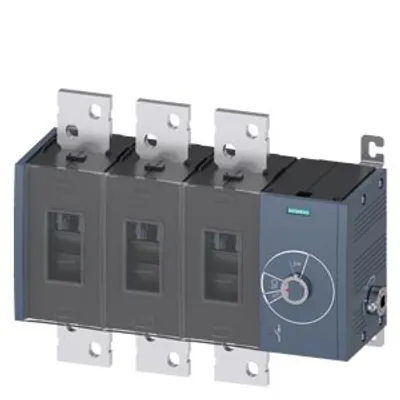

| 3KD5034-0RE40-0 | 20 W | 60 W | 394.5 mm | 154 mm | 17.24 kg |

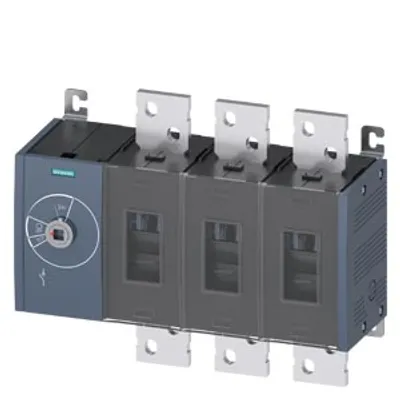

| 3KD5030-0RE10-0 | 20 W | 60 W | 382 mm | 153 mm | 17.06 kg |
| 3KD4444-0PE10-0 | 17.2 W | 68.8 W | 242.5 mm | 95 mm | 3.56 kg |

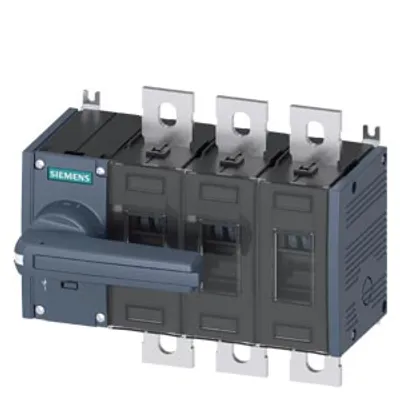

| 3KD4232-0PE10-0 | 14 W | 42 W | 190 mm | 131 mm | 2.927 kg |
| 3KD4230-0PE20-0 | 14 W | 42 W | 190 mm | 94 mm | 2.836 kg |

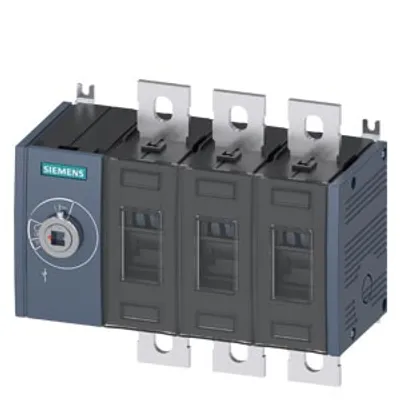

| 3KD4230-0PE10-0 | 14 W | 42 W | 190 mm | 94 mm | 2.83 kg |

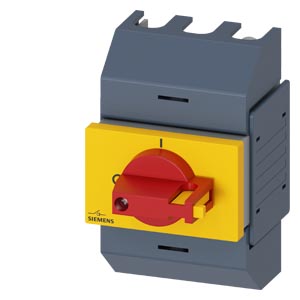

| 3KD0233-2KG20-3 | 1.2 W | 1.2 W | 63 mm | 92 mm | 363 g |

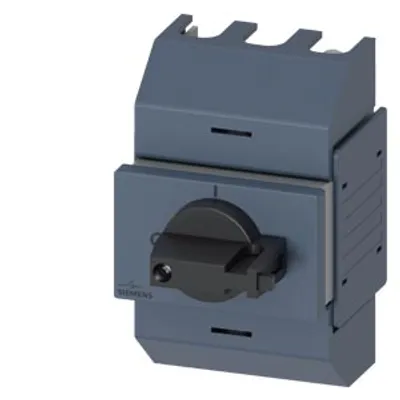

| 3KD0232-2KG20-3 | 1.2 W | 1.2 W | 63 mm | 92 mm | 349 g |

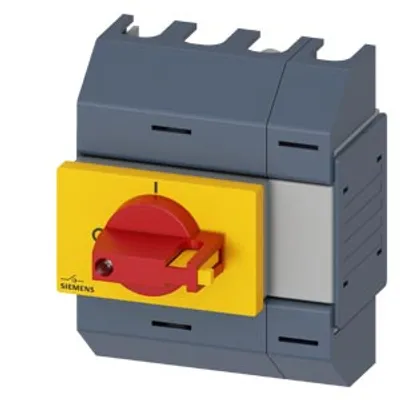

| 3KD0143-2KG20-3 | 0.3 W | 0.3 W | 83 mm | 92 mm | 439 g |
| 3KD0130-2KG20-3 | 0.3 W | 0.3 W | 63 mm | 73 mm | 338 g |
Common to all listed parts
| product designation | 3KD switch disconnector |
| design of the product | Switch |
| type of the driving mechanism motor drive | No |
| type of device | fixed mounting |
| degree of pollution | 3 |
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
