Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] — with conventional rated thermal current per pole | power loss [W] — with conventional rated thermal current per device | power loss [W] — for rated value of the current at AC in hot operating state per pole | width | Net Weight |
|---|---|---|---|---|---|

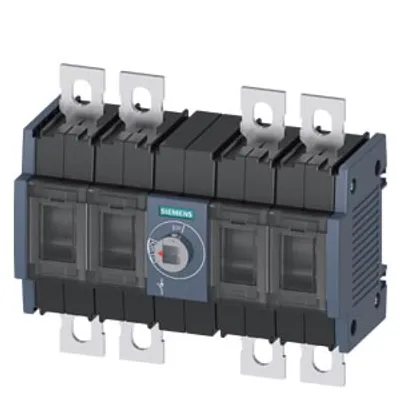

| 3KD3440-0NE20-0 | 4.6 W | 18.4 W | 4.6 W | 148 mm | 1.256 kg |

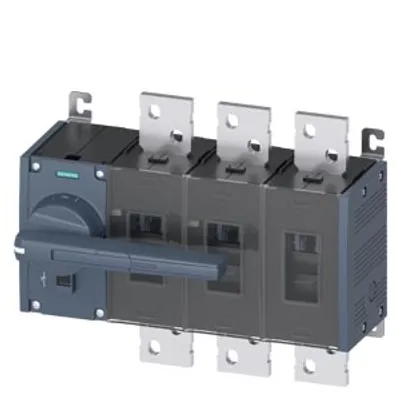

| 3KD5432-0RE10-0 | 57 W | 171 W | 57 W | 382 mm | 17.34 kg |

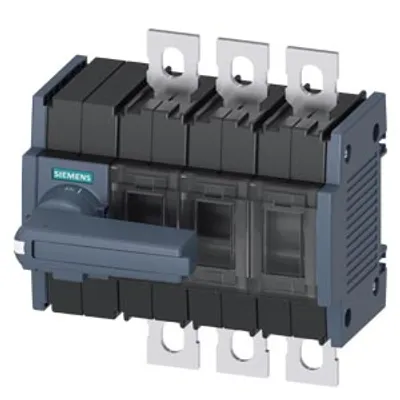

| 3KD3032-0NE10-0 | 1.8 W | 5.4 W | 1.8 W | 121 mm | 1.06 kg |

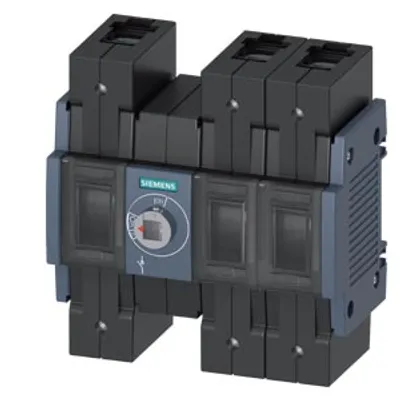

| 3KD3030-2NE20-0 | 1.8 W | 5.4 W | 1.8 W | 121 mm | 1.143 kg |

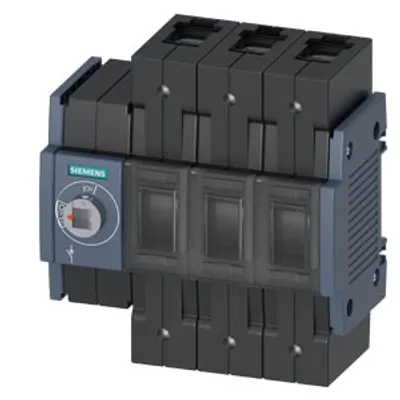

| 3KD3030-2NE10-0 | 1.8 W | 5.4 W | 1.8 W | 121 mm | 1.114 kg |
| 3KD3030-2ME20-0 | 2.5 W | 7.5 W | 2.5 W | 94 mm | 782 g |
| 3KD2640-2ME10-0 | 1 W | 4 W | 1 W | 112 mm | 938 g |

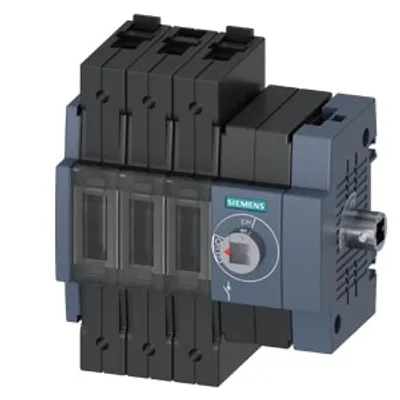

| 3KD2634-2ME40-0 | 1 W | 3 W | 1 W | 103.3 mm | 847 g |

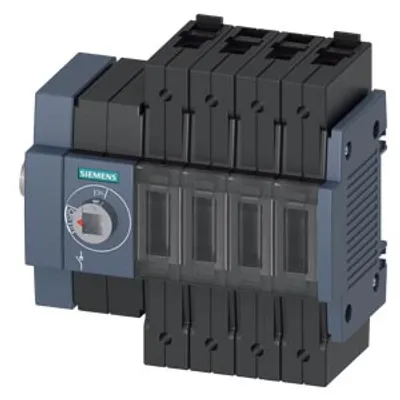

| 3KD2244-2ME10-0 | 0.4 W | 1.6 W | 0.4 W | 121.3 mm | 982 g |

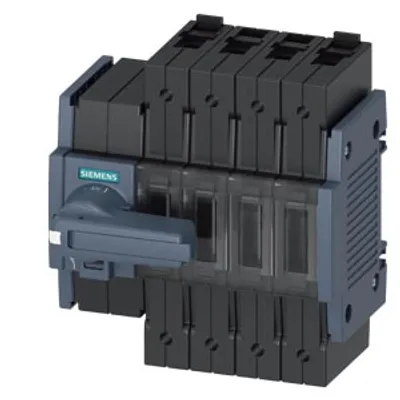

| 3KD2242-2ME10-0 | 0.4 W | 1.6 W | 0.4 W | 112 mm | 977 g |

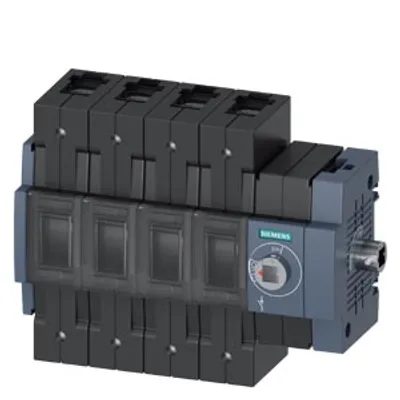

| 3KD2844-2NE40-0 | 1.1 W | 4.4 W | 1.1 W | 157.3 mm | 1.502 kg |

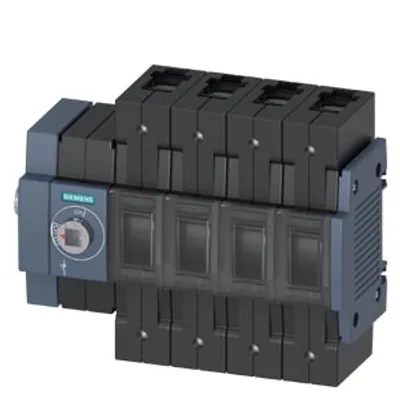

| 3KD2844-2NE10-0 | 1.1 W | 4.4 W | 1.1 W | 157.3 mm | 1 502 g |
| 3KD2844-0NE10-0 | 1.1 W | 4.4 W | 1.1 W | 157.3 mm | 1.339 kg |

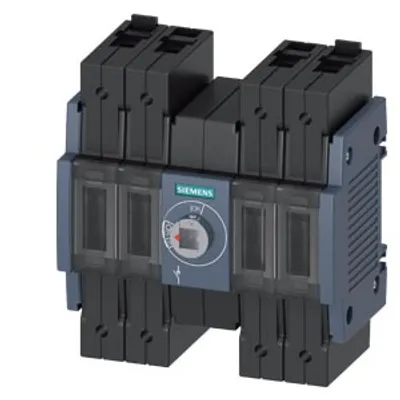

| 3KD1640-2ME20-0 | 0.1 W | 0.4 W | 0.1 W | 112 mm | 944 g |

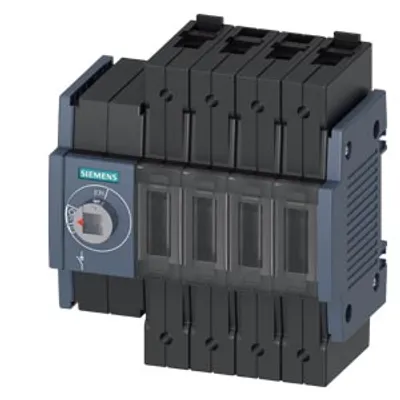

| 3KD1640-2ME10-0 | 0.1 W | 0.4 W | 0.1 W | 112 mm | 977 g |

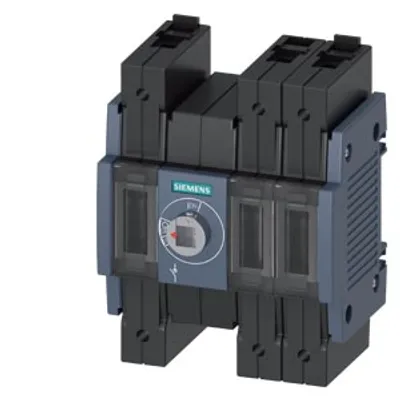

| 3KD1630-2ME20-0 | 0.1 W | 0.3 W | 0.1 W | 94 mm | 0.783 kg |

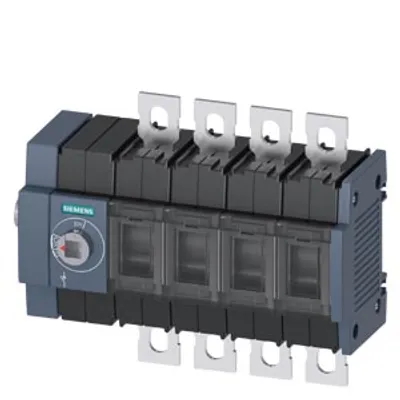

| 3KD3044-0NE10-0 | 1.8 W | 7.2 W | 1.8 W | 157.3 mm | 1 350 g |

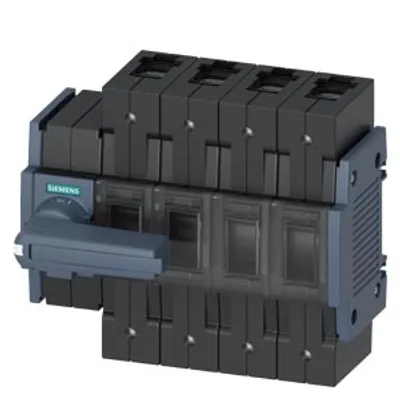

| 3KD3042-2NE10-0 | 1.8 W | 7.2 W | 1.8 W | 148 mm | 1.442 kg |
| 3KD3042-2ME10-0 | 2.5 W | 10 W | 2.5 W | 112 mm | 985 g |

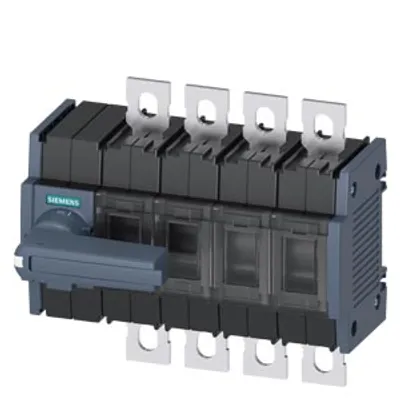

| 3KD3042-0NE10-0 | 1.8 W | 7.2 W | 1.8 W | 148 mm | 1.307 kg |

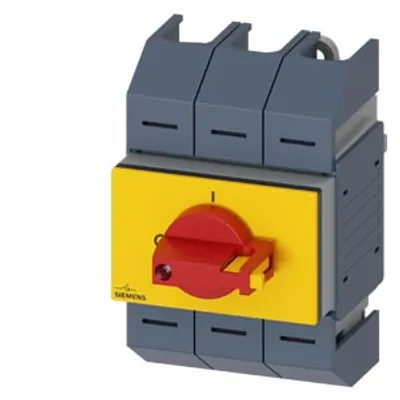

| 3KD0633-2LG20-3 | 12 W | 12 W | 36 W | 73 mm | 453 g |

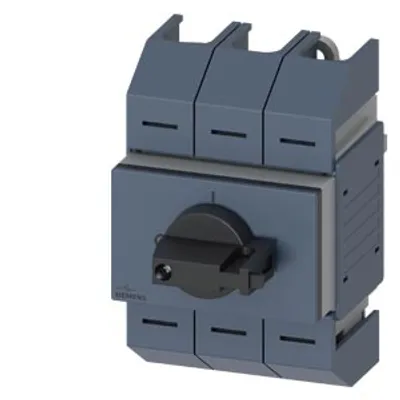

| 3KD0632-2LG20-3 | 12 W | 12 W | 36 W | 73 mm | 441 g |

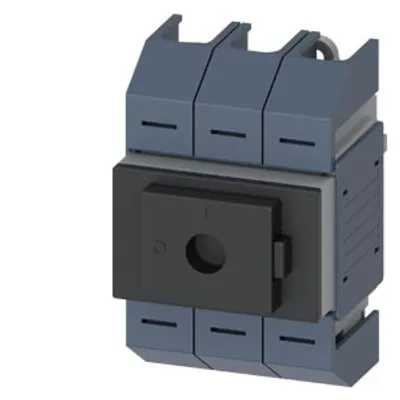

| 3KD0630-2LG20-3 | 12 W | 12 W | 36 W | 73 mm | 432 g |
| 3KD0432-2LG20-3 | 5 W | 5 W | 14.8 W | 73 mm | 439 g |
Common to all listed parts
| product designation | 3KD switch disconnector |
| design of the product | Switch |
| type of the driving mechanism motor drive | No |
| type of device | fixed mounting |
| degree of pollution | 3 |
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
