Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | position of the switch operating mechanism | number of CO contacts for auxiliary contacts | width | depth | Net Weight |
|---|---|---|---|---|---|
| 3KD3234-2NE40-0 | at the right end | 3 | 130.3 mm | 70 mm | 1.204 kg |
| 3KD3230-2NE10-0 | at the left end | 4 | 121 mm | 68 mm | 1.11 kg |

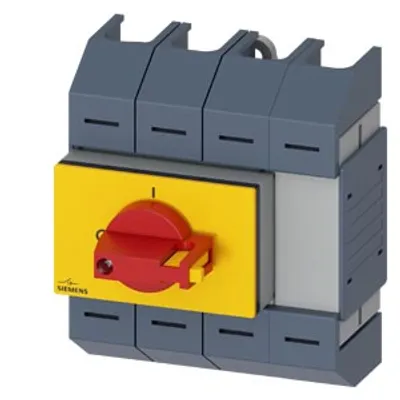

| 3KD0543-2LG20-3 | central | 0 | 96 mm | 95 mm | 550 g |
| 3KD0542-2LG20-3 | central | 0 | 96 mm | 95 mm | 544 g |
Common to all listed parts
| product designation | 3KD switch disconnector |
| design of the product | Switch |
| type of the driving mechanism motor drive | No |
| type of device | fixed mounting |
| overvoltage category | III |
| degree of pollution | 3 |
| surge voltage resistance rated value | 8 kV |
| number of connected NC contacts for auxiliary contacts | 0 |
