Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] — with conventional rated thermal current per pole | power loss [W] — with conventional rated thermal current per device | power loss [W] — for rated value of the current at AC in hot operating state per pole | width | Net Weight |
|---|---|---|---|---|---|
| 3KD0430-2LG20-3 | 5 W | 5 W | 14.8 W | 73 mm | 440 g |

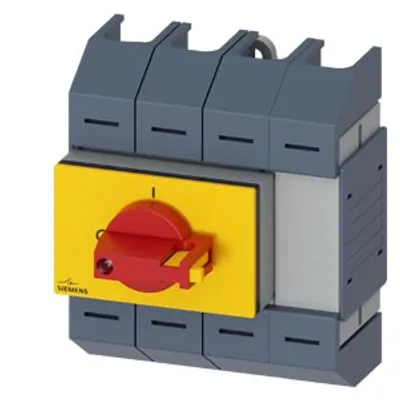

| 3KD0343-2LG20-3 | 3.1 W | 3.1 W | 9.2 W | 96 mm | 555 g |

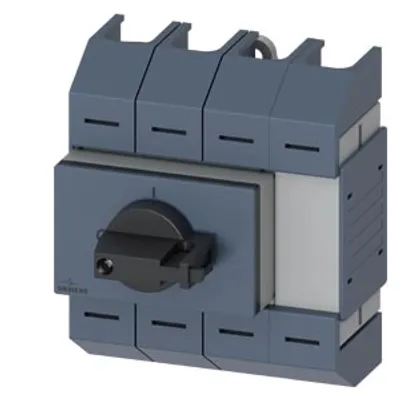

| 3KD0342-2LG20-3 | 3.1 W | 3.1 W | 9.2 W | 96 mm | 542 g |
| 3KD4840-0QE20-0 | 25 W | 100 W | 25 W | 320 mm | 9.038 kg |
| 3KD4660-0QE20-0 | 17 W | 102 W | 17 W | 440 mm | 12 340 g |
| 3KD4644-0QE40-0 | 17 W | 68 W | 17 W | 331 mm | 9.26 kg |
| 3KD4634-0QE40-0 | 17 W | 51 W | 17 W | 271 mm | 7.366 kg |
| 3KD4634-0QE10-0 | 17 W | 51 W | 17 W | 271 mm | 7.54 kg |
| 3KD4632-0QE10-0 | 17 W | 51 W | 17 W | 260 mm | 7.5 kg |
| 3KD3440-0NE10-0 | 4.6 W | 18.4 W | 4.6 W | 148 mm | 1.27 kg |
| 3KD3434-2NE40-0 | 4.6 W | 13.8 W | 4.6 W | 130.3 mm | 1 238 g |
| 3KD3434-2NE10-0 | 4.6 W | 13.8 W | 4.6 W | 130.3 mm | 1.183 kg |
| 3KD5260-0RE20-0 | 32 W | 192 W | 32 W | 652 mm | 29.52 kg |
| 3KD5244-0RE40-0 | 32 W | 128 W | 32 W | 484.5 mm | 21.5 kg |
| 3KD5234-0RE40-0 | 32 W | 96 W | 32 W | 394.5 mm | 17.34 kg |

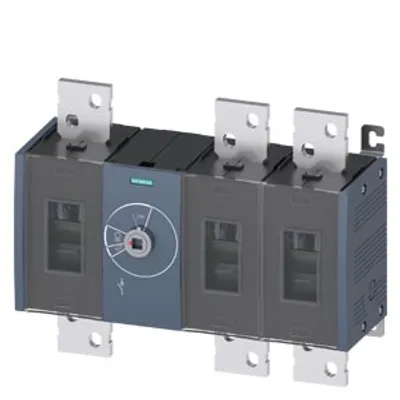

| 3KD5230-0RE20-0 | 32 W | 96 W | 32 W | 382 mm | 17.16 kg |
| 3KD5230-0RE10-0 | 32 W | 96 W | 32 W | 360 mm | 16.75 kg |
| 3KD5644-0RE40-0 | 80 W | 320 W | 80 W | 484.5 mm | 21.62 kg |
| 3KD5644-0RE10-0 | 80 W | 320 W | 80 W | 484.5 mm | 21.6 kg |
| 3KD5634-0RE40-0 | 80 W | 240 W | 80 W | 394.5 mm | 17.34 kg |
| 3KD5044-0QE10-0 | 35 W | 140 W | 35 W | 331 mm | 9.169 kg |
| 3KD5042-0RE10-0 | 20 W | 80 W | 20 W | 472 mm | 21.56 kg |

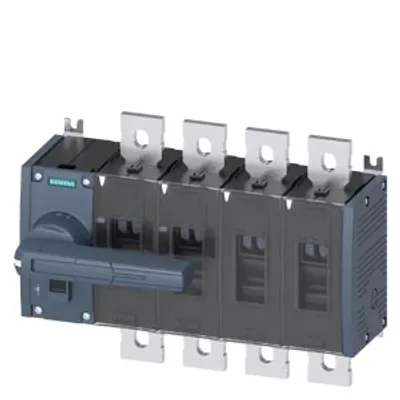

| 3KD5042-0QE10-0 | 35 W | 140 W | 35 W | 320 mm | 9.245 kg |
| 3KD4444-0QE10-0 | 12 W | 48 W | 12 W | 331 mm | 9 241 g |
Common to all listed parts
| product designation | 3KD switch disconnector |
| type of the driving mechanism motor drive | No |
| type of device | fixed mounting |
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
| suitability for use main switch | Yes |
| suitability for use switch disconnector | Yes |
