Home / I/O / Accessories / Pre-assembled cables / EtherCAT and fieldbus cables

EtherCAT and fieldbus cables Parts

Beckhoff

ZK1090-3132-1xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Beckhoff

ZK1090-3132-3xxx

EtherCAT cable, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3132-7xxx

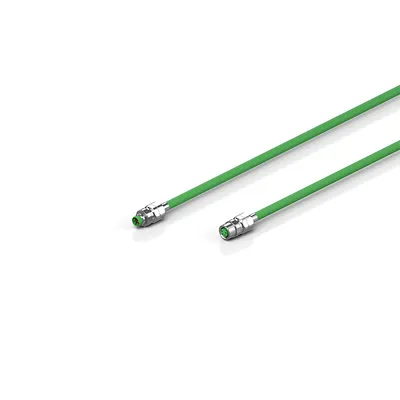

EtherCAT cable, IP67, hygienic design, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3134-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3138-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3161-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3161-1xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Beckhoff

ZK1090-3161-3xxx

EtherCAT cable, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3161-6xxx

EtherCAT cable, PUR, 1 x 4 x AWG22, capable of torsion

Beckhoff

ZK1090-3162-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3163-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3166-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3191-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3191-1xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Beckhoff

ZK1090-3191-3xxx

EtherCAT cable, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3191-7xxx

EtherCAT cable, IP67, hygienic design, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3200-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3200-7xxx

EtherCAT cable, IP69K, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3232-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3261-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3291-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Beckhoff

ZK1090-3291-1xxx

EtherCAT cable, PUR, AWG22, drag-chain suitable

Beckhoff

ZK1090-3291-3xxx

EtherCAT cable, PVC, AWG26, fixed installation

Beckhoff

ZK1090-3300-0xxx

EtherCAT cable, PUR, AWG26, drag-chain suitable

Compare EtherCAT and fieldbus cables

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installation size	Rated voltage	Mating cycles	A1	B1
ZK1090-3132-1xxx	M8	30 V (according to IEC 61076-2-104)	≥ 100	41.00 mm	40.00 mm
ZK1090-3132-3xxx	M8	30 V (according to IEC 61076-2-104)	≥ 100	41.00 mm	40.00 mm
ZK1090-3132-7xxx	M8	30 V (according to IEC 61076-2-104)	≥ 250	28.0 mm	28.2 mm
ZK1090-3134-0xxx	M8	30 V (according to IEC 61076-2-104)	≥ 100	41.00 mm	27.50 mm
ZK1090-3138-0xxx	M8	30 V (according to IEC 61076-2-104)	≥ 100	41.00 mm	34.50 mm
ZK1090-3161-0xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	49.00 mm
ZK1090-3161-1xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	49.00 mm
ZK1090-3161-3xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	49.00 mm
ZK1090-3161-6xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	49.00 mm
ZK1090-3162-0xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	43.00 mm
ZK1090-3163-0xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	35.30 mm
ZK1090-3166-0xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	41.00 mm	43.00 mm
ZK1090-3191-0xxx	RJ45	125 V	≥ 750	41.00 mm	44.0 mm
ZK1090-3191-1xxx	RJ45	150 V	≥ 750	41.00 mm	43.80 mm
ZK1090-3191-3xxx	RJ45	125 V	≥ 750	41.00 mm	44.0 mm
ZK1090-3191-7xxx	RJ45	125 V	≥ 750	28.0 mm	44.0 mm
ZK1090-3200-0xxx	open end	30 V (according to IEC 61076-2-104)	≥ 100	40.00 mm	—
ZK1090-3200-7xxx	open end	30 V (according to IEC 61076-2-104)	≥ 250	28.2 mm	—
ZK1090-3232-0xxx	M8	30 V (according to IEC 61076-2-104)	≥ 100	40.00 mm	40.00 mm
ZK1090-3261-0xxx	M12	160 V (according to IEC 61076-2-101)	≥ 100 (according to IEC 60512-9a)	40.00 mm	49.00 mm
ZK1090-3291-0xxx	RJ45	125 V	≥ 750	40.00 mm	44.0 mm
ZK1090-3291-1xxx	RJ45	150 V	≥ 750	40.00 mm	43.80 mm
ZK1090-3291-3xxx	RJ45	125 V	≥ 750	40.00 mm	44.0 mm
ZK1090-3300-0xxx	open end	30 V (according to IEC 61076-2-104)	≥ 100	29.80 mm	—

Common to all listed parts

Shielding	yes
Jacket color	green
