EtherCAT and fieldbus cables Parts
Beckhoff
ZK1098-9191-0xxxIndustrial-Ethernet/EtherCAT G patch cable, Cat.6A, PUR, 4 x 2 x AWG26, fixed installation
Beckhoff
ZK1093-3333-2xxxEtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances
Beckhoff
ZK1093-3391-2xxxEtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances
Beckhoff
ZK1093-3133-2xxxEtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances
Beckhoff
ZK1092-1001-0xxxFiber optics cable, Singlemode, E9/125, flat, orange, 2x Duplex-SC-connector
Beckhoff
ZK1096-9191-6xxxIndustrial Ethernet/EtherCAT G/G10 patch cable, Cat.6A, PUR, 4 x 2 x AWG26, drag-chain suitable
Beckhoff
ZK1093-3191-2xxxEtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances
Beckhoff
ZK1B90-6591-2xxxEtherCAT cable, Duo, PUR, AWG26, fixed installation, comfortable installation at short distances
Beckhoff
ZK1090-3333-2xxxEtherCAT cable, PUR, AWG26, fixed installation, comfortable installation at short distances

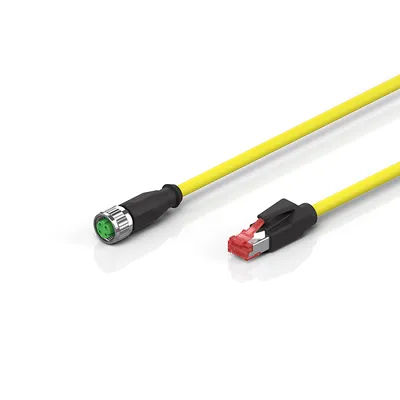

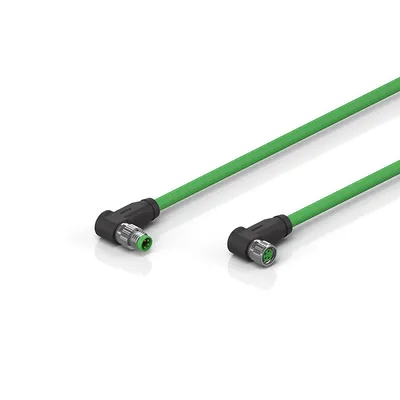

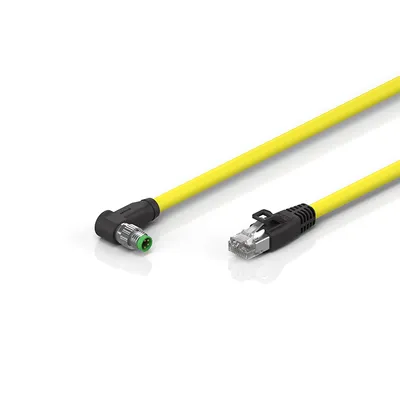

Compare EtherCAT and fieldbus cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Rated voltage | Outer cable diameter | Min. bending radius, moved | A1 | B1 |
|---|---|---|---|---|---|
| ZK1090-3338-6xxx | 30 V (according to IEC 61076-2-104) | 6.6 mm ± 0.2mm (0.259" ± 0.0079") | 10 x outer cable diameter | 29.80 mm | 34.50 mm |
| ZK1090-3334-0xxx | 30 V (according to IEC 61076-2-104) | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 29.80 mm | 27.50 mm |
| ZK1093-3261-0xxx | 160 V (according to IEC 61076-2-101) | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 40.00 mm | 49.00 mm |
| ZK1098-9191-0xxx | 160 V | 6.2 mm ± 0.2mm (0.244" ± 0.0079") | 8 x outer cable diameter | 42.00 mm | 42.00 mm |
| ZK1093-3333-2xxx | 30 V (according to IEC 61076-2-104) | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 29.80 mm | 29.80 mm |
| ZK1093-3391-2xxx | 125 V | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 29.80 mm | 44.0 mm |
| ZK1093-6163-4xxx | 160 V (according to IEC 61076-2-101) | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 49.00 mm | 35.30 mm |
| ZK1093-6291-4xxx | 125 V | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 49.00 mm | 44.0 mm |
| ZK1093-6391-0xxx | 150 V | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 8 x outer cable diameter | 35.30 mm | 43.80 mm |
| ZK1093-3134-0xxx | 30 V (according to IEC 61076-2-104) | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 41.00 mm | 27.50 mm |
| ZK1093-3133-0xxx | 30 V (according to IEC 61076-2-104) | 5.4 mm ± 0.3 mm (0.213" ±0.0118") | 20 x outer cable diameter | 41.00 mm | 29.80 mm |
| ZK1093-3133-2xxx | 30 V (according to IEC 61076-2-104) | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 41.00 mm | 29.80 mm |
| ZK1093-3391-1xxx | 150 V | — | — | 29.80 mm | 43.80 mm |
| ZK1092-1001-0xxx | — | 3,7 mm x 6,2 mm | 15 x outer cable diameter | — | — |
| ZK1096-9191-6xxx | 160 V | 7.80 ±0.20 mm | 7.5 x outer cable diameter | 37.00 mm | 37.00 mm |
| ZK1090-3191-Exxx | 150 V | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") | 10 x outer cable diameter | 41.00 mm | 43.80 mm |
| ZK1093-3191-2xxx | 125 V | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 41.00 mm | 44.0 mm |
| ZK1B90-6591-2xxx | 125 V | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 45 mm | 44.0 mm |
| ZK1090-3333-2xxx | 30 V (according to IEC 61076-2-104) | 3.65 mm ± 0.15 mm (0.1496" ± 0.0059") | 15 x outer cable diameter | 29.80 mm | 29.80 mm |
