EtherCAT cable, PUR, AWG26, drag-chain suitable
MPN: ZK1090-3100-0xxx · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | EtherCAT and fieldbus cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK1090-3100-0xxx be shipped?
ZK1090-3100-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK1090-3100-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK1090-3100-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK1090-3100-0xxx, subject to availability and destination.
M8, plug, straight, male, 4-pin, A-coded – open
Specifications
Specifications
| Shielding | yes |
| Installation size | open end |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 4-wire + strand and shielding |
| Coding | A‑coded |
| Rated current | 4 A at 40°C (according to IEC 61076-2-104) |
| Rated voltage | 50 V AC/60 V DC (according to IEC 61076-2-104) |
| Recommended torque, nut | 0.4 Nm |
| Mating cycles | ≥ 100 |
| Cross-section (Ethernet) | 1 x 4 x 0.14 mm² (AWG26) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 5.4 mm ± 0.3 mm (0.213" ±0.0118") |
| Min. bending radius, moved | 20 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 20 million (5 million with 14 x D, v = 5 m/s and a = 15 m/s², min. 1 million with 9.5 x D, a = 1 m/s², travel distance = 1 m) |
| Jacket color | green |
| CE | yes |
| UL | yes, UL E-file number: E480185 |
| CAS No. | 7439-92-1 |
| REACH SVHC | Lead |
| REACH Annex XVII | compliant |
| REACH Annex XIV | compliant |
| POP | compliant |
| RoHS | compliant with exemption |
| RoHS exemption | 6c: Copper alloy with a lead content of up to 4% by mass |
| China-RoHS | www.beckhoff.com/china-rohs-io |
| CA Prop65 | www.beckhoff.com/prop65 |
| Halogen-free | yes |
| Disclaimer | This statement and the information contained above are, to the best of our knowledge and belief, accurate, based on the information we have received from our suppliers. This information is in line with the current standard of technology and our suppliers’ technical documentation. The absence of the substances is not verified by Beckhoff Automation by means of analytical tests. When addressed to our customers any information contained in this document is subject to the terms and conditions expressed in the governing customer agreement. Our general terms and conditions apply. |
| ZK1090-3100-0005 | 317161f0-7594-4484-bcca-f3e7a66366a9 |
| ZK1090-3100-0010 | f0eb1cb6-4ed7-4de5-bcb4-57fded939e4d |
| ZK1090-3100-0020 | dc317a3c-9e16-4648-be73-65a122ad6b6f |
| ZK1090-3100-0030 | d92dd1ec-96ee-4dfa-9bde-11d358cc48f8 |
| ZK1090-3100-0050 | 1375fef5-b9fd-42fe-b527-6a9912fc57a1 |
| ZK1090-3100-0060 | aeec4259-fe8a-4645-97cc-da6ebff76584 |
| ZK1090-3100-0070 | 4b5c6f40-1195-46b9-83d0-b46b19c9cdcd |
| ZK1090-3100-0080 | cf9f1761-46be-4527-a20f-de47e7da6816 |
| ZK1090-3100-0100 | 7ec1b4ea-dcc8-4687-bd81-d6ffe4e51461 |
| ZK1090-3100-0150 | b74d09c6-2e3f-4dbb-9c19-83f98de8c9b5 |
| ZK1090-3100-0250 | ae3d0c7d-22bb-4801-891d-da245bdf0d03 |
| ZK1090-3100-0300 | a6e7f4f2-a526-49ce-a3e0-b5efbad5ea79 |
| ZK1090-3100-0400 | 5c3a062c-ee78-4f58-8f78-0524dbf11fcc |
| ZK1090-3100-0500 | e25aad93-749d-46de-9022-331884f613ee |
| A1 | 41.00 mm |
| A2 | Ø 10.1 mm |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Beckhoff parts
Available on requestCANopen/DeviceNet® cable, PVC, AWG22, fixed installationMPN: ZK1052-6300-3xxx · Beckhoff
Price on request
Request a quote
Available on requestCANopen/DeviceNet® cable, PVC, AWG22, fixed installationMPN: ZK1052-6354-3xxx · Beckhoff
Price on request
Request a quote
Available on requestCANopen/DeviceNet® cable, PVC, AWG22, fixed installationMPN: ZK1052-6400-3xxx · Beckhoff
Price on request
Request a quote

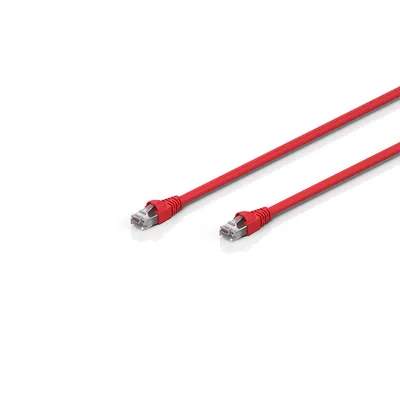

Available on requestCable for K-bus extension with two RJ45 plugs at both ends, red, Ethernet cMPN: ZK1090-0101-1xxx · Beckhoff
