EL6xxx | Communication Parts
Beckhoff

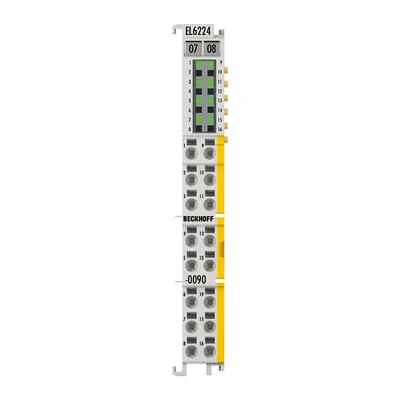

EL6224-0090EtherCAT Terminal, 4-channel communication interface, IO-Link, master, TwinSAFE SC
Compare EL6xxx | Communication
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Electrical isolation | Weight | Approvals/markings | Marking | Dimensions (W x H x D) |
|---|---|---|---|---|---|

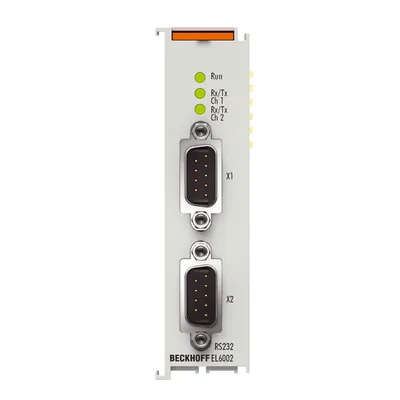

| EL6002 | 500 V (E-bus/signal voltage) | approx. 55 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6021 | 500 V (E-bus/signal voltage) | approx. 55 g | CE, CCC, UL, ATEX, IECEx, DNV, cFMus | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6001 | 500 V (E-bus/signal voltage) | approx. 55 g | CE, CCC, UL, ATEX, IECEx, DNV | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6070 | — | approx. 50 g | CE, CCC, UL, ATEX, IECEx, DNV, cFMus | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6224-0090 | 500 V (E-bus/signal voltage) | approx. 60 g | CE, CCC, UL, ATEX, IECEx | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6910 | — | approx. 50 g | — | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6930 | — | approx. 50 g | — | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6851 | 500 V (E-bus/signal voltage) | approx. 55 g | CE, CCC, UL, ATEX, IECEx | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6080 | — | approx. 50 g | CE, CCC, UL, ATEX, IECEx | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6224 | 500 V (E-bus/signal voltage) | approx. 60 g | CE, CCC, UL, ATEX, IECEx | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6201 | 500 V (AS-Interface/E-bus) | approx. 55 g | CE, CCC, ATEX, IECEx | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6900 | — | approx. 50 g | — | labeling of the BZxxxx series | 12 mm x 100 mm x 68 mm |
| EL6090 | — | approx. 70 g | CE, UL, DNV | – | 24 mm x 100 mm x 52 mm |
| EL6022 | 500 V (E-bus/signal voltage) | approx. 55 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6652 | 500 V (E-bus/Ethernet) | approx. 75 g | CE, UL | – | 24 mm x 100 mm x 52 mm |
| EL6632 | 500 V (E-bus/Ethernet) | approx. 75 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6614 | 500 V (E-bus/Ethernet) | approx. 95 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6601 | 500 V (E-bus/Ethernet) | approx. 75 g | CE, CCC, UL, ATEX, IECEx, cFMus | – | 24 mm x 100 mm x 52 mm |
| EL6688 | 500 V (E-bus/Ethernet) | approx. 75 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6631 | 500 V (E-bus/Ethernet) | approx. 75 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6695 | 500 V (E-bus/secondary side) | approx. 75 g | CE, UL | – | 24 mm x 100 mm x 52 mm |
| EL6720 | — | approx. 70 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
| EL6692 | 500 V (E-bus/secondary side) | approx. 75 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |

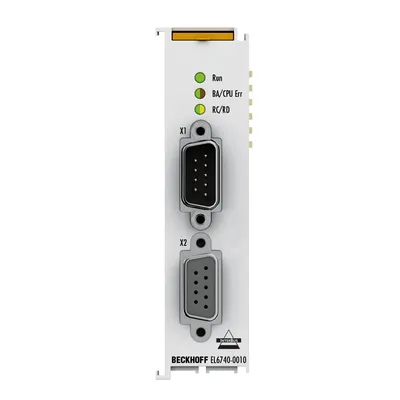

| EL6740-0010 | — | approx. 80 g | CE, CCC, UL, ATEX, IECEx | – | 24 mm x 100 mm x 52 mm |
Common to all listed parts
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
