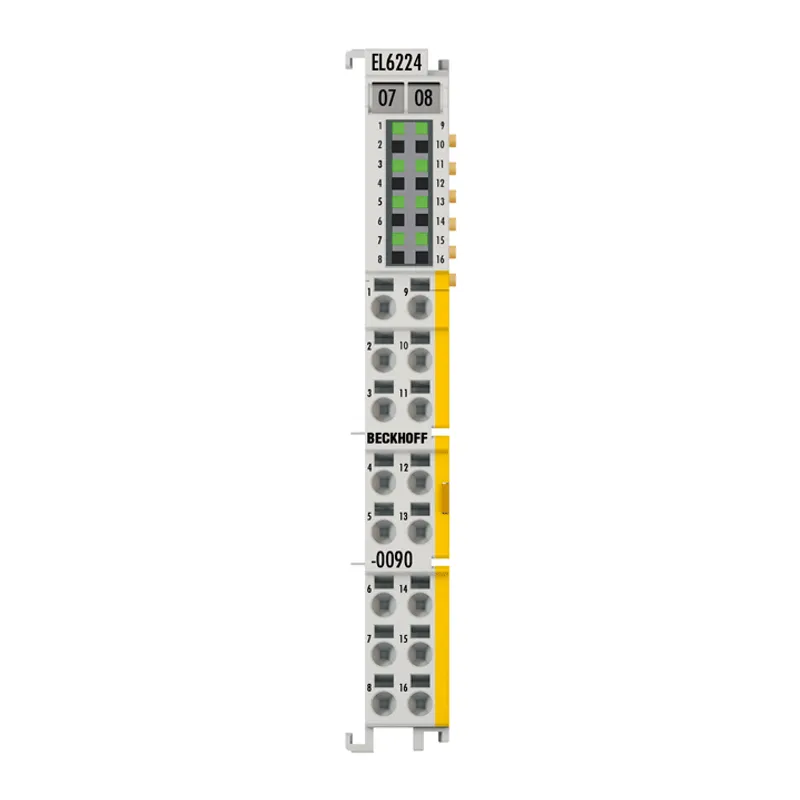

Beckhoff EL6224-0090
EtherCAT Terminal, 4-channel communication interface, IO-Link, master, TwinSAFE SC
- MPN
- EL6224-0090
- Category
- EL6xxx | Communication
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EL6224-0090?
The EL6224 IO-Link terminal enables the connection of up to four IO-Link devices. These can be actuators, sensors or a combination of both. A point-to-point connection is used between the terminal and the device. The terminal is parameterized via the
Specifications
Specifications
| Technology | IO-Link input/output |
| Specification version | IO-Link V1.1 |
| IO-Link interfaces | 4 |
| Field voltage | 24 V DC via power contacts |
| Connection | 3-wire |
| Data transfer rates | 4.8 kbaud, 38.4 kbaud and 230.4 kbaud |
| Cable length | max. 20 m |
| Power supply | via E-bus and power contacts |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Power contacts | yes |
| Supply current for devices | 500 mA per device |
| Current consumption E-bus | typ. 120 mA |
| Special features | TwinSAFE SC, each channel parameterizable in TwinCAT |
| Weight | approx. 60 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
