Home / I/O / EtherCAT Terminals / EL6xxx | Communication

EL6xxx | Communication Parts

Showing 25–48 of 59 parts

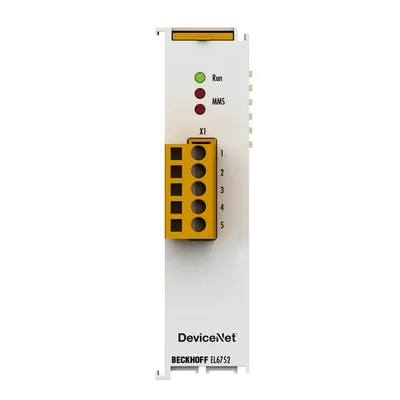

Beckhoff EL6752 – EtherCAT Terminal, 1-channel communication interface, DeviceNet®, master
Beckhoff
EL6752

EtherCAT Terminal, 1-channel communication interface, DeviceNet®, master

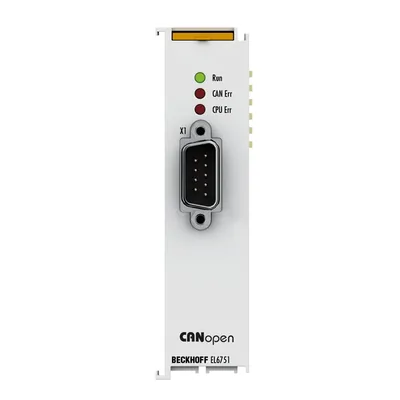

Beckhoff EL6751 – EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave
Beckhoff
EL6751

EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

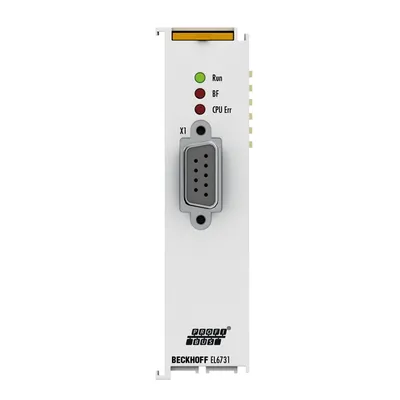

Beckhoff EL6731 – EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave
Beckhoff
EL6731

EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave

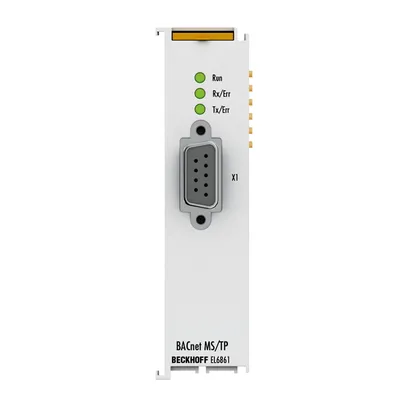

Beckhoff EL6861 – EtherCAT Terminal, 1-channel communication interface, BACnet-MS/TP, RS485, D-sub
Beckhoff
EL6861

EtherCAT Terminal, 1-channel communication interface, BACnet-MS/TP, RS485, D-sub

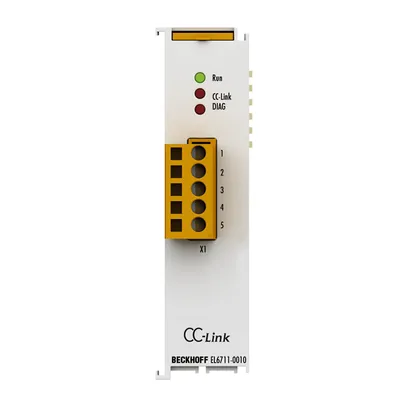

Beckhoff EL6711-0010 – EtherCAT Terminal, 1-channel communication interface, CC-Link, slave
Beckhoff
EL6711-0010

EtherCAT Terminal, 1-channel communication interface, CC-Link, slave

Beckhoff EL6731-0010 – EtherCAT Terminal, 1-channel communication interface, PROFIBUS, slave
Beckhoff
EL6731-0010

EtherCAT Terminal, 1-channel communication interface, PROFIBUS, slave

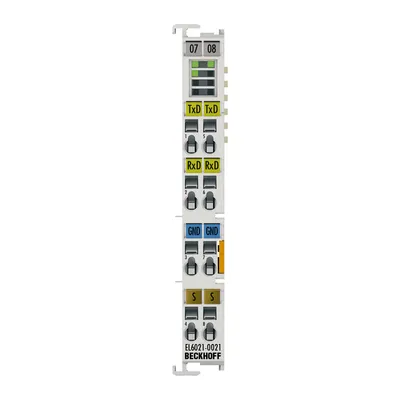

Beckhoff EL6021-0021 – EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485, line device
Beckhoff
EL6021-0021

EtherCAT Terminal, 1-channel communication interface, serial, RS422/RS485, line device

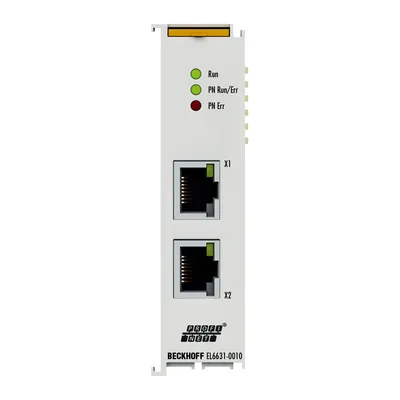

Beckhoff EL6631-0010 – EtherCAT Terminal, 2-port communication interface, PROFINET RT, device
Beckhoff
EL6631-0010

EtherCAT Terminal, 2-port communication interface, PROFINET RT, device

Beckhoff EL6633 – EtherCAT Terminal, 2-port communication interface, PROFINET RT, controller/i-device
Beckhoff
EL6633

EtherCAT Terminal, 2-port communication interface, PROFINET RT, controller/i-device

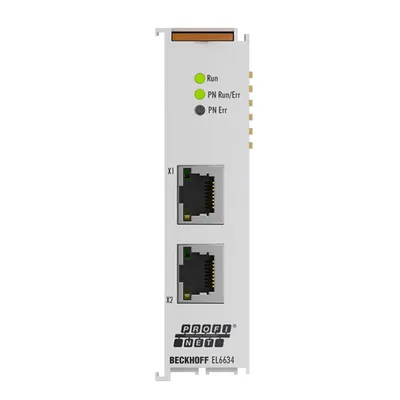

Beckhoff EL6634 – EtherCAT Terminal, 2-port communication interface, PROFINET IRT, controller
Beckhoff
EL6634

EtherCAT Terminal, 2-port communication interface, PROFINET IRT, controller

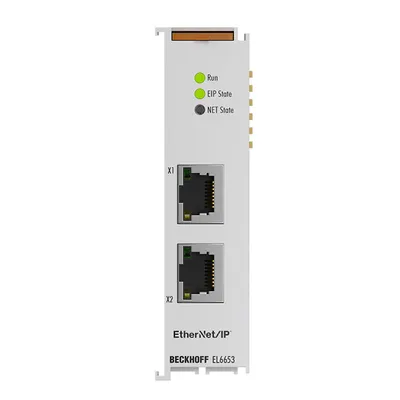

Beckhoff EL6653 – EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, scanner
Beckhoff
EL6653

EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, scanner

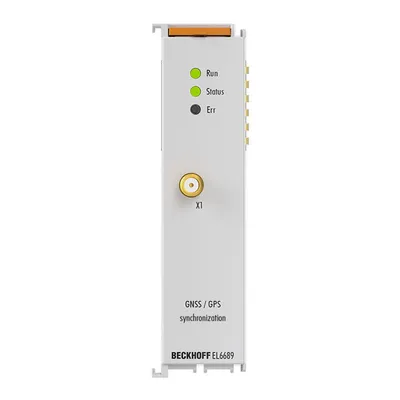

Beckhoff EL6689 – EtherCAT Terminal, 1-channel communication interface, GNSS, receiver
Beckhoff
EL6689

EtherCAT Terminal, 1-channel communication interface, GNSS, receiver

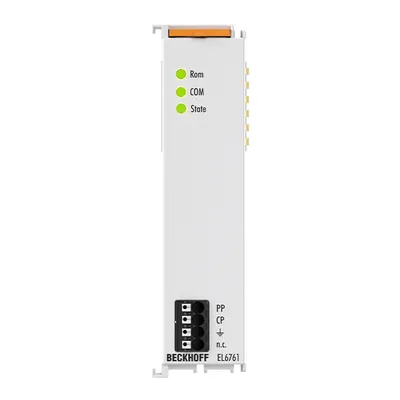

Beckhoff EL6761 – EtherCAT Terminal, 1-channel communication interface, ISO 15118 powerline, charge controller
Beckhoff
EL6761

EtherCAT Terminal, 1-channel communication interface, ISO 15118 powerline, charge controller

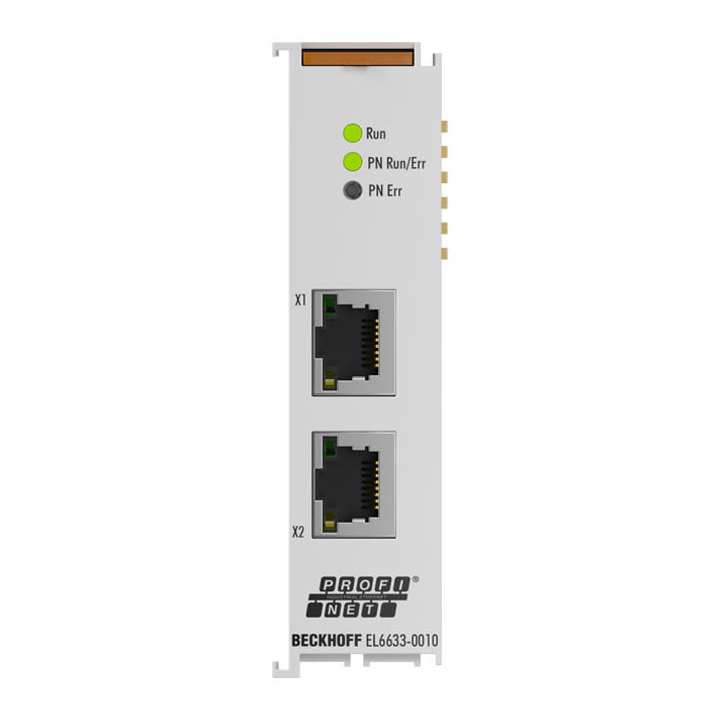

Beckhoff EL6633-0010 – EtherCAT Terminal, 2-port communication interface, PROFINET RT, device
Beckhoff
EL6633-0010

EtherCAT Terminal, 2-port communication interface, PROFINET RT, device

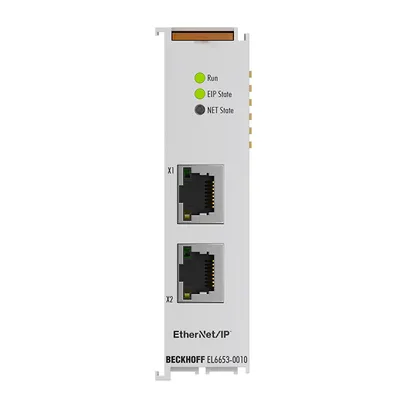

Beckhoff EL6653-0010 – EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, adapter
Beckhoff
EL6653-0010

EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, adapter

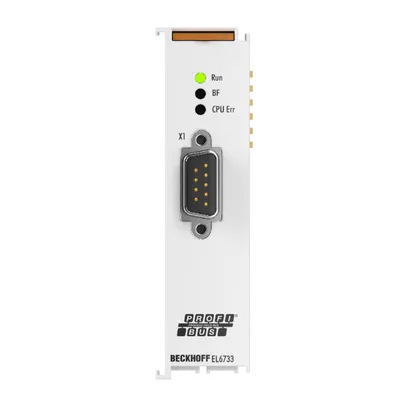

Beckhoff EL6733 – EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave
Beckhoff
EL6733

EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave

Beckhoff EL6733-0010 – EtherCAT Terminal, 1-channel communication interface, PROFIBUS, slave
Beckhoff
EL6733-0010

EtherCAT Terminal, 1-channel communication interface, PROFIBUS, slave

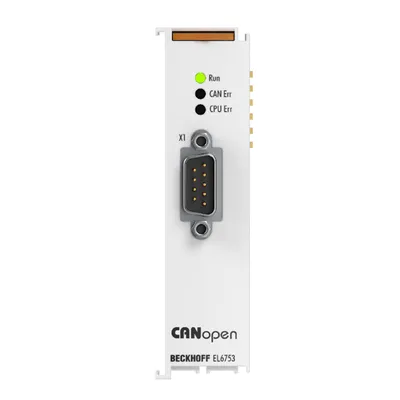

Beckhoff EL6753 – EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave
Beckhoff
EL6753

EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

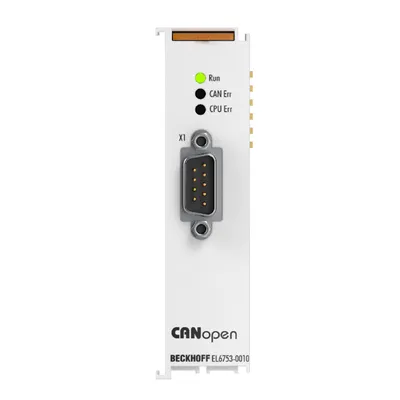

Beckhoff EL6753-0010 – EtherCAT Terminal, 1-channel communication interface, CANopen, slave
Beckhoff
EL6753-0010

EtherCAT Terminal, 1-channel communication interface, CANopen, slave

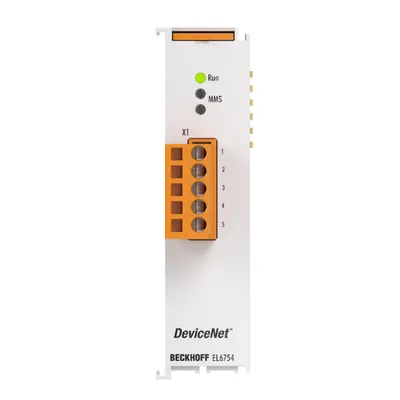

Beckhoff EL6754 – EtherCAT Terminal, 1-channel communication interface, DeviceNet®, master
Beckhoff
EL6754

EtherCAT Terminal, 1-channel communication interface, DeviceNet®, master

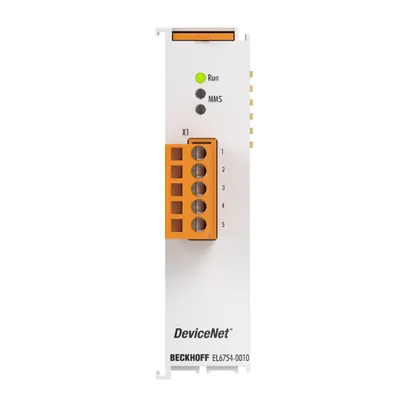

Beckhoff EL6754-0010 – EtherCAT Terminal, 1-channel communication interface, DeviceNet®, slave
Beckhoff
EL6754-0010

EtherCAT Terminal, 1-channel communication interface, DeviceNet®, slave

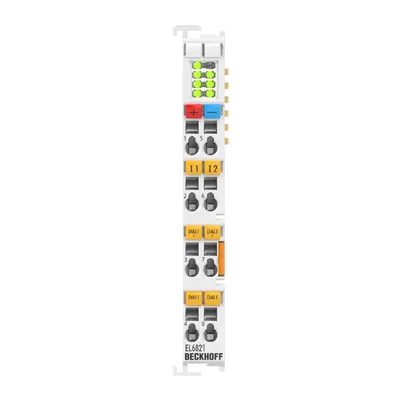

Beckhoff EL6821 – EtherCAT Terminal, 1-channel communication interface, DALI-2, master/power supply
Beckhoff
EL6821

EtherCAT Terminal, 1-channel communication interface, DALI-2, master/power supply

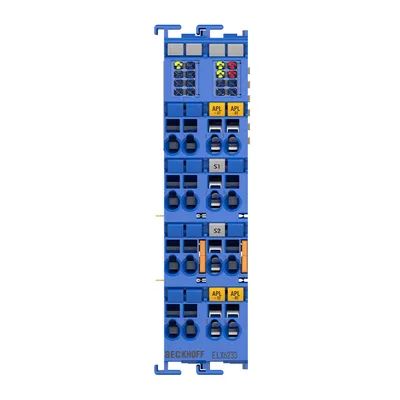

Beckhoff ELX6233 – EtherCAT Terminal, 2-channel communication interface, Ethernet-APL, Ex i
Beckhoff
ELX6233

EtherCAT Terminal, 2-channel communication interface, Ethernet-APL, Ex i

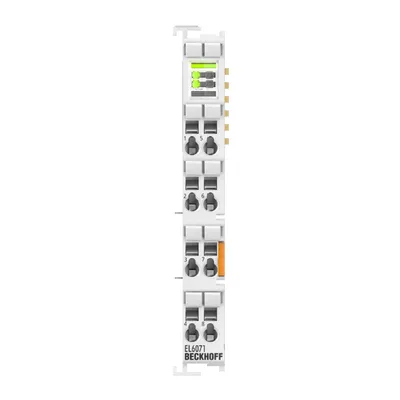

Beckhoff EL6071 – EtherCAT Terminal, license key for TwinCAT 3.1, 2nd generation
Beckhoff
EL6071

EtherCAT Terminal, license key for TwinCAT 3.1, 2nd generation

Compare EL6xxx | Communication

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNTechnologyCurrent consumption E-busWeightApprovals/markingsDimensions (W x H x D)
EL6752DeviceNet® master terminaltyp. 260 mAapprox. 70 gCE, CCC, UL, ATEX, IECEx24 mm x 100 mm x 52 mm
EL6751CANopen master/slave terminaltyp. 230 mAapprox. 70 gCE, CCC, UL, ATEX, IECEx, DNV24 mm x 100 mm x 52 mm
EL6731PROFIBUS master/slave terminaltyp. 200 mAapprox. 70 gCE, CCC, UL, ATEX, IECEx24 mm x 100 mm x 52 mm
EL6861D-sub, 9-pintyp. 170 mAapprox. 55 gCE, UL24 mm x 100 mm x 52 mm
EL6711-0010CC-Link slave terminal——CE, UL24 mm x 100 mm x 52 mm
EL6731-0010PROFIBUS slave terminaltyp. 200 mAapprox. 70 gCE, CCC, UL, ATEX, IECEx24 mm x 100 mm x 52 mm
EL6021-0021terminal contacttyp. 170 mAapprox. 55 gCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm
EL6631-0010PROFINET RTtyp. 400 mAapprox. 75 gCE, CCC, UL, ATEX, IECEx24 mm x 100 mm x 52 mm
EL6633PROFINET RTtyp. 400 mAapprox. 75 gCE, UL24 mm x 100 mm x 52 mm
EL6634PROFINET IRTtyp. 400 mAapprox. 75 gCE, UL24 mm x 100 mm x 52 mm
EL6653EtherNet/IP™ scanner terminaltyp. 400 mAapprox. 75 gCE, UL24 mm x 100 mm x 52 mm
EL6689—typ. 310 mAapprox. 75 gCE24 mm x 100 mm x 52 mm
EL6761powerline communicationtyp. 420 mAapprox. 90 gCE24 mm x 100 mm x 52 mm
EL6633-0010PROFINET RTtyp. 400 mAapprox. 75 gCE, UL24 mm x 100 mm x 52 mm
EL6653-0010EtherNet/IP™ adapter terminaltyp. 400 mAapprox. 75 gCE, UL24 mm x 100 mm x 52 mm
EL6733PROFIBUS master/slave terminal—approx. 70 gCE24 mm x 100 mm x 52 mm
EL6733-0010PROFIBUS slave terminal—approx. 70 gCE24 mm x 100 mm x 52 mm
EL6753CANopen master/slave terminal—approx. 70 gCE24 mm x 100 mm x 52 mm
EL6753-0010CANopen slave terminal—approx. 70 gCE24 mm x 100 mm x 52 mm
EL6754DeviceNet® master terminal—approx. 70 gCE, UL24 mm x 100 mm x 52 mm
EL6754-0010DeviceNet® slave terminal—approx. 70 gCE, UL24 mm x 100 mm x 52 mm
EL6821DALI-2typ. 80 mAapprox. 80 gCE12 mm x 100 mm x 68 mm
ELX6233Ethernet-APL—approx. 90 gCE, ATEX, IECEx24 mm x 100 mm x 68 mm
EL6071EtherCAT license key terminaltyp. 120 mAapprox. 50 gCE, UL12 mm x 100 mm x 68 mm

Common to all listed parts

Relative humidity95%, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Design formcompact terminal housing with signal LEDs
Installationon 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means ofdouble slot and key connection
