EL6xxx | Communication Parts

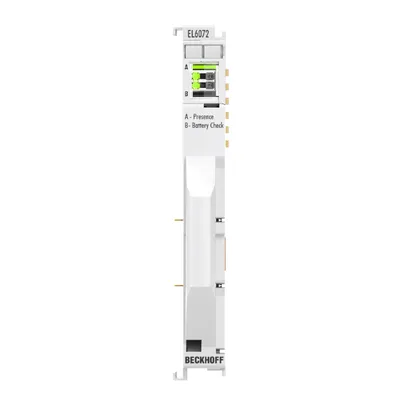

Beckhoff EL6072 – EtherCAT Terminal, license key for TwinCAT 3.1, 2nd generation, with RTC

Beckhoff

EtherCAT Terminal, license key for TwinCAT 3.1, 2nd generation, with RTC

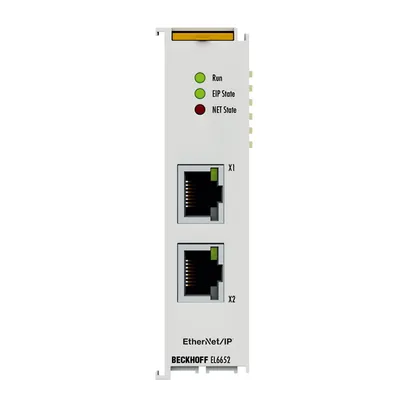

Beckhoff EL6652-0010 – EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, adapter

Beckhoff

EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, adapter

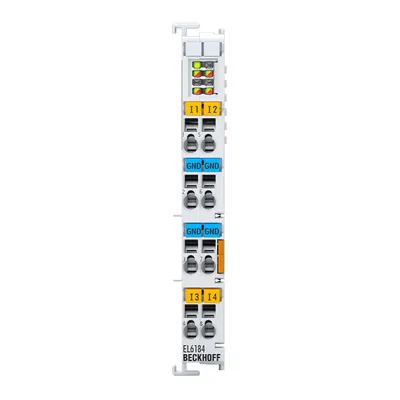

Beckhoff EL6184 – EtherCAT Terminal, 4-channel communication interface, HART, secondary master

Beckhoff

EtherCAT Terminal, 4-channel communication interface, HART, secondary master

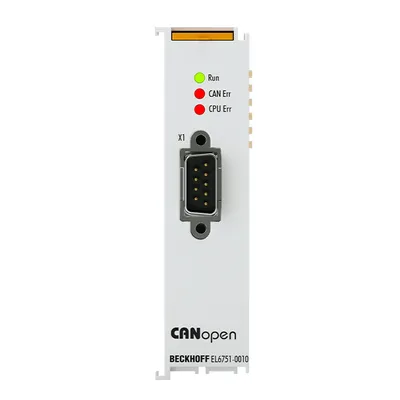

Beckhoff EL6751-0010 – EtherCAT Terminal, 1-channel communication interface, CANopen, slave

Beckhoff

EtherCAT Terminal, 1-channel communication interface, CANopen, slave

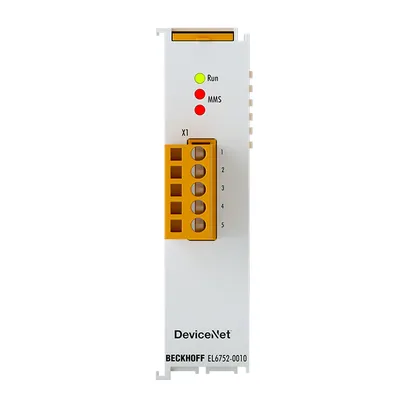

Beckhoff EL6752-0010 – EtherCAT Terminal, 1-channel communication interface, DeviceNet®, slave

Beckhoff

EtherCAT Terminal, 1-channel communication interface, DeviceNet®, slave

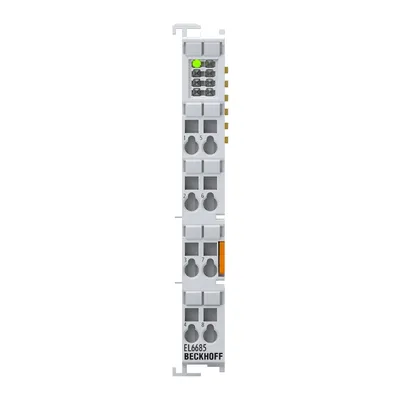

Beckhoff EL6685 – EtherCAT Terminal, reference clock, high-precision, distributed clocks

Beckhoff

EtherCAT Terminal, reference clock, high-precision, distributed clocks

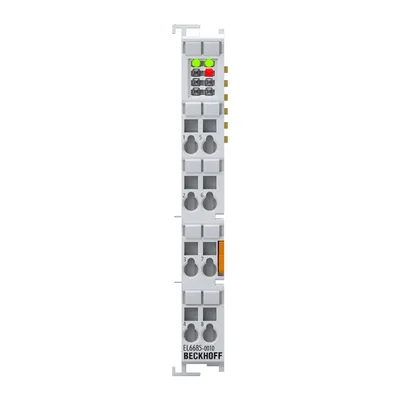

Beckhoff EL6685-0010 – EtherCAT Terminal, reference clock, high-precision, trimmable, distributed clocks

Beckhoff

EtherCAT Terminal, reference clock, high-precision, trimmable, distributed clocks

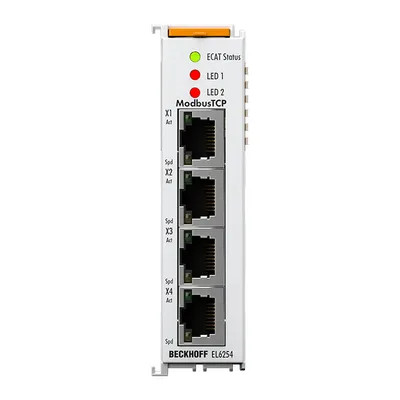

Beckhoff EL6254 – EtherCAT Terminal, 4-port communication interface, Modbus TCP, client/server

Beckhoff

EtherCAT Terminal, 4-port communication interface, Modbus TCP, client/server

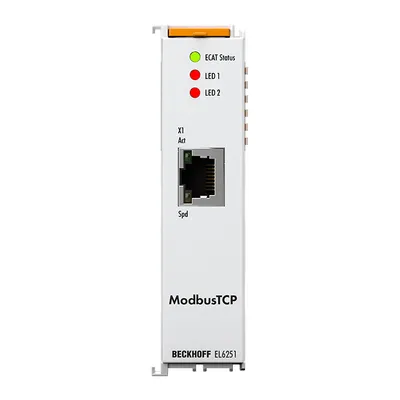

Beckhoff EL6251 – EtherCAT Terminal, 1-port communication interface, Modbus TCP, client/server

Beckhoff

EtherCAT Terminal, 1-port communication interface, Modbus TCP, client/server

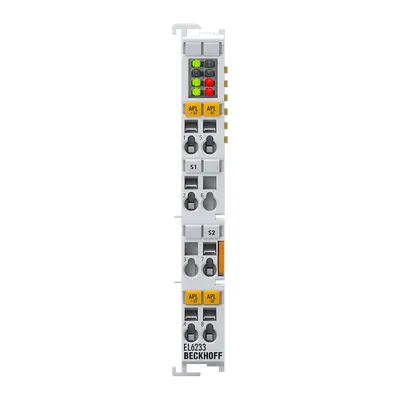

Beckhoff EL6233 – EtherCAT Terminal, 2-channel communication interface, Ethernet-APL

Beckhoff

EtherCAT Terminal, 2-channel communication interface, Ethernet-APL

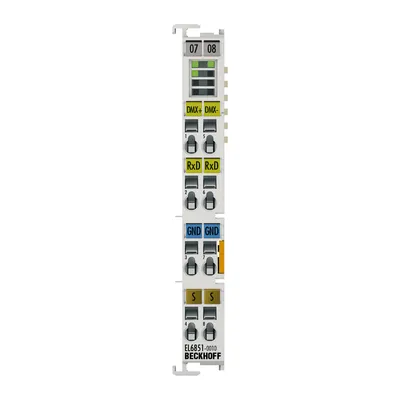

Beckhoff EL6851-0010 – EtherCAT Terminal, 1-channel communication interface, DMX, slave

Beckhoff

EtherCAT Terminal, 1-channel communication interface, DMX, slave

Compare EL6xxx | Communication

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Technology	Distributed clocks	Current consumption E-bus	Weight	Approvals/markings
EL6072	EtherCAT license key terminal	–	typ. 120 mA	approx. 50 g	CE
EL6652-0010	EtherNet/IP™ adapter terminal	—	typ. 400 mA	approx. 75 g	CE, UL
EL6184	HART (version 7)	—	typ. 70 mA	approx. 60 g	CE, UL, Ex, IECEx (in preparation)
EL6751-0010	CANopen slave terminal	—	typ. 230 mA	approx. 70 g	CE, CCC, UL, ATEX, IECEx, DNV
EL6752-0010	DeviceNet® slave terminal	–	typ. 260 mA	approx. 70 g	CE, CCC, UL, ATEX, IECEx
EL6685	reference oscillator	yes	typ. 90 mA	approx. 50 g	CE
EL6685-0010	reference oscillator	yes	—	approx. 50 g	CE
EL6254	Modbus TCP client/server	no	250 mA	—	CE
EL6251	Modbus TCP client/server	no	200 mA	approx. 65 g	CE
EL6233	Ethernet-APL	—	—	approx. 60 g	CE, ATEX, IECEx (in preparation)
EL6851-0010	DMX slave terminal	–	typ. 130 mA	approx. 55 g	CE, CCC, UL, ATEX, IECEx

Common to all listed parts

Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
