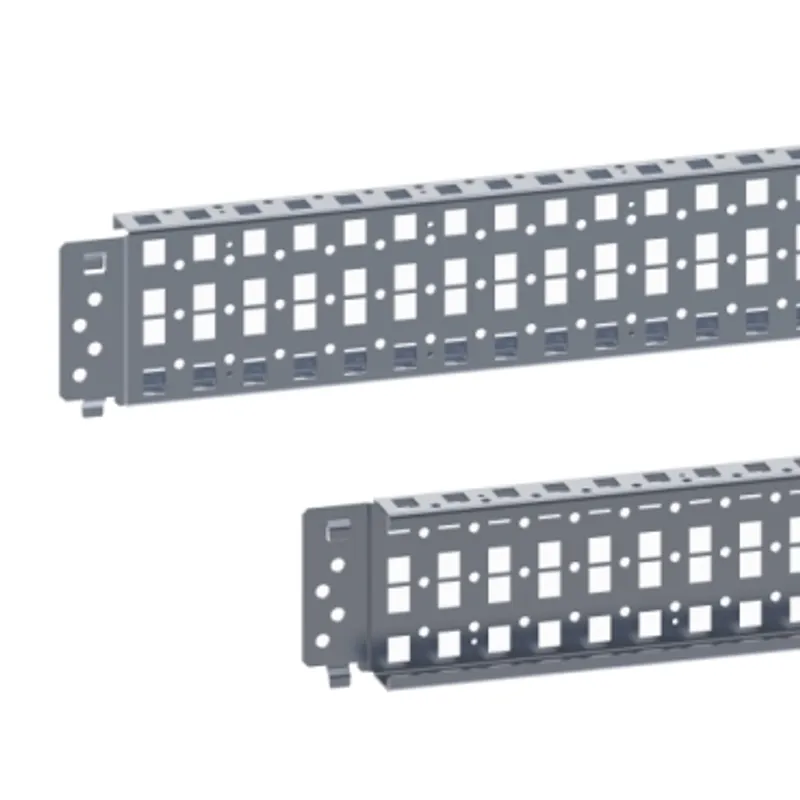

Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1200mm, 3 rows, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.09 kg |
Shipping & availability
When can NSYSQCR90120 be shipped?
NSYSQCR90120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSQCR90120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSQCR90120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSQCR90120, subject to availability and destination.
Quick cross rails made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures Can be fixed on structure of enclosure and between cross rails On SM enclosures fixing by means of adaptation profiles The nominal height is 1200mm and useful height is 1110mm The width is 90mm Laterally adjustable with a pitch of 25mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Quick cross rails |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | On structure of enclosure, Between cross rails |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws, Clipped - on structure location |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 3 |
| Maximum load | 70 kg |
| Height | Nominal: 1200 mm, Useful: 1110 mm |
| Width | 90 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 118.500 cm |
| Package 1 Weight | 3.088 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 167.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
