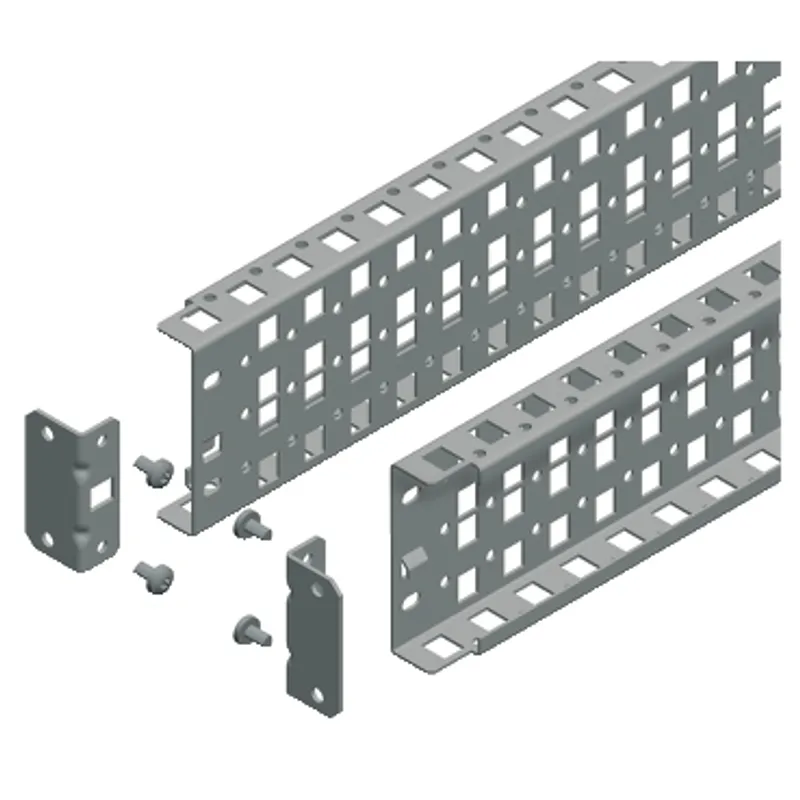

Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1800mm, 3 rows, set of 2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 4.71 kg |
Shipping & availability
When can NSYSUCR90180 be shipped?
NSYSUCR90180 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR90180 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR90180 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR90180, subject to availability and destination.
Universal cross rail made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures with height 1800mm Can be fixed on structure of enclosure and between cross rails On SM enclosures fixing by means of adaptation profiles The nominal height is 1800mm and useful height is 1707mm The width is 90mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 1800 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | On structure of enclosure, Between cross rails |
| Mounting support | Adaptation profile, on SM enclosures |
| Installation direction | Vertical |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 3 |
| Height | Nominal: 1800 mm, Useful: 1707 mm |
| Width | 90 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 171.500 cm |
| Package 1 Weight | 4.710 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 200.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 503.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
