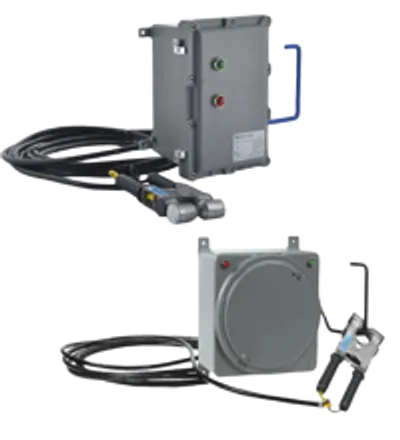

Electronic Grounding System Parts
Compare Electronic Grounding System
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Enclosure cover | Cover fixing | Flamepath grease | Mass |
|---|---|---|---|---|---|
| EJBX6A*DMT* | T190841 | detachable , optional hinges | stainless steel socket cap head screws | Greasil MS4 or NEVER SEEZ Marine Grade | approx. 23 kg |
| GUBX3L*DMT* | T190842 | threaded round cover | flamepath thread | petroleum jelly | approx. 96 kg |
| GUB3L*DMT* | T152883 | threaded round cover | flamepath thread | petroleum jelly | approx. 25 kg |
| EJB6A*DMT* | T180157 | detachable , optional hinges | stainless steel socket cap head screws | Greasil MS4 or NEVER SEEZ Marine Grade | approx. 13 kg |
| DMT* | T164873 | see data table | see data table | see data table | see data table |
Common to all listed parts
| Operating voltage | 230 V AC , optional 110 V AC |
| Function | elimination of electrostatic charges |
| Lens color | red and green |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Cover seal | none, O-ring for IP66/67 |
| Degree of protection | IP65 , Enclosure IP66 (IP66/IP67 with O-ring) |
| Cable entry | face B |
