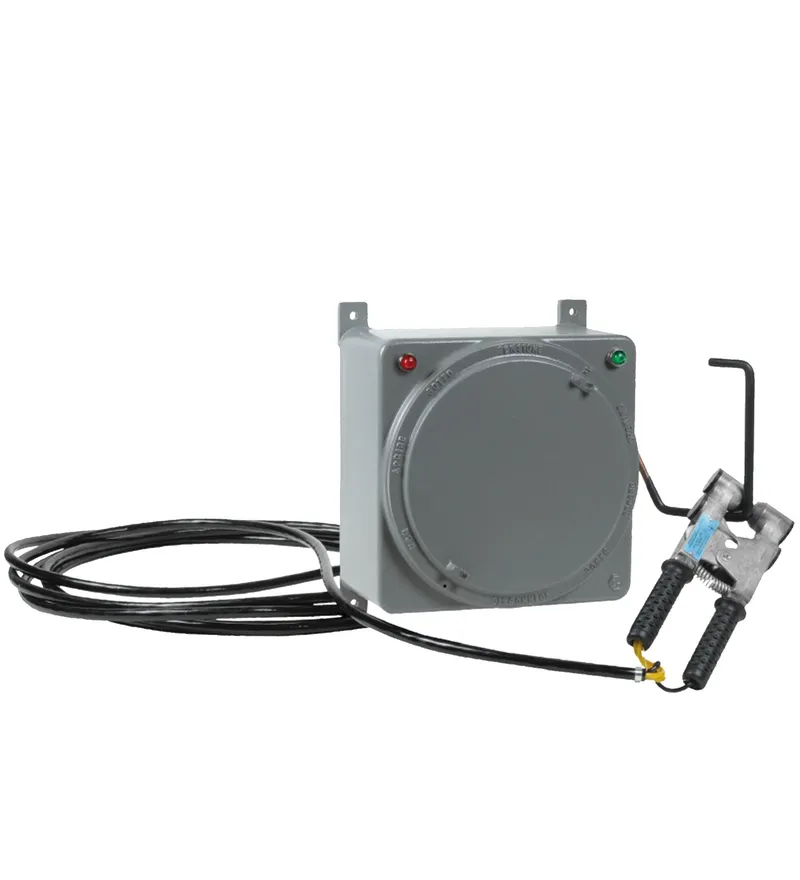

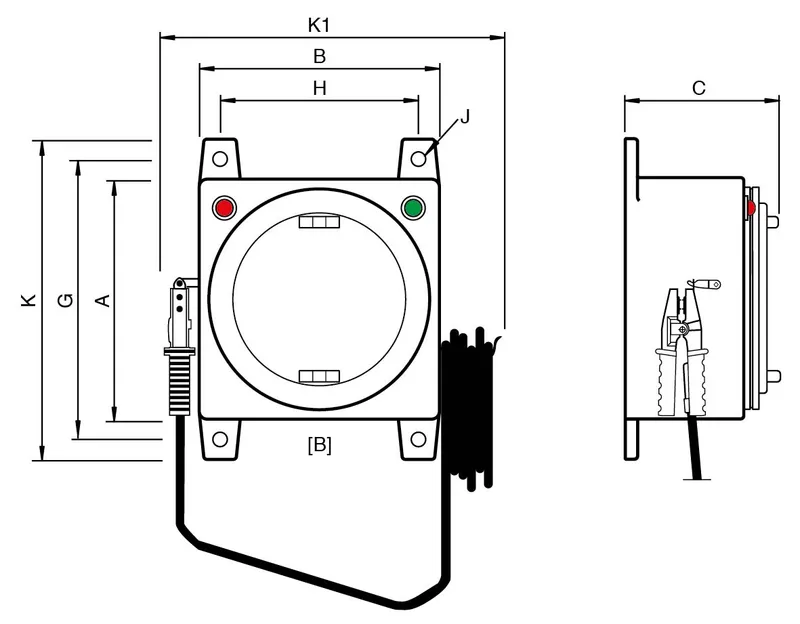

Pepperl Fuchs GUB3L*DMT*

Electronic Earthing System (Resistive and Capacitive). Elimination of electrostatic charges, Copper-free aluminum enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIC, Degree of protection: IP 65, Enclosure: aluminum alloy. Operating voltage: 230 V AC , optional 110 V AC. Function: elimination of electrostatic charges. Lens colorred and greenOperator actionCable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles: . Lens color: red and green. Operator action: Cable: hydrocarbon-resistant, 3x 3 mm2, length 8 m. Other lengths on request. Connection clamp: Aluminum with phosphor bronze contacts, isolating thermoplastic handles. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: threaded round cover. Cover fixing: flamepath thread. Cover seal: none, O-ring for IP66/67. Flamepath grease: petroleum jelly. Degree of protection: IP65 , Enclosure IP66 (IP66/IP67 with O-ring). Cable entry: face B. Cable entry face B: . M25 quantity2M25 typeNPT 3/4''M25 infoas standard, other on request: . M25 quantity: 2. M25 type: NPT 3/4''. M25 info: as standard, other on request. Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7005 (grey). O-Ring: silicone. Mass: approx. 25 kg. Dimensions: values might differ slightly due to casting and manufacturing tolerances. External dimension (A)360 mmExternal dimension (B)360 mmExternal dimension (C)245 mmMounting holes distance (G)395 mmMounting holes distance (H)318 mmMounting holes diameter (J)10 mmNumber of mounting brackets4Maximum external dimension (K)430 mmMaximum external dimension (K1)510 mm: . External dimension (A): 360 mm. External dimension (B): 360 mm. External dimension (C): 245 mm. Mounting holes distance (G): 395 mm. Mounting holes distance (H): 318 mm. Mounting holes diameter (J): 10 mm. Number of mounting brackets: 4. Maximum external dimension (K): 430 mm. Maximum external dimension (K1): 510 mm. Grounding: M6 external grounding points. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). EU-type examination certificate: INERIS 14 ATEX 0035X. Marking II 2 GD Ex db [ia Ga] IIC T6 Gb, II 2 GD Ex tb [iaD] IIIC T85°C Db: . Marking: II 2 GD Ex db [ia Ga] IIC T6 Gb, II 2 GD Ex tb [iaD] IIIC T85°C Db. Degree of protection: EN 60529. CE marking: 0080 or 0102, see type label. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Specifications
